Home > Molex Connector Wire Harness > Micro-Fit 3.0 Wire Harness

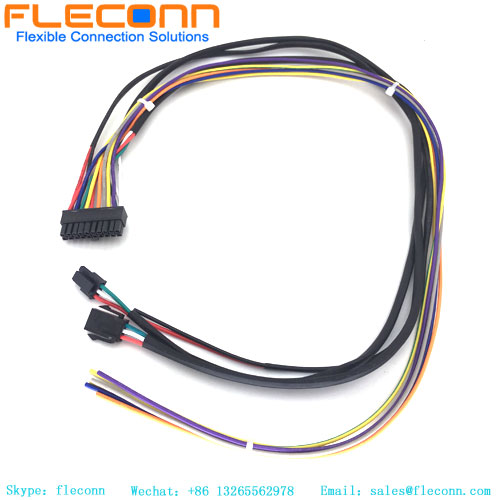

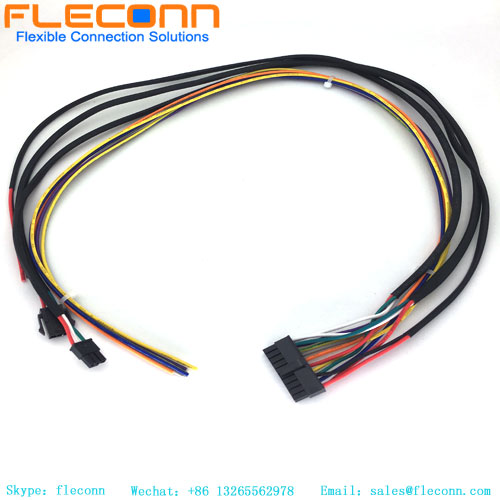

Custom 43025-2000 3.0mm pitch Connector wire harness
Custom 43025-2000 3.0mm pitch Connector wire harness Custom 43025-2000 3.0mm pitch Connector wire harness Custom 43025-2000 3.0mm pitch Connector wire harness Custom 43025-2000 3.0mm pitch Connector wire harness Custom 43025-2000 3.0mm pitch Connector wire harness

Custom 43025-2000 3.0mm pitch Connector wire harness

Item No.: MX-20P-3.0PH-UL1007-1M
Product Name: Micro-Fit 3.0 Wire Harness
Connector Pitch：3.0MM
Connector : Molex 43025-2000, 2/4/6/8/10/11/12/14/16/18/20/22/24 pin
Crimp Terminal: 43031-0001
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 3.00mm
Request Quote
Description Review
Description

Custom 43025-2000 3.0mm pitch Connector wire harness Description



FLECONN, as an overmolded cable assemblies and molded wire harness manufacturer, can custom 43025 series molex microfit 3.0 cable with micro-fit 3.0 connector for power transmision. There are 2 4 6 8 10 12 14 16 18 20 22 24 pin Molex Micro-Fit 3.0 Cable receptacle housing such as manufacturer part number 43025-0200, 43025-0400, 43025-0600, 43025-0800, 43025-1000, 43025-1200, 43025-1400, 43025-1600, 43025-1800, 43025-2000, 43025-2200, 43025-2400 available.

Detail description for Custom 43025-2000 3.0mm pitch Connector wire harness

Prouduct Name Molex Micro-Fit 3.0 Series 43025-2000 20 Pin Connector Cable Wire Haeness
Equivalent to Molex Part No.  430252000
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.

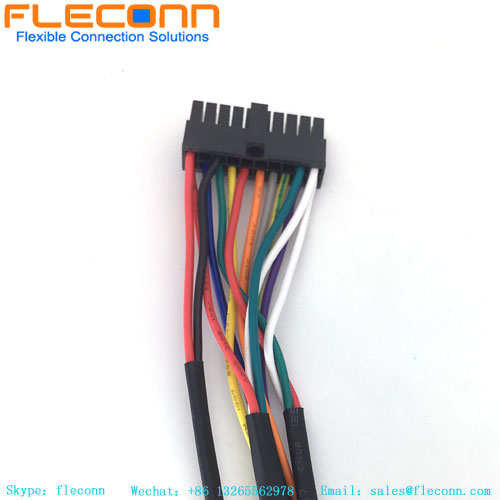

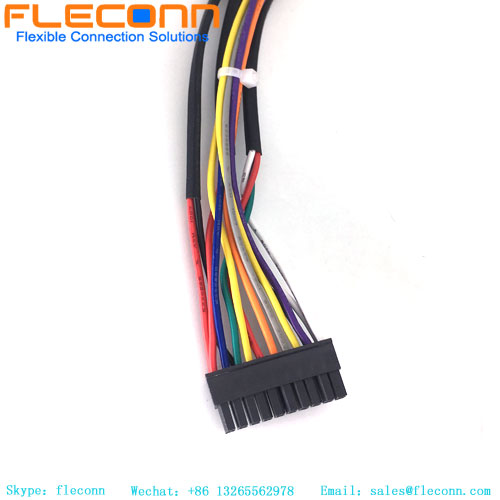

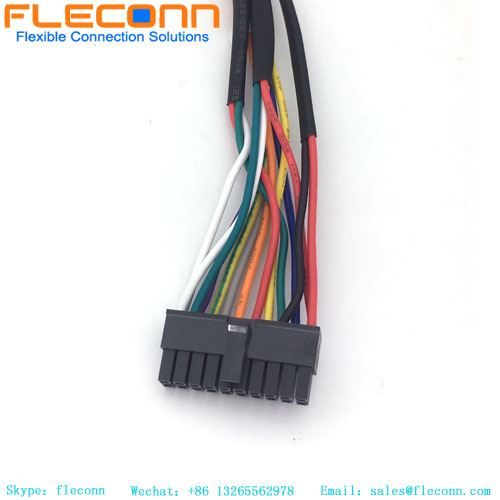

Technique characters 1. Connector housing: 43025-2000 Micro-Fit 3.0 Receptacle Housing, Dual Row, 20 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 43031-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1571 Round cable/ UL1007 Parallel cable
10. Wiring diagrm: defined by customers
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag


























Custom 43025-2000 3.0mm pitch Connector wire harness

Micro-fit 3.0 43025 Overmolded Cable Assembly

Molex Micro Fit 3.0 Cable 20 Position Wire Harness

MicroFit 3.0 Cable 43025-2000 Series Wire Harness

Molex 3.0 Pitch Female 20Pin Cable Assembly

Micro-Fit 3.0 Female wiring Cable Assembly

Molex Connector Wire Harness

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
