Molex 4.2mm Pitch 469930611 Connector Overmolded Cable
Molex 4.2mm Pitch 469930611 Connector Overmolded Cable Molex 4.2mm Pitch 469930611 Connector Overmolded Cable Molex 4.2mm Pitch 469930611 Connector Overmolded Cable Molex 4.2mm Pitch 469930611 Connector Overmolded Cable Molex 4.2mm Pitch 469930611 Connector Overmolded Cable

Molex 4.2mm Pitch 469930611 Connector Overmolded Cable

Item No.: MX-6P-4.2PH-46993-PVC-OM-0.5M
Product Name: Mini-Fit 4.2 Wire Harness
Connector Pitch：4.2MM
Connector : Molex 469930611, 2/4/6/8/10/12/14/16/18/20 pin
Crimp Terminal: 39000048
Wire: UL2464 6*22AWG
Request Quote
Description Review
Description

Molex 4.2mm Pitch 469920610 Connector CableMolex 4.2mm Pitch 469930611 Connector Overmolded Cable Product Description


FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Detail description for Molex 4.2mm Pitch 469920610 Connector Cable

Prouduct Name  Molex Overmolding Mini-Fit 39014061 Cable Molding Cable
Equivalent to Molex Part No.  469930610，469930611，469930620，469930630，4699306140，469930650
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 469930611 Micro-Fit 4.2 Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 39000048 Micro-Fit 4.2 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL2468 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag

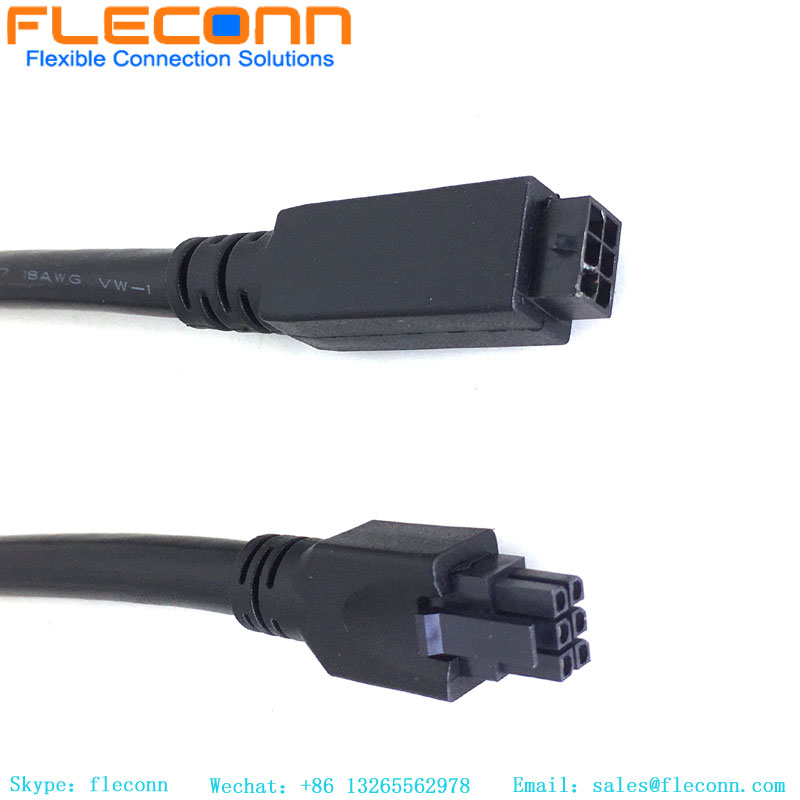

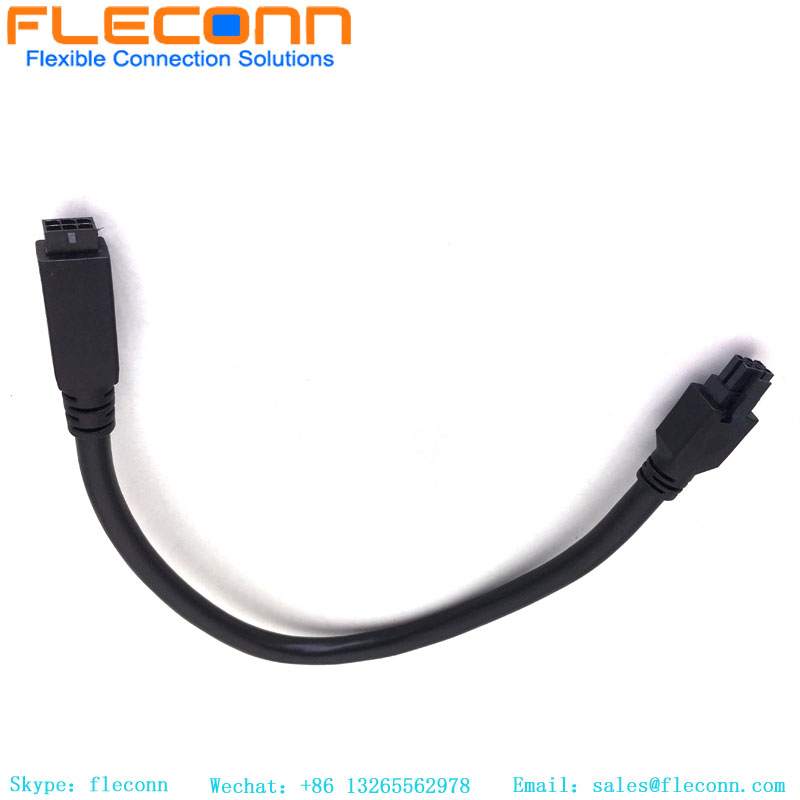

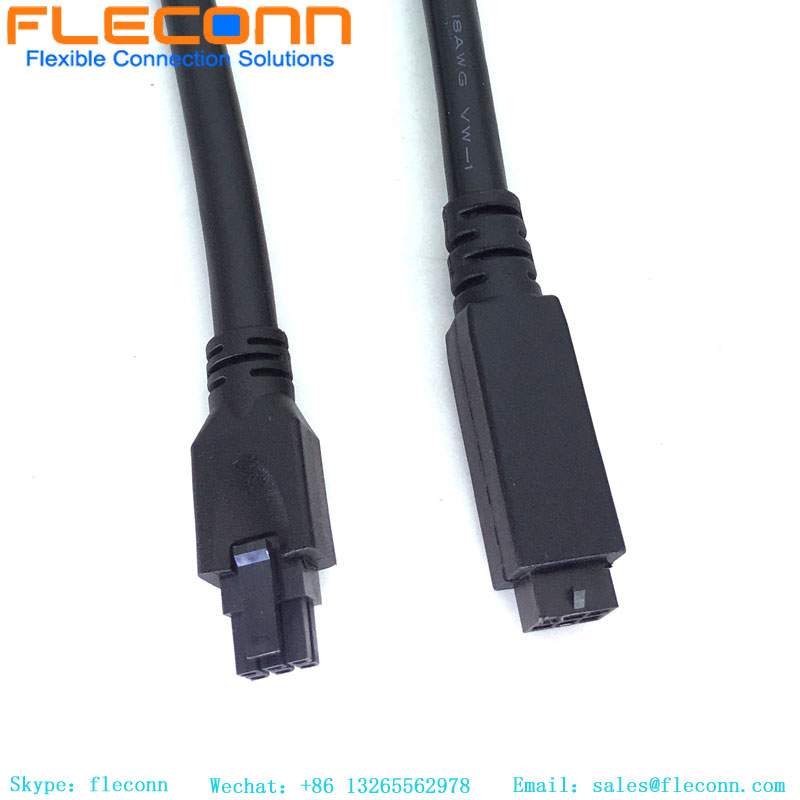

Molex 4.2mm Pitch 469930611 Connector Overmolded Cable

Molex 4.2mm Pitch 469930611 Connector Overmolded Cable

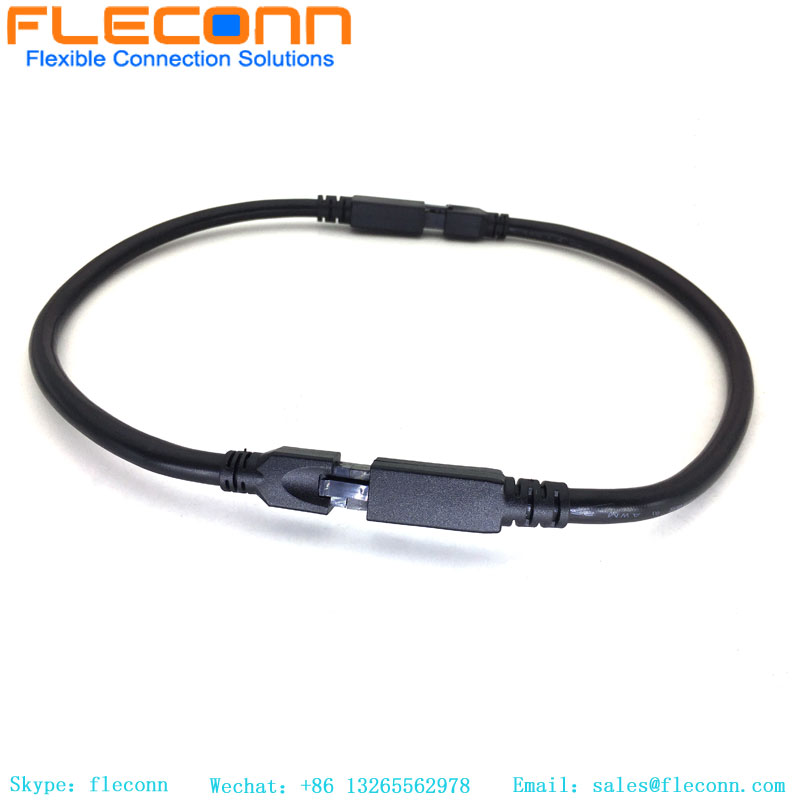

Molex 4.2mm Pitch Male To Female Connector Cable

Molex Male To Female Overmolded Cable

Molex 4.2mm Pitch 469920610 Connector Cable

Molex 4.2mm Pitch Overmolded Cable

Overmolded Connector Cable Harnesses

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
