Home > M5 M8 M12 M16 Connector & Cable Assembly > M12 Cable-3 4 5 6 8 12 17 Pin Male and Female Connector Cable > M12 X-coded Connector Cable

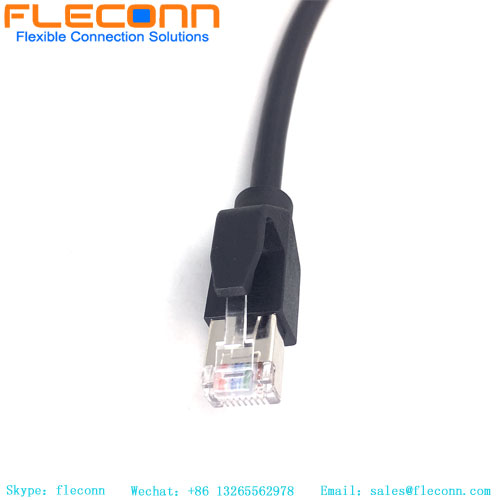

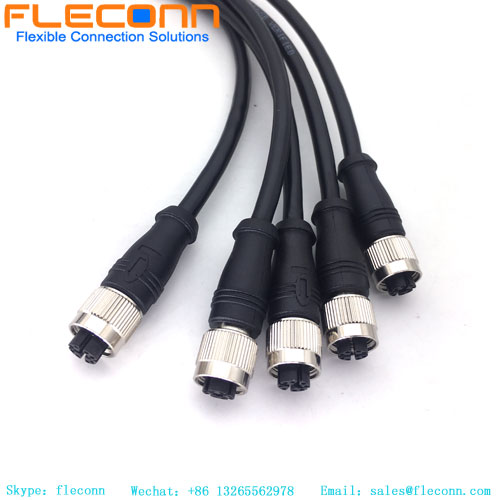

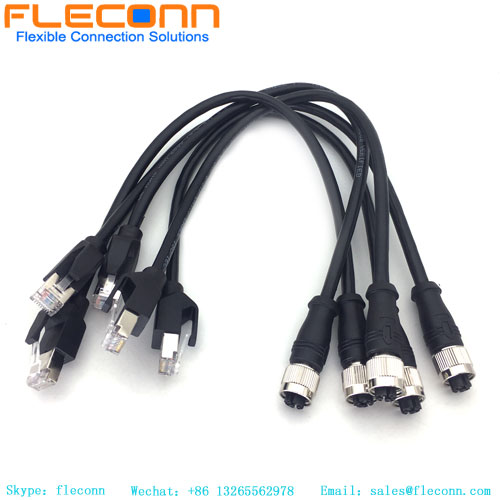

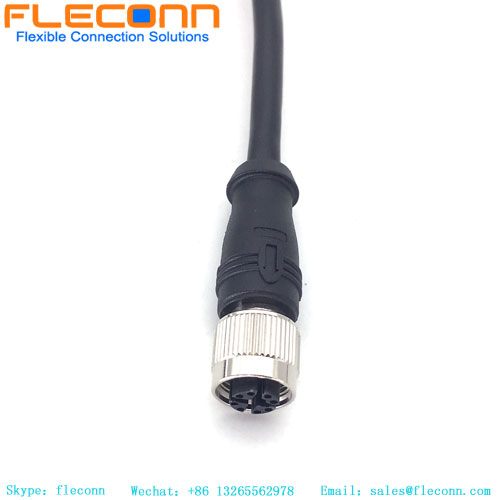

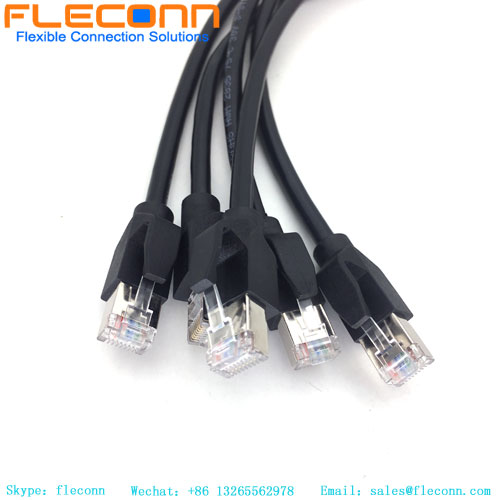

M12 X-Coded Female To Rj45 Cable
M12 X-Coded Female To Rj45 Cable M12 X-Coded Female To Rj45 Cable M12 X-Coded Female To Rj45 Cable M12 X-Coded Female To Rj45 Cable M12 X-Coded Female To Rj45 Cable

M12 X-Coded Female To Rj45 Cable

Item No.: M12-AM-X-RJ45-08P-1M
FLECONN can supply high cost-performance M12 X-Coded Female To Rj45 Ethernet Cable
Product series: M12 Ethernet Cable
Connector code: X-code
Gender: Female
Waterproof grade: IP67
Contact number: 8 contacts
Plug Guide: Straight
Request Quote
Description Review
Description

M12 Female To Rj45 Cable Product Description



FLECONN can provide Customizable M12 X-Coded Female To Rj45 Ethernet Cable and Patch Cord Network LAN Cable Cat5 Cat6a Cat7 0.5m 1m 1.5m 2m 2.5m 3m Network Cable.


M12 Female To Rj45 Cable product parameters



Product series: M12 Ethernet Cable Connector Gender: Female
Connector code: X type Connector core number: 8Pin
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 0.5A Connector conductor: copper gold plated
Rated voltage: 48V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M12 Female To Rj45 Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

M12 Female To Rj45 Cable
M12 Female To Rj45 Cable

M12 8 Pin X Coded Female To Rj45 Ethernet Cable
M12 Female To Rj45 Cable

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
