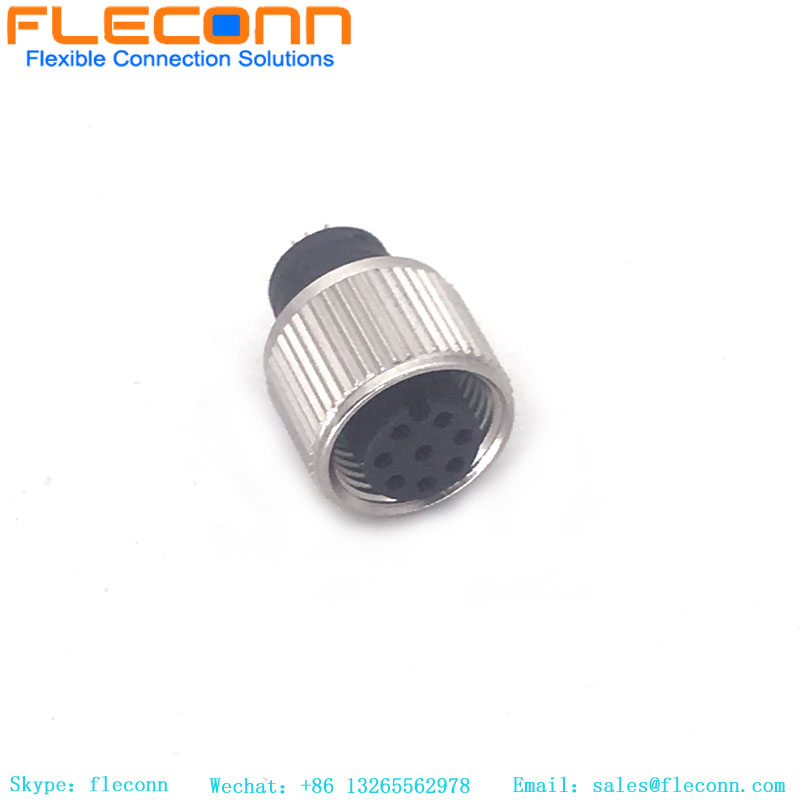

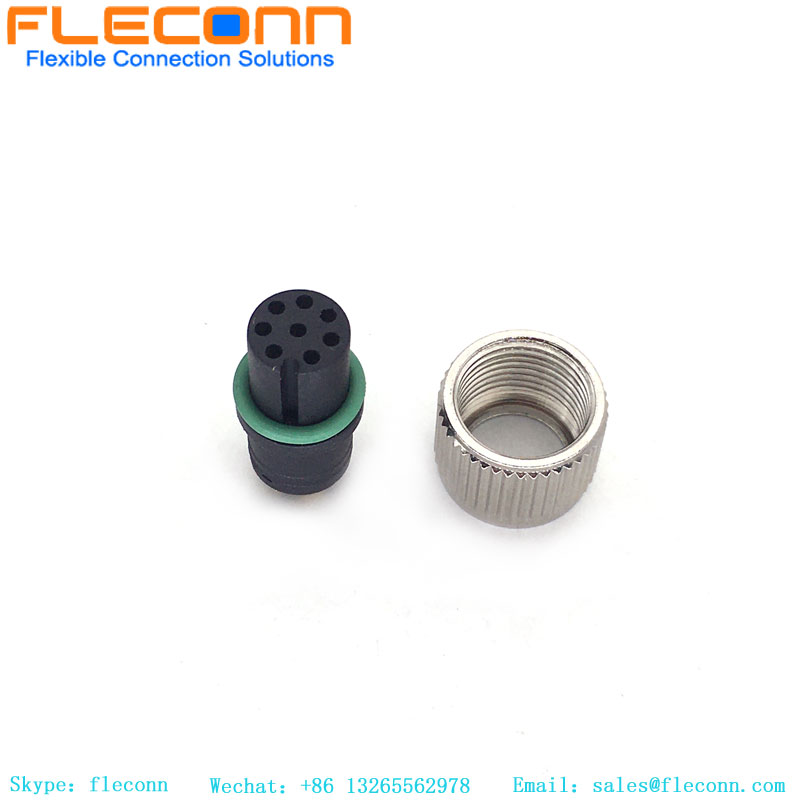

M12 Female Molded Cable Connector

M12 Female Molded Cable Connector

M12 Female Molded Cable Connector

M12 Female Molded Cable Connector

M12 Female Molded Cable Connector

M12 Female Molded Cable Connector

Description Review

Description

M12 Female Molded Cable Connector

M12 A-Coded 8 Pin Molded Connector

Product Overview

The Fleconn M12 Female Molded Cable Connector is designed for signal and data transmission in industrial automation, sensors, and control systems. With IP67 waterproof protection and durable molded construction, it ensures reliable connectivity in harsh environments.

Main Features

Connector Type: M12 A-Coded 8 Pin Molded Connector
Application: Industrial signal and data transmission
Protection: IP67 waterproof and dustproof
Durable molded housing for long service life
Secure locking system for stable connections

M12 Female Molded Cable Connector Technical Data

Technical data
parameter category	parameter name	parameter data
Mechanical and Electrical	Reference standard	IEC 61076-2-106
	Rated current	2A
	Rated voltage	30V
	Impulse voltage	600V
	Contact resistance	≤5mΩ
	Insulation resistance	≥100MΩ
	EMC Shielding	Shielded
	Locking system	M12 × 1.0mm screw
	Tightening torque	Recommended : 1.0 Nm Max : 1.2 Nm
Material	Terminal material	Phosphor bronze
	Contact plating	Au (Gold)
	Insert	PA66+GF, Black
	Overmold	TPU, Black
	Screw nut	Brass, CNC
	Screw nut plating	Nickel plated
	O-ring	FKM
Cable	UL AWM style	UL2464
	Conductor material	Stranded Tinned Copper
	Conductor cross-section	22AWG*8C
	Wire colors	Black, Green, White, Red, yellow, orange, blue, brown
	Sheath/insulation material	PVC, black
	Outer diameter	Ø6.4 ± 0.2mm
	Cable length	1000mm ±50 (Including Connecto)
Environmental	Rated temperature	Static : -40° ~ 80℃ Dynamic : -25° ~ 80℃
	Protection degree	IP67/ IP68
	Environmental Compliance	ROHS
	Pollution degree	3

Applications

Suitable for industrial automation, sensors, actuators, robotics, and machine vision systems requiring stable and efficient signal transmission.

Why Choose Fleconn?

Fleconn provides high-quality industrial connector solutions with strict manufacturing standards, premium materials, and customizable options to meet diverse needs.
