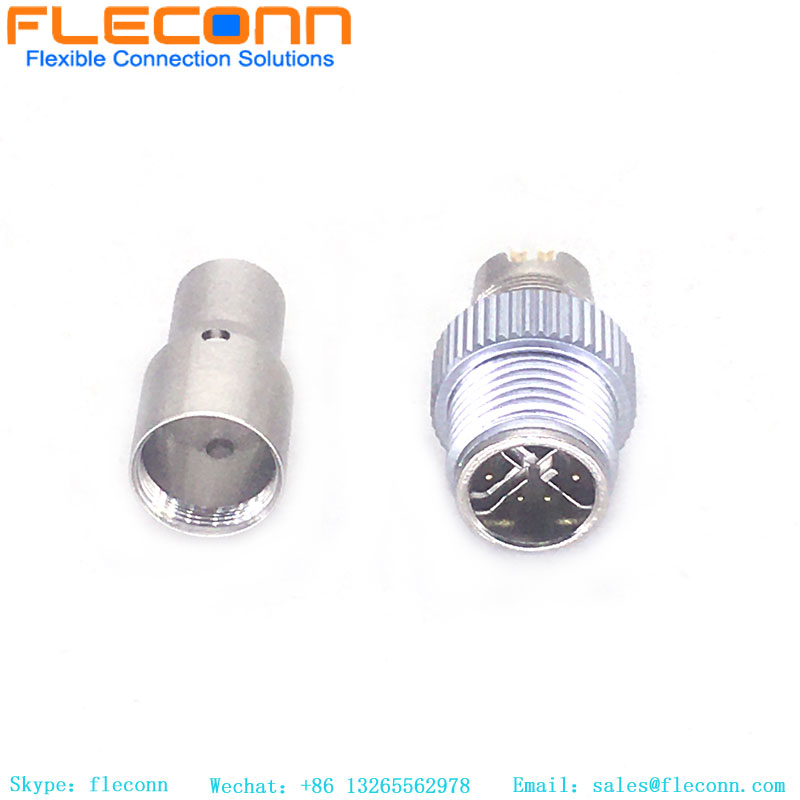

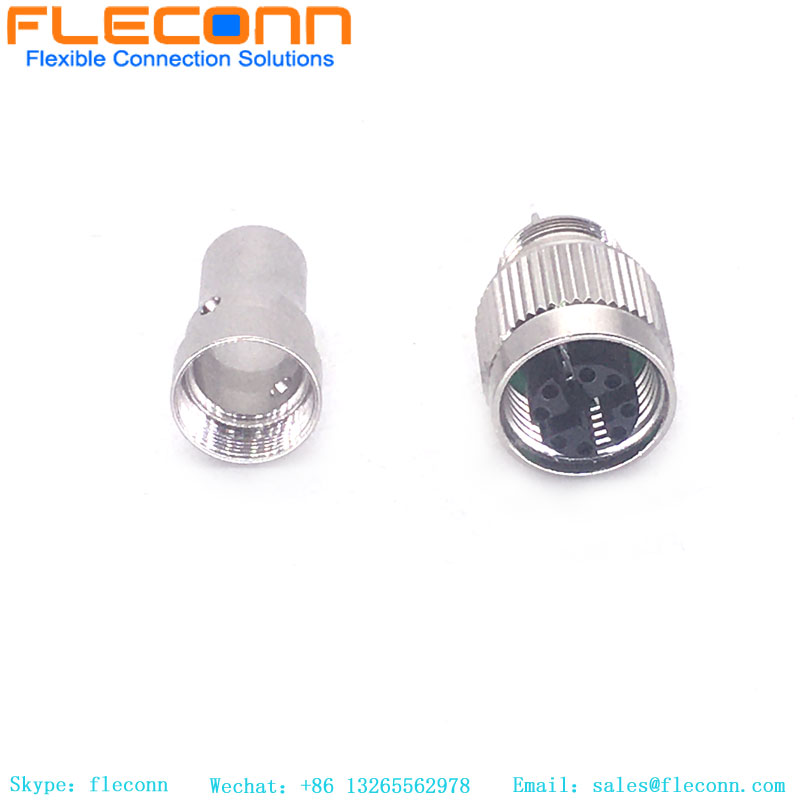

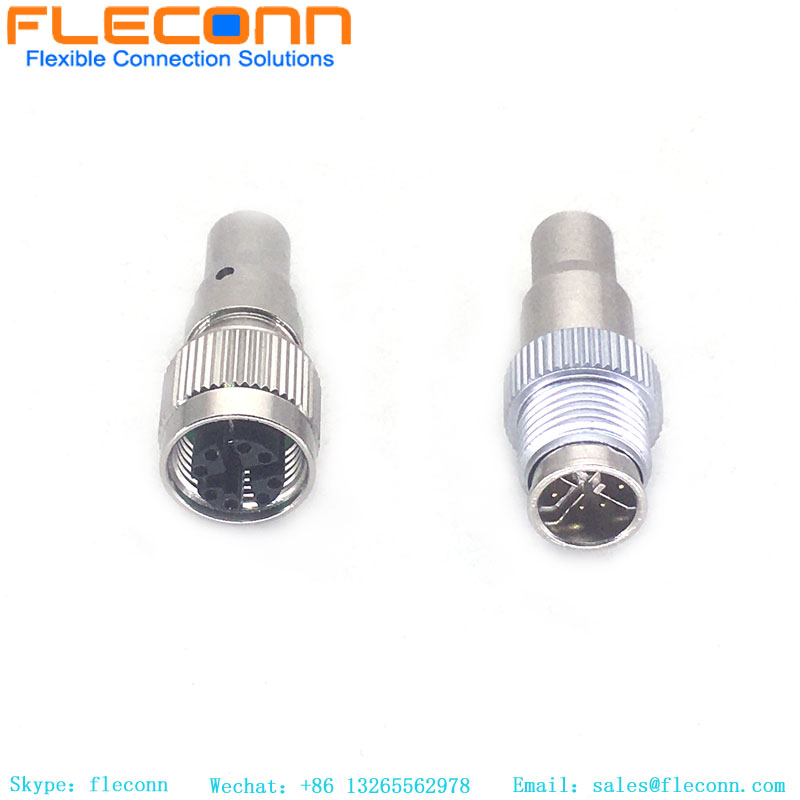

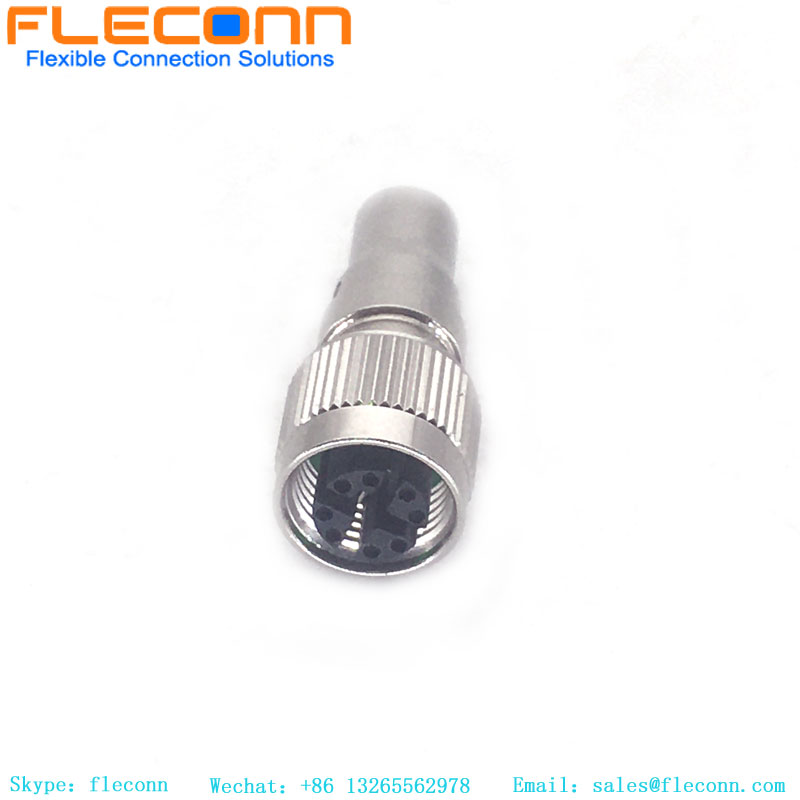

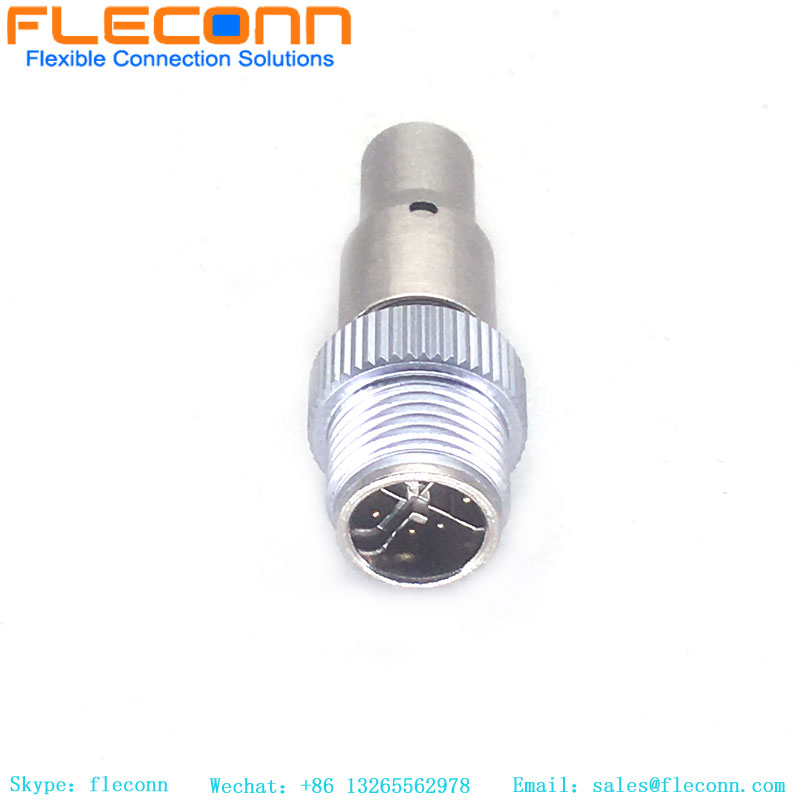

M12 8 Pin X-Coded Male Molded Connector
M12 8 Pin X-Coded Male Molded Connector M12 8 Pin X-Coded Male Molded Connector M12 8 Pin X-Coded Male Molded Connector M12 8 Pin X-Coded Male Molded Connector M12 8 Pin X-Coded Male Molded Connector

M12 8 Pin X-Coded Male Molded Connector

Item No.: 00864
Product series: M12 Molded Connector
Connector code: X type
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 8Pin
Plug Guide: Straight
Request Quote
Description Review
Description

M12 8 Pin X-Coded Male Molded Connector

M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector

M12 8 Pin X-Coded Male Molded Connector

The M12 8 Pin X-Coded Male Molded Connector is designed for high-speed data transmission up to 10 Gbps in industrial Ethernet and communication systems. With its robust overmolded construction, X-coding design, and IP67 protection, it ensures reliable performance in harsh factory and outdoor environments.

Product Features

  • Standard M12 X-coding, 8-pin male connector
  • Supports Cat6A Ethernet transmission up to 10 Gbps
  • Overmolded cable with PUR/PVC jacket, resistant to oil and vibration
  • IP67 waterproof and dustproof protection
  • Gold-plated contacts for stable and low-loss signal transmission
  • Custom cable length and specifications available

Applications

    • Industrial Ethernet communication
    • Factory automation and robotics
    • Machine vision and control systems
    • Outdoor communication and network devices

    M12 8 Pin X-Coded Male Molded Connector Technical Data

    Technical data
    parameter category parameter name parameter data
    Mechanical and Electrical Reference standard IEC 61076-2-101
    Rated current 0.5A
    Rated voltage 50V
    Impulse voltage 100V
    Contact resistance ≤5mΩ
    Insulation resistance ≥10MΩ
    EMC Shielding Full shielding
    Locking system M12 × 1.0mm screw
    Tightening torque Recommended: 1.0 Nm
    Max: 1.2 Nm
    Material Terminal material Phosphor bronze
    Contact plating Au (Gold)
    Insert PA66+GF, Black
    Overmold TPU, Black
    Screw nut Brass, CNC
    Screw nut plating Nickel plated
    O-ring FKM
    Cable UL AWM style CAT 6A
    Conductor material Stranded Tinned Copper
    Conductor cross-section 26AWG*8P
    Wire colors White-Orange/Orange, White-Green/Green, White-Blue/Blue, White-Brown/Brown
    Sheath/insulation material PVC or PUR, black
    Outer diameter Ø6.2 ± 0.2mm
    Cable length 1000mm ±50 (Including Connector)
    Environmental Rated temperature Static: -40° ~ 80℃
    Dynamic: -25° ~ 80℃
    Protection degree IP67
    Environmental Compliance ROHS
    Pollution degree 3
