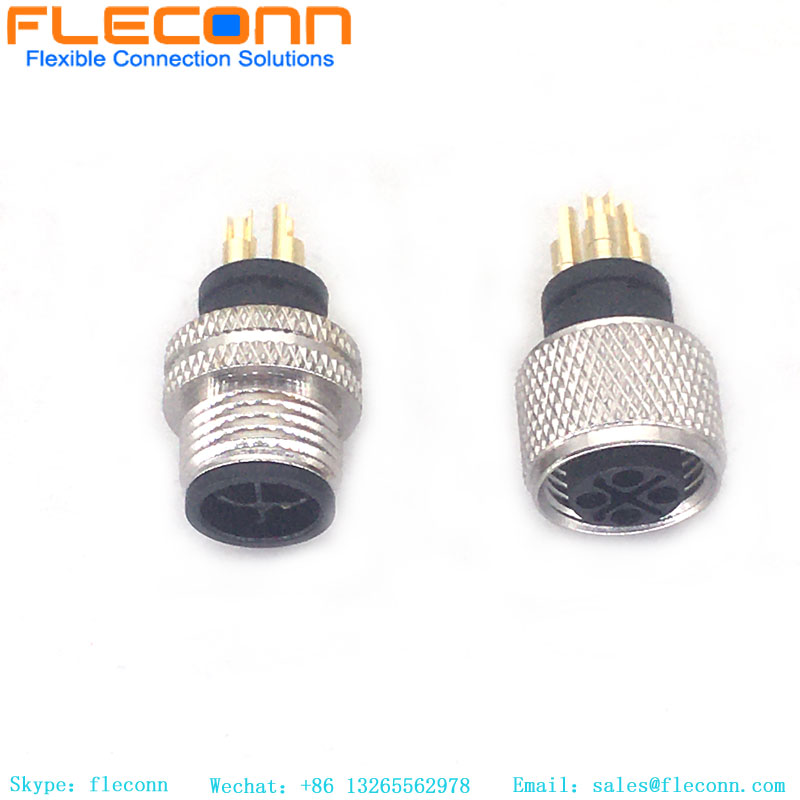

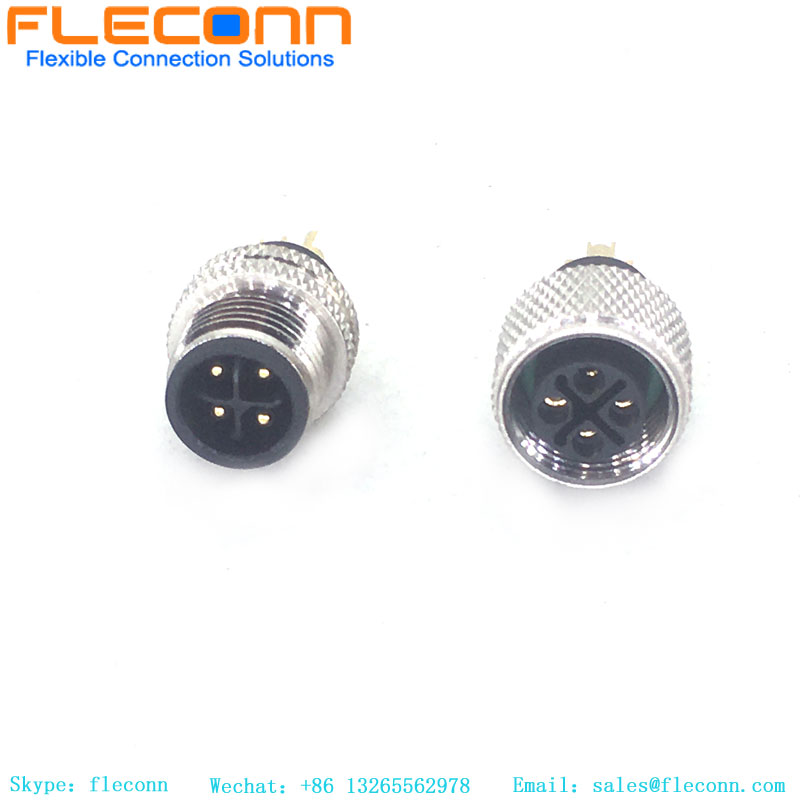

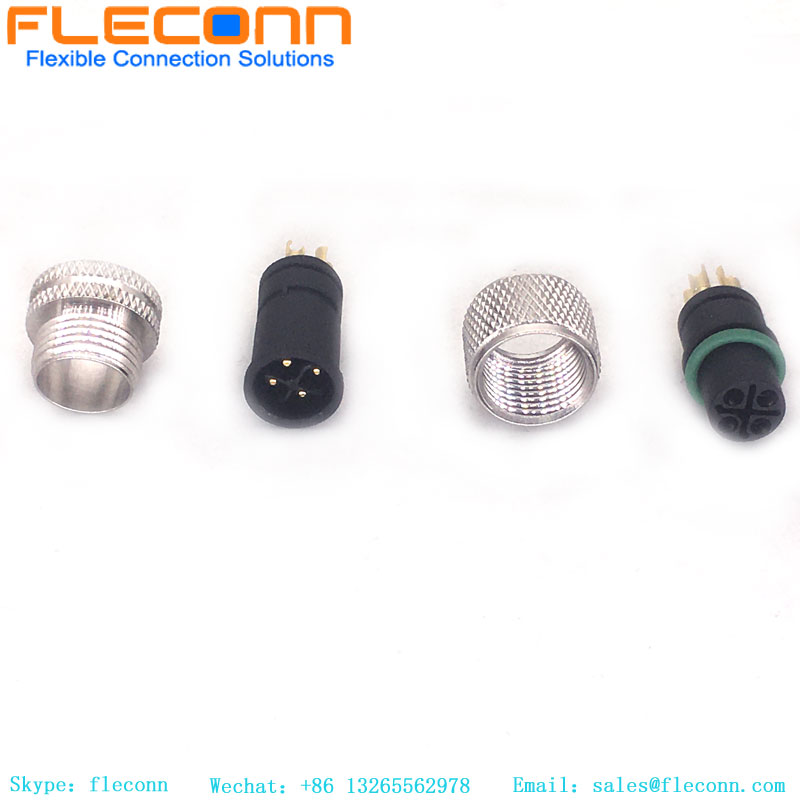

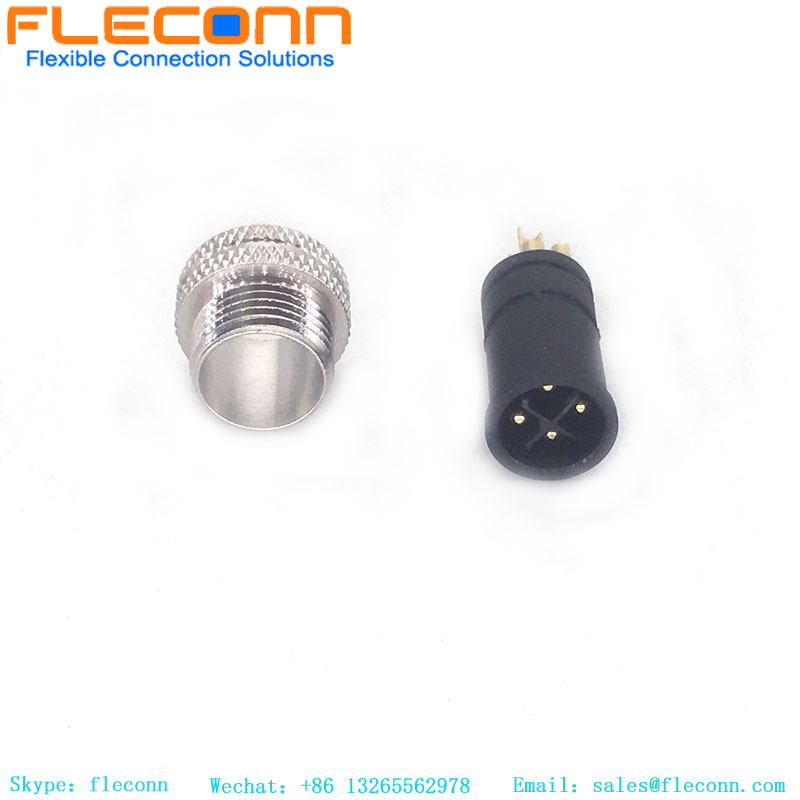

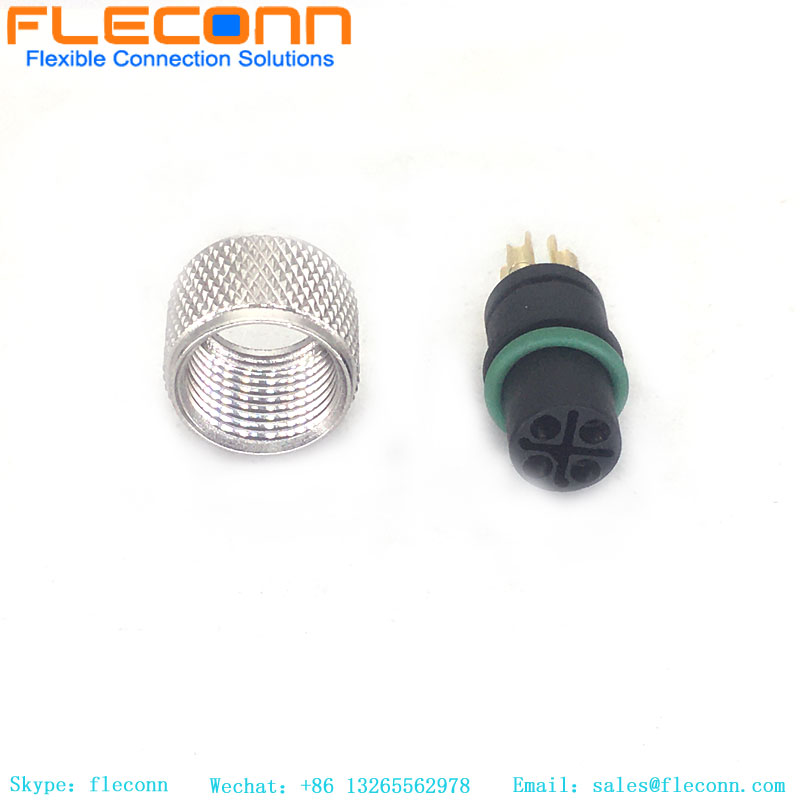

M12 4 Pin S-Code Cable Molded Connector

M12 4 Pin S-Code Cable Molded Connector

M12 4 Pin S-Code Cable Molded Connector

M12 4 Pin S-Code Cable Molded Connector

M12 4 Pin S-Code Cable Molded Connector

M12 4 Pin S-Code Cable Molded Connector

Description Review

Description

M12 4 Pin S-Code Cable Molded Connector

M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector

The M12 4 Pin S-Code Cable Molded Connector is specifically designed for AC power transmission in industrial automation. With its S-coding and 4-pin configuration, it ensures safe and reliable connection for power supply to actuators, motors, and machinery. The overmolded cable structure provides enhanced durability, waterproof protection, and resistance to oil and vibration, making it ideal for demanding factory environments.

Product Features

Standard M12 S-coding, 4-pin power connector
Overmolded PUR/PVC cable with high flexibility
IP67 protection against water and dust
High current capacity for AC power transmission
Vibration and shock resistant design

Applications

AC power supply connections
Actuators and motors
Industrial automation equipment
Factory power distribution systems

M12 4 Pin S-Code Cable Molded Connector Technical Data

Technical data
parameter category	parameter name	parameter data
Mechanical and Electrical	Reference standard	IEC 61076-2-101
	Rated current	12A
	Rated voltage	630V
	Impulse voltage	6000V
	Contact resistance	≤5mΩ
	Insulation resistance	≥100MΩ
	EMC Shielding	Full shielding
	Locking system	M12 × 1.0mm screw
	Tightening torque	Recommended: 1.0 Nm Max: 1.2 Nm
Material	Terminal material	Phosphor bronze
	Contact plating	Au (Gold)
	Insert	PA66+GF, Black
	Overmold	TPU, Black
	Screw nut	Brass, CNC
	Screw nut plating	Nickel plated
	O-ring	FKM
Cable	UL AWM style	UL2464
	Conductor material	Stranded Tinned Copper
	Conductor cross-section	16AWG*4P
	Wire colors	Black, White, Red, yellow, green
	Sheath/insulation material	PVC or PUR, black
	Outer diameter	Ø8.1 ± 0.2mm
	Cable length	1000mm ±50 (Including Connector)
Environmental	Rated temperature	Static: -40° ~ 80℃ Dynamic: -25° ~ 80℃
	Protection degree	IP67
	Environmental Compliance	ROHS
	Pollution degree	3
