M12 4 Pin Female Cable
M12 4 Pin Female Cable M12 4 Pin Female Cable M12 4 Pin Female Cable

M12 4 Pin Female Cable

Item No.: 00870
This m12 4 pin female cable may be assembled by an IP67 / IP68 waterproof rating A-coded/B-coded/D-coded/L-coded/K-coded/S-coded/T-coded circular m12 4 pin female connector and one 4-core cable.
Request Quote
Description Review
Description

This m12 4 pin female cable may be assembled by an IP67 / IP68 waterproof rating A-coded/B-coded/D-coded/L-coded/K-coded/S-coded/T-coded circular m12 4 pin female connector and one 4-core cable.


Features:

  • Interface: M12 A-Coded, compliant with IEC 61076-2
  • Pin Configuration: 4 Pin (2 power + 2 data)
  • Rated Current: up to 4A
  • Rated Voltage: 250V
  • Protection Degree: IP67 / IP68, waterproof and dustproof
  • Structure: Overmolded design
  • Applications: industrial automation sensor system

    M12 A Coded 4 Pin Female Cable Technical Data

    Technical data
    parameter category parameter name parameter data
    Mechanical and Electrical Reference standard IEC 61076-2-101
    Rated current 4A
    Rated voltage 250V
    Impulse voltage 600V
    Contact resistance ≤5mΩ
    Insulation resistance ≥20MΩ
    EMC Shielding No shielding
    Locking system M12 × 1.0mm screw
    Tightening torque Recommended: 1.0 Nm
    Max: 1.2 Nm
    Material Terminal material Phosphor bronze for female pins
    Contact plating Au (Gold)
    Insert housing PA66+GF, Black
    Overmold TPU, Black
    Screw nut Brass, CNC
    Screw nut plating Nickel plated
    O-ring FKM
    Cable UL AWM style UL2464
    Conductor material Stranded Tinned Copper
    Conductor cross-section 20AWG&26AWG
    Wire colors Brown, White, Blue, Black
    Sheath/insulation material PVC or PUR, black
    Outer diameter Ø4.0~Ø5.2 ± 0.2mm
    Cable length 1000mm, 2000MM, 3000MM ±50 (Including Connector)
    Environmental Rated temperature Static: -40° ~ 80℃
    Dynamic: -25° ~ 80℃
    Protection degree IP67 / IP68
    Environmental Compliance ROHS
    Pollution degree 3

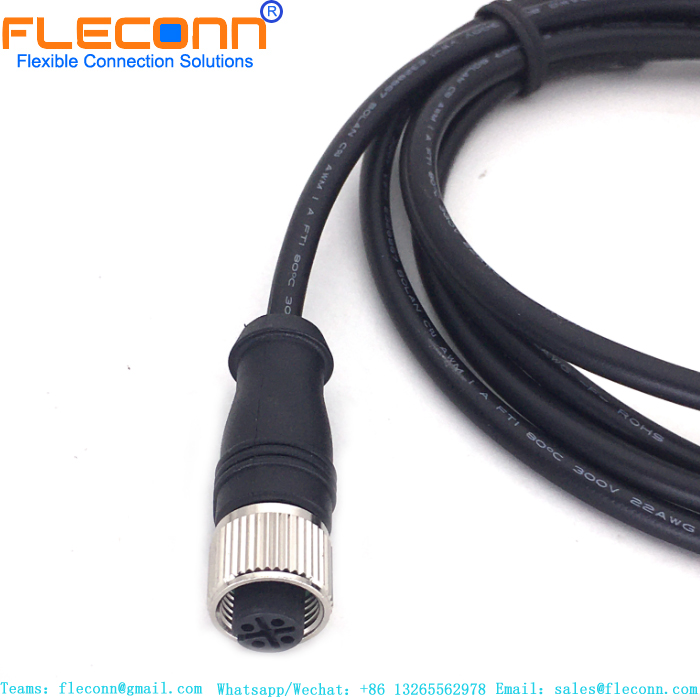

    M12 4 Pin Female Cabe

    FLECONN can produce high quality single ended M12 4 Pin A-code female cabe

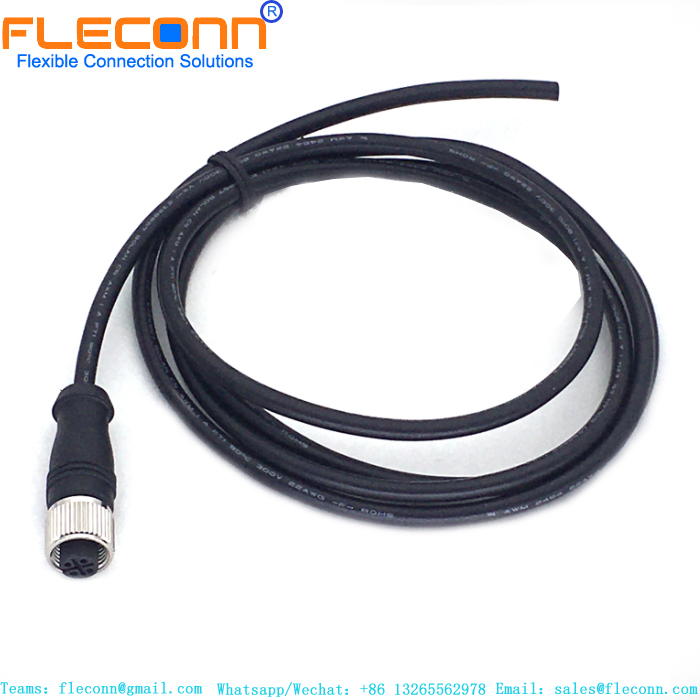

    M12 4 Pin A-coded Female Cable

    FLECONN can produce high quality single ended M12 4 Pin A-code female cable

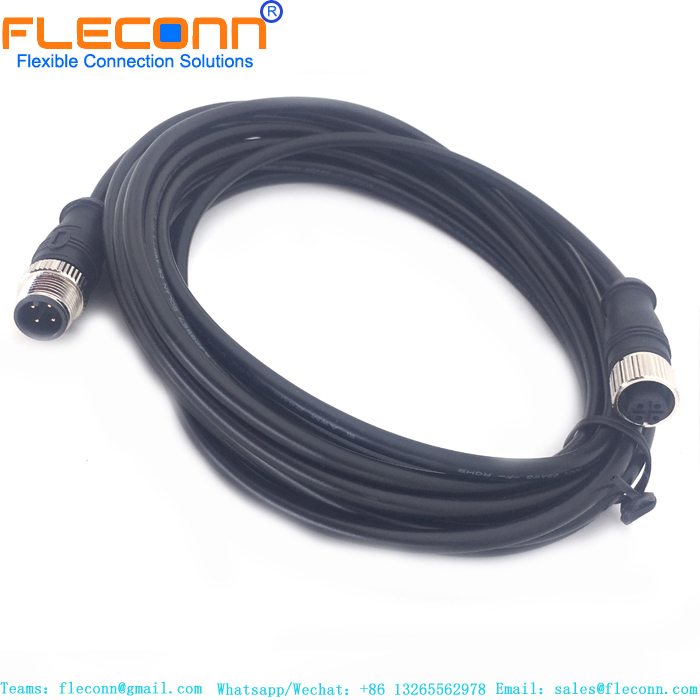

    M12 4 Pin Male to Female Cable

    FLECONN can produce high quality M12 4 Pin A-code Male to Female Cable

    Other M12 Cables

    FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
