Home > JAE Connector Wire Harness

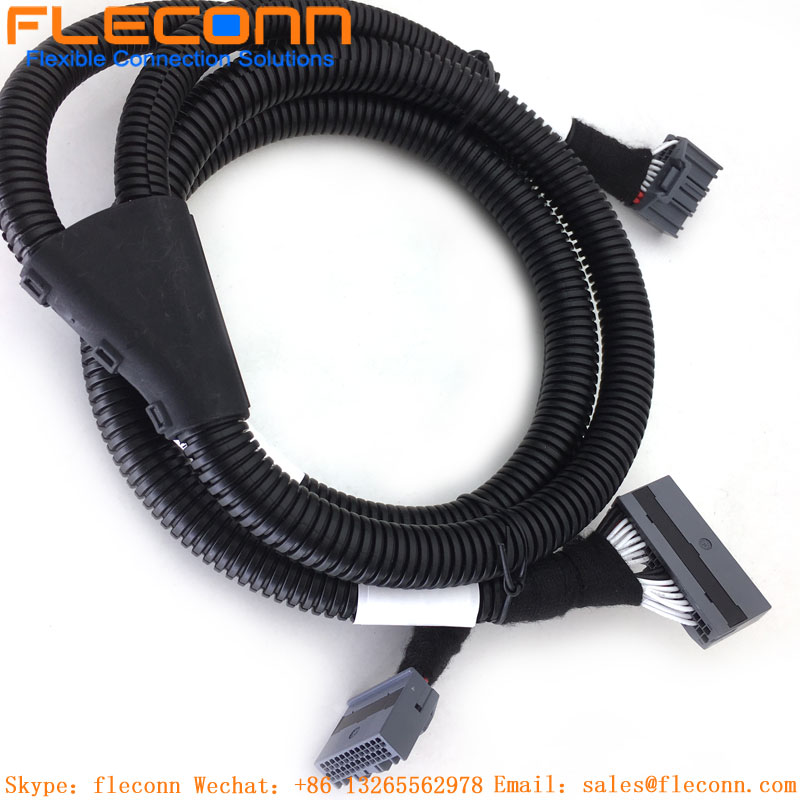

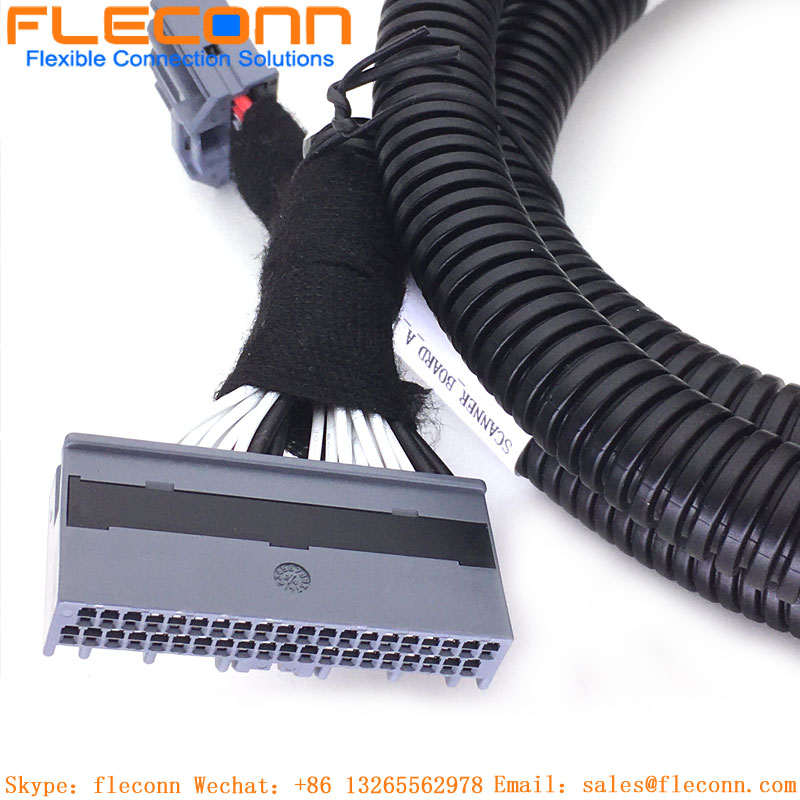

JAE MX34 Series 40P Male To 24P Male Cable Assembly
JAE MX34 Series 40P Male To 24P Male Cable Assembly JAE MX34 Series 40P Male To 24P Male Cable Assembly JAE MX34 Series 40P Male To 24P Male Cable Assembly JAE MX34 Series 40P Male To 24P Male Cable Assembly JAE MX34 Series 40P Male To 24P Male Cable Assembly

JAE MX34 Series 40P Male To 24P Male Cable Assembly

Item No.: JAE-40P-2.2PH-MX34-PVC-0.5M-02
Product Name: JAE Connector Wire Harness
Connector Pitch：2.2MM
Connector : JAE MX34040SF1
Crimp Terminal: M34S75C4F1
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 2.2mm
Request Quote
Description Review
Description

JAE MX34 Series 40P Male To 24P Male Cable Assembly Product Description


FLECONN can custom JAE Connector cable assemblies available in various circuits and cable lengths. The customized JAE Connector Cable Assembly may have single-ended and double-ended available, internal and external assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Detail description for JAE 2.2mm Pitch MX34040SF1 Cable Assembly

Prouduct Name  Custom JAE MX34040SF1 Connector Wire Harness
Equivalent to Molex Part No.  MX34040SF1
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: MX34040SF1 2.2mm Pitch Receptacle Housing, Dual Row,  40 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: M34S75C4F1 2.2mm Pitch Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact,
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007 AWG28#/26#/24#/22#/ tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL1571 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag
