M12 connector Cable Introduction

FLECONN can produce and overmold IP67 IP68 waterproof rating m12 cable assemblies with m12 a-coded connector, m12 b-coded connector, m12 c-coded connector, m12 d-coded connector, m12 k-coded connector, m12 L-code connector, m12 S-coded connector, m12 T-coded connector, M12 X-coded connector etc. These m12 connector cables are classified as m12 3 pin cable, m12 4 pin cable, m12 5 pin cable, m12 6 pin cable, m12 8 pin cable, m12 12 pin cable, m12 17 pin cable by contacts number. All these m12 cable assemblies have male and female connector gender available, straight and right angle molded type available. Cable jacket may be PVC or PUR resin according to customer applications. M12 cable assembly is widely used in the fields of industry automation sensor and actuator system, Outdoor LED light connection, security survailance camera cable connection, superspeed industry camera video transmission, automotive sensor connection cable etc.

1.M12 A-Coded Connector Cable

Application: m12 A-coding connector is used for actuator-sensor plug connections for DeviceNet, IO link and Profibus.

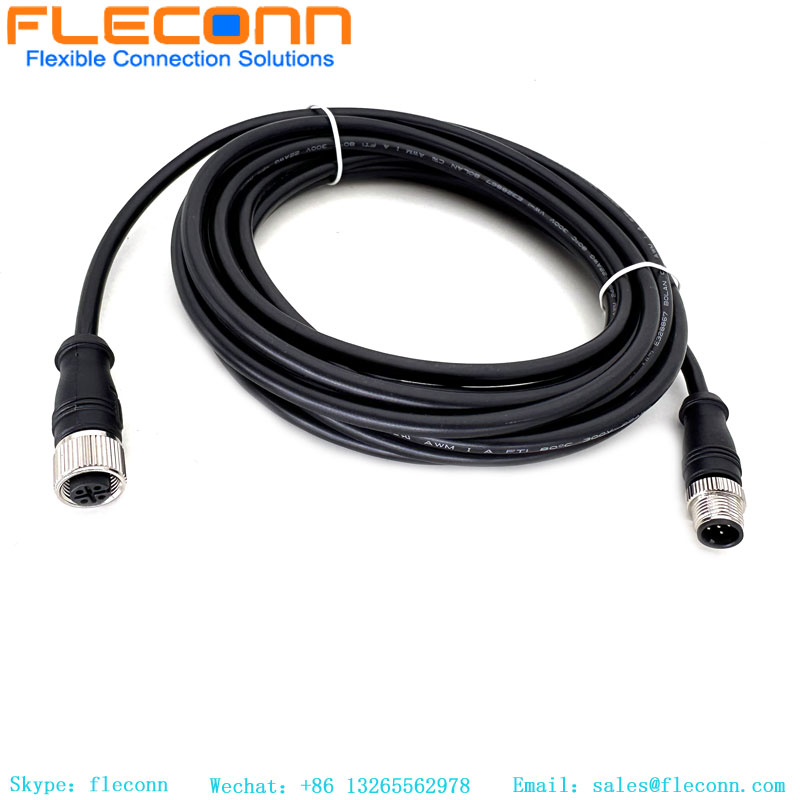

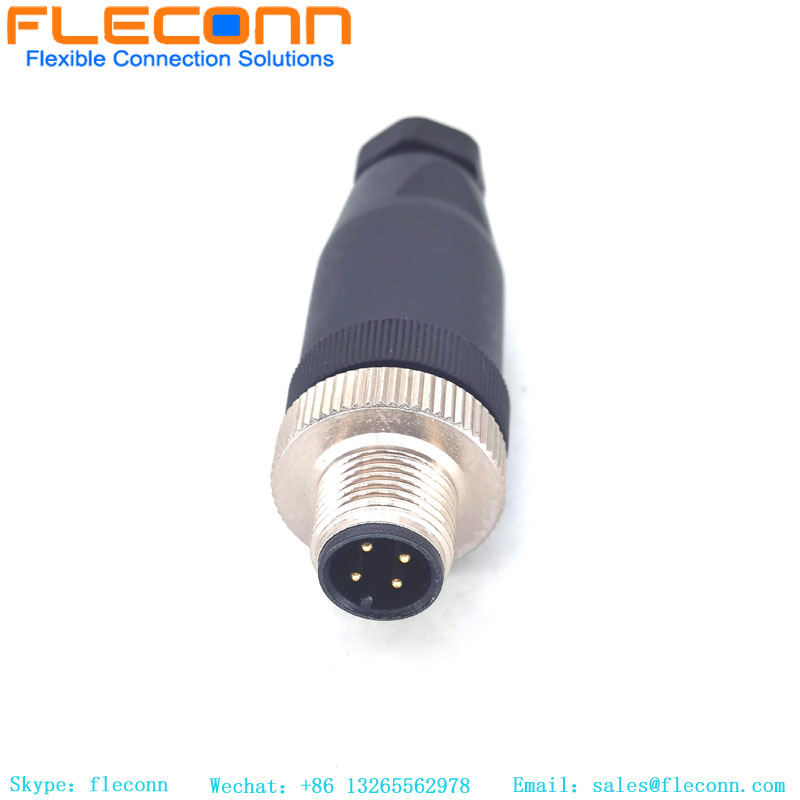

FLECONN can produce IP67 IP68 waterproof rating 3 pin 4 pin 5 pin 6 pin 8 pin 12 pin 17 pin / pole / position male and female overmolded m12 a-coded connector cable assemblies.

FLECONN can produce IP67 IP68 waterproof rating 3 pin 4 pin 5 pin 6 pin 8 pin 12 pin 17 pin / pole / position male and female overmolded m12 a-coded connector cable assemblies.


















1.M12 B-Coded Connector Cable

M12 B-coded Cable is used for actuator in the Fieldbus connections for Profibus and Interbus

FLECONN can produce straight / right angle 3 4 5 pin male and female m12 b-coded connector cable with IP67/IP68 waterproof rating.

FLECONN can produce straight / right angle 3 4 5 pin male and female m12 b-coded connector cable with IP67/IP68 waterproof rating.
















3. M12 C-coded connector Cable

M12 C-code connector cable is used for alternating current (AC) applications, including motor connections.

M12 3pin 4pin 5pin 6pin C-coding connector pin and contact layout diagram




4.M12 D-Coded Connector Cable

M12 D-code Cable is used for Industrial Ethernet, Profinet, Ethernet/IP and EtherCat
FLECONN can produce IP67/IP68 waterproof m12 4 pin d-coded connector cable, m12 d-code male to female cable, m12 4 pin d-coding male/female to rj45 male cable, m12 4 pin d-coding male/female to x-coded male/female Ethernet cable.

FLECONN can produce IP67/IP68 waterproof m12 4 pin d-coded connector cable, m12 d-code male to female cable, m12 4 pin d-coding male/female to rj45 male cable, m12 4 pin d-coding male/female to x-coded male/female Ethernet cable.








M12 D-coding 4 pin male connector pin faceviewM12 D-coding 4 pin female connector pin faceview

5.M12 X-Coded Connector Cable

M12 X-code Cable is used for 10 gigabit per minute industrial ethernet with Cat6A, Cat7, Cat8 cable.

M12 X-coding 8 pole male pin and 8 positions female contacts layout faceview:

FLECONN can produce IP67 waterproof straight and 90 degree right angle molded m12 x-coded 8 pin male/female connector to rj45 ethernet cable with pvc/pur jacket cat5e, cat6 cat 6a cat6a cat7 cat8 screen shielded cable. The data transmission rate can respectively reach 100Mb/s, 500Mb/s, 1000Mb/s, 5000Mb/s, 10Gbps, 10Gb/s, 40GB/s.












FLECONN can produce IP67 waterproof straight and 90 degree right angle molded m12 x-coded 8 pin male/female connector to rj45 ethernet cable with pvc/pur jacket cat5e, cat6 cat 6a cat6a cat7 cat8 screen shielded cable. The data transmission rate can respectively reach 100Mb/s, 500Mb/s, 1000Mb/s, 5000Mb/s, 10Gbps, 10Gb/s, 40GB/s.


M12 X-coded 8 pos male connector layout faceviewM12 X-Coding 8 pos female connector layout faceview

6.M12 S-Coded Connector Cable

M12 S-code Cable is used for Motor, Frequency-convertors, motor operated switches, PSUs for Power, 620V, 12A

M12 S-coded connector 2+PE, 3+PE male and female pin layout faceview:

They have 2+PE and 3+PE contacts with a rated current of 12A at 630VAC. These connectors are available in straight and angled cable versions, with screw terminal connection. The flange versions are available with screw terminals as well as with stranded wires.












They have 2+PE and 3+PE contacts with a rated current of 12A at 630VAC. These connectors are available in straight and angled cable versions, with screw terminal connection. The flange versions are available with screw terminals as well as with stranded wires.

M12 S-Coding 2+PE, 3+PE male connector pin faceview
   M12 S-Coding 2+PE, 3+PE female connector contact faceview

7. M12 T-coded connector Cable

M12 T-coded connector is used for Fieldbus comp, passive distribution boxes, motors, PSUs for Power, 63V, 12A

M12 T-coding 4 pole male and female contact arrangement:

T-coded versions have 4 contacts with a rated current of 12 A at 63 VDC. The straight and angled cable connectors have screw terminals, but are also available with moulded cable.












T-coded versions have 4 contacts with a rated current of 12 A at 63 VDC. The straight and angled cable connectors have screw terminals, but are also available with moulded cable.

M12 T-coding 4 pos male contact arrangementM12 T-Coding 4 pin female contact arrangement

8. M12 L-coded connector Cable

M12 L-code connector cable is used for big Power transmission with max 16A current comes true the change from big Power vs small Size alternative to both big Power and small Size. It can be used in the PROFINET application on the condition that needing big power supply and small space. Using L-code M12 connectors means no more difficult choices when designing smaller, more powerful PROFINET system components.
M12 L-coding male and female 4pin + PE contact layout diagram


9.M12 P-coded connector Cable

M12 P-coding Connector 5 pin male and female contact arranglement.
