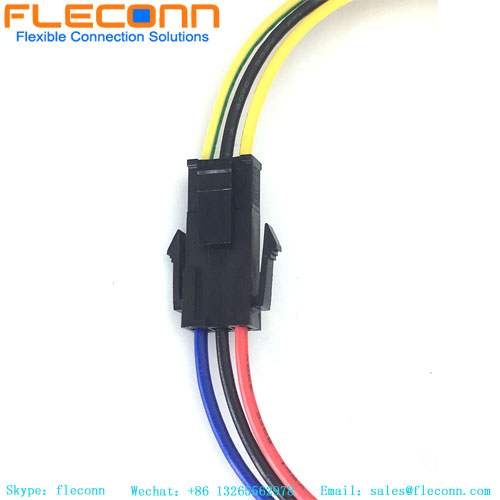

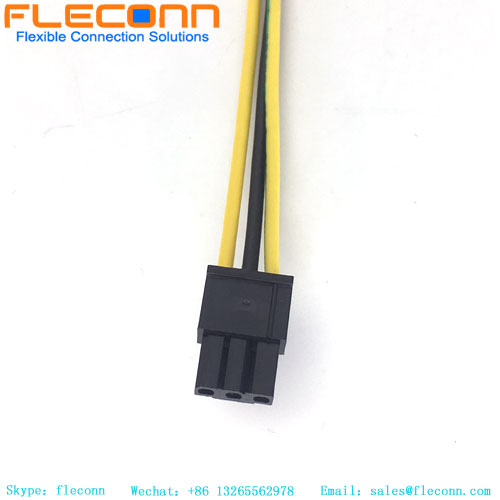

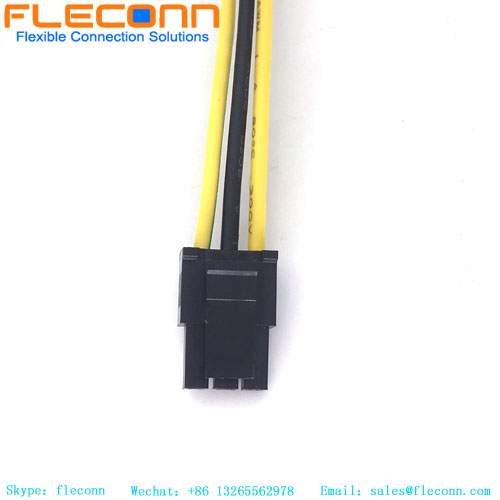

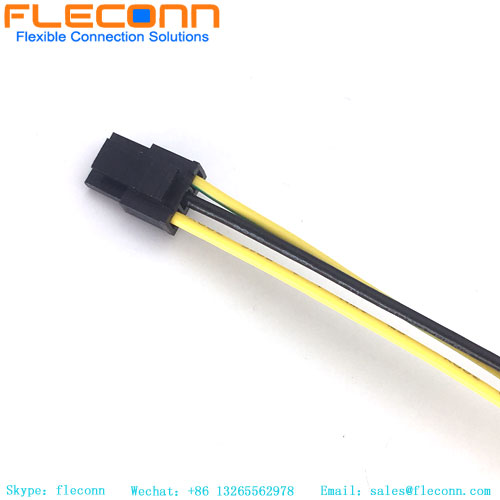

Molex Micro Fit 436450300 Single Row Terminal Wire
Molex Micro Fit 436450300 Single Row Terminal Wire Molex Micro Fit 436450300 Single Row Terminal Wire Molex Micro Fit 436450300 Single Row Terminal Wire Molex Micro Fit 436450300 Single Row Terminal Wire Molex Micro Fit 436450300 Single Row Terminal Wire

Molex Micro Fit 436450300 Single Row Terminal Wire

Item No.: MX-F-3P-3.0PH-43645-1M
Product Name: Micro-Fit 3.0 Wire Harness
Connector Pitch：3.0MM
Connector : Molex 43640-0300, 2/3/4/5/6/7/8/9/10/11/12 pin
Crimp Terminal: 43031-0001
Wire: UL 1007 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 3.00mm
Request Quote
Description Review
Description

Molex Micro Fit 436450300 Single Row Terminal Wire Description



FLECONN, as an overmolded cable assemblies and molded wire harness manufacturer, can custom 214751 & 43640 series molex microfit 3.0 cable with micro-fit 3.0 connector for power transmision. There are 2 3 4 5 6 7 8 9 10 11 12 pin Molex Micro-Fit 3.0 Cable receptacle housing such as manufacturer part number 43645-0200，43645-0300，43645-0400，43645-0500，43645-0600，43645-0700，43645-0800，43645-0900，43645-1000，43645-1100，43645-1200 available.

Detail description for Molex Micro Fit 436450300 Single Row Terminal Wire

Prouduct Name   Molex Micro-Fit 3.0 Female 43645-0300 3Pin Connector Wire Harness
Equivalent to Molex Part No.  2147511031，2147511032，2147511033，2147512031，2147512032，2147512033
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 43640-0300 Micro-Fit 3.0 Receptacle Housing, Dual Row, 3 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 43031-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL1007AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1571 Round cable/ UL1007 Parallel cable
10. Wiring diagrm: defined by customers
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag


























Molex Micro Fit 436450300 Single Row Terminal Wire

Micro-fit 3.0 Off-the-Shelf (OTS) 2 2147531031,2147531032，2147531033，2147532031，2147532032，2147532033, 3 pin cable wire harness

Molex Micro Fit 3.0 Cable 3 Position Wire Harness

Molex Micro Fit 3.0 Cable 43640-0300 Series Wire Harness

Molex 3.0 Pitch Female 3Pin Cable Assembly

Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assembly

Molex Connector Wire Harness

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
