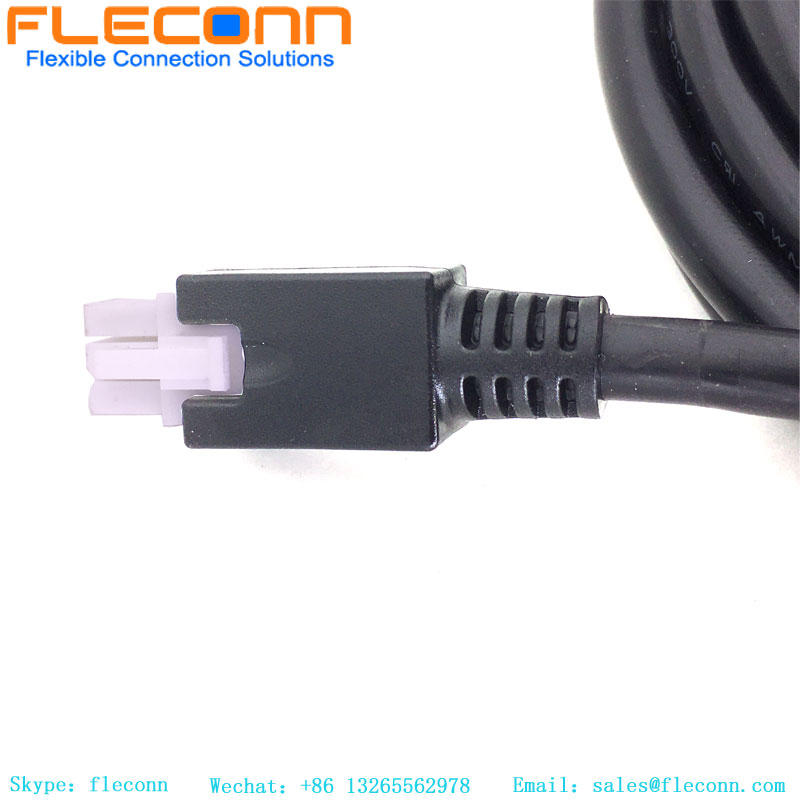

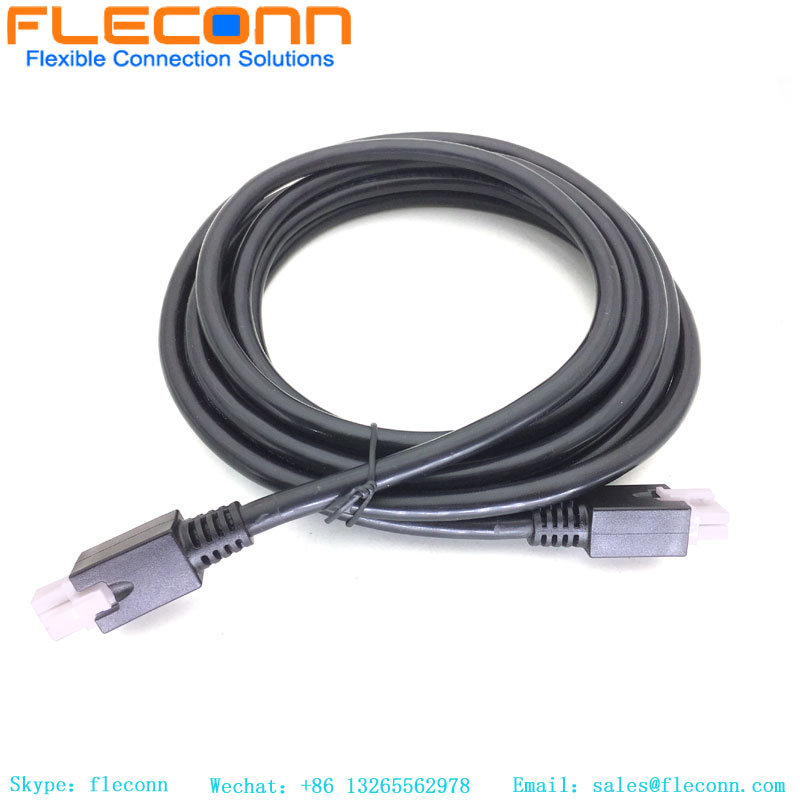

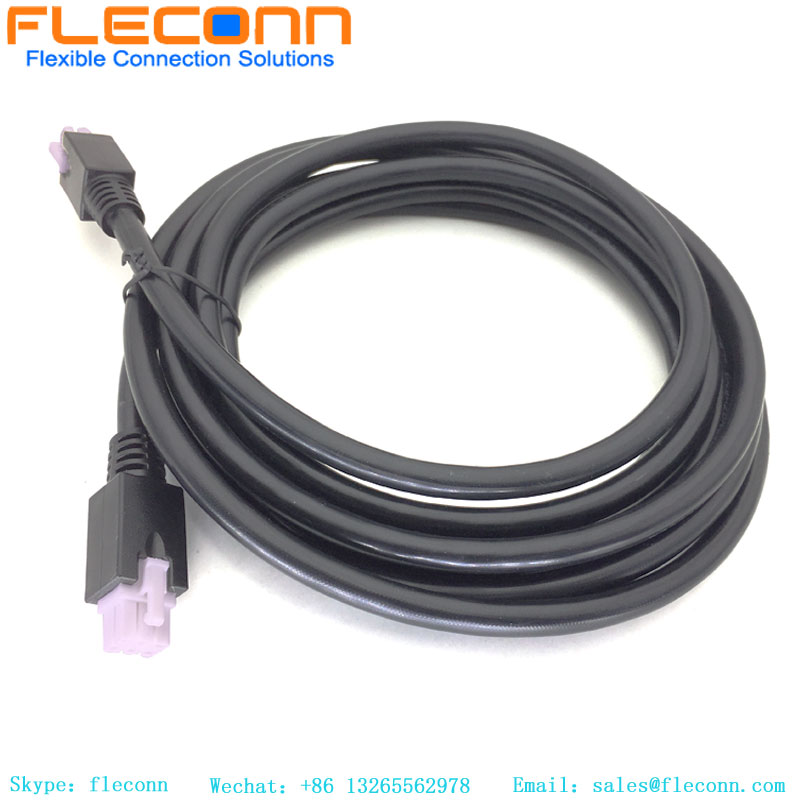

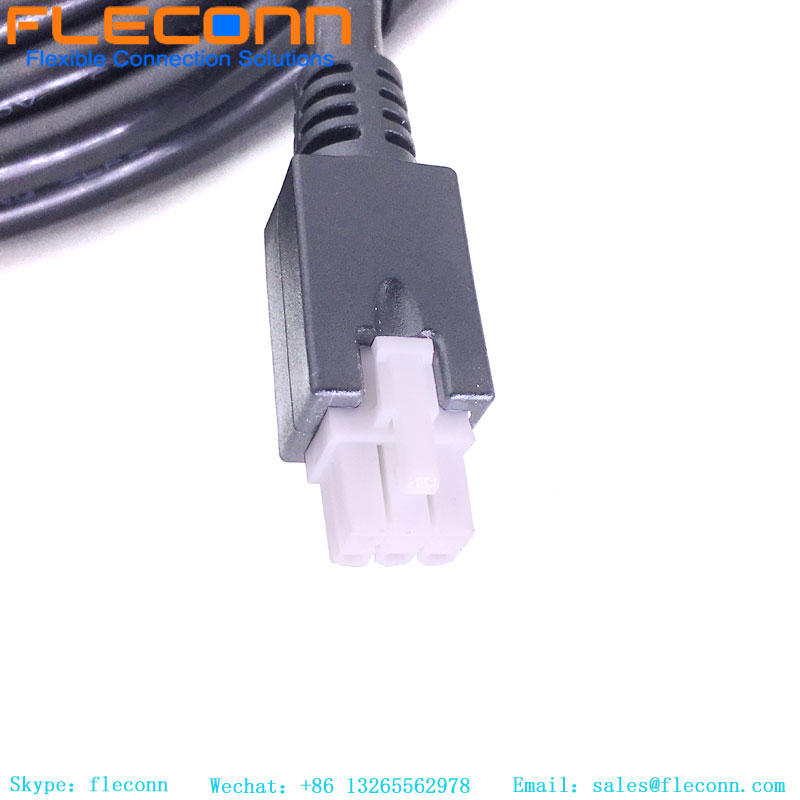

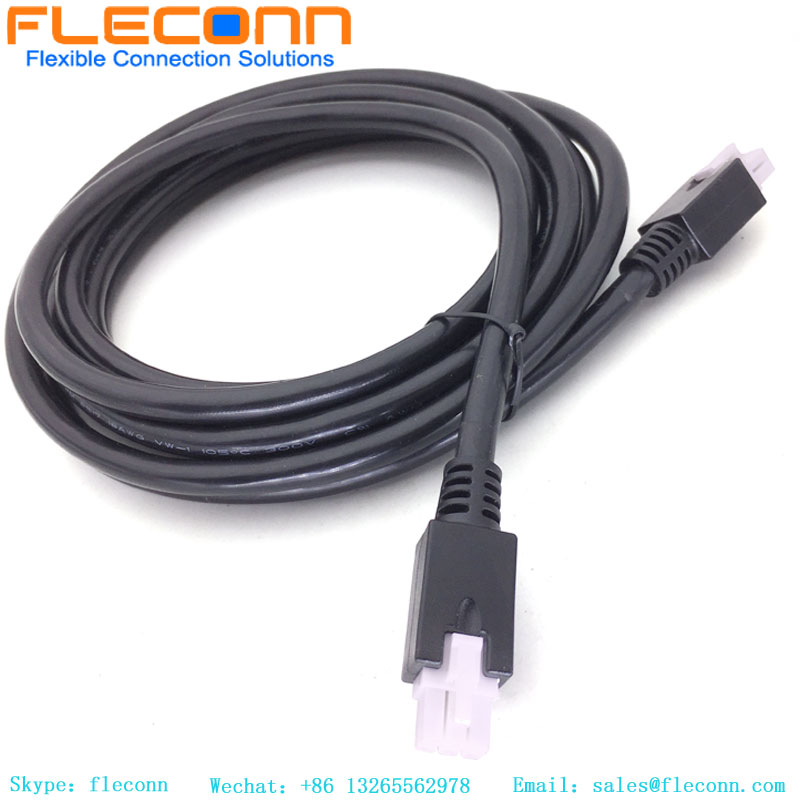

Molex 6 Pin 5557-06r-210 Connector Cable
Molex 6 Pin 5557-06r-210 Connector Cable Molex 6 Pin 5557-06r-210 Connector Cable Molex 6 Pin 5557-06r-210 Connector Cable Molex 6 Pin 5557-06r-210 Connector Cable Molex 6 Pin 5557-06r-210 Connector Cable

Molex 6 Pin 5557-06r-210 Connector Cable

Item No.: MX-6P-4.2PH-39012-PVC-OM-0.5M
Product Name: Mini-Fit 4.2 Wire Harness
Connector Pitch：4.2MM
Connector : Molex 39012065,39012060, 2/4/6/8/10/12/14/16/18/20 pin
Crimp Terminal: 39000039
Wire: UL2464 6*22AWG
Request Quote
Description Review
Description

Molex 6 Pin 5557-06r-210 Connector Cable Product Description


FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection. Molex 39012065 connector cable is a compact, high-performance cable assembly ideal for power and signal applications in space-constrained environments. It offers a reliable connection with a secure latch system and can be customized for specific applications across various industries.

Detail description for Molex 4.2mm Pitch 39012065 Overmolded Cable

 Molex 4.2mm Pitch 39012065 Connector Cable
Equivalent to Molex Part No.  39012060，39012065
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 39012065 Micro-Fit 4.2 Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 39000039 Micro-Fit 4.2 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL2464 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL1007 Round cable/ UL2464 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag



























Molex 6 Pin 5557-06r-210 Connector Cable

Molex 6 Pin 5557-06r-210 Connector CableMolex 39012060 Receptacle Housing Cable

Molex 4.2mm Pitch 39012065 Overmolded Cable

Molex 4.2mm Pitch 5557 Series Cable Assembly

Molex 5557 Series 39012065 Molded Cable Assembly

Overmolded Connector Cable Harnesses

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
