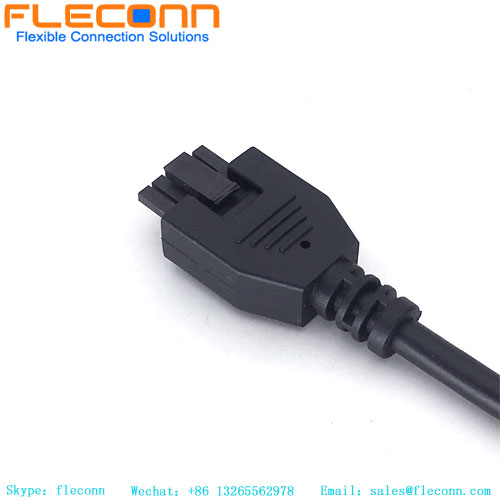

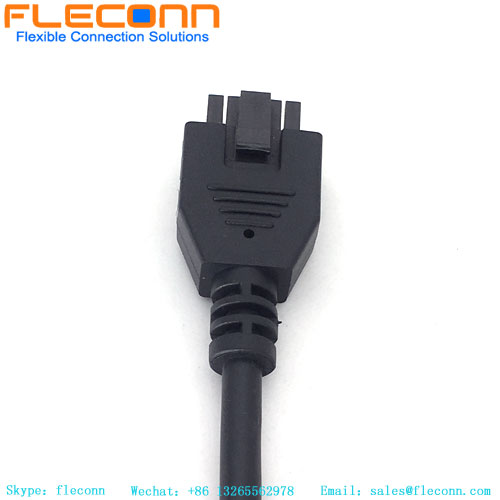

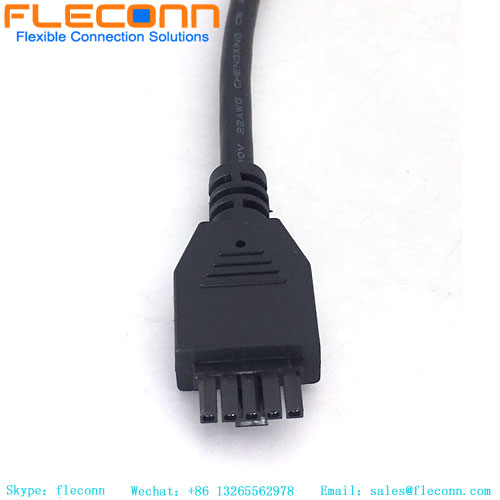

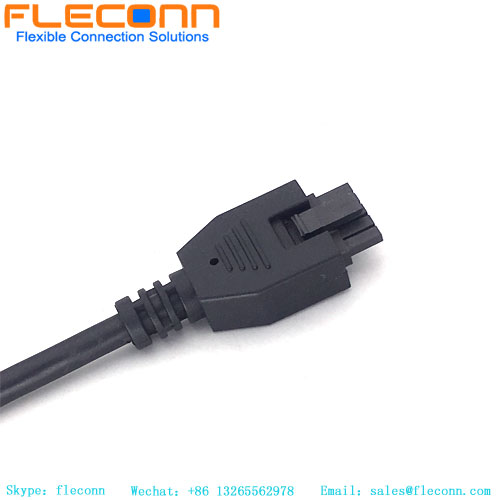

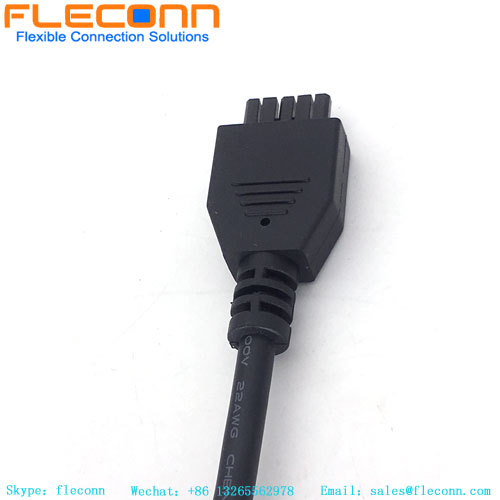

Molex Microfit 3.0 Single Row 436450500 Overmolded Connector Cable Wire Harness
Molex Microfit 3.0 Single Row 436450500 Overmolded Connector Cable Wire Harness Molex Microfit 3.0 Single Row 436450500 Overmolded Connector Cable Wire Harness Molex Microfit 3.0 Single Row 436450500 Overmolded Connector Cable Wire Harness Molex Microfit 3.0 Single Row 436450500 Overmolded Connector Cable Wire Harness Molex Microfit 3.0 Single Row 436450500 Overmolded Connector Cable Wire Harness

Molex Microfit 3.0 Single Row 436450500 Overmolded Connector Cable Wire Harness

Item No.: MX-05P-3.0PH-PVC-2M
Product Name: Micro-Fit 3.0 Wire Harness
Connector : Molex 43025-0500, 4/6/8/12/14 pin
Crimp Terminal: 43030-0001
Wire: UL 2464 AWG28#/ 26# /24#, PVC
Pitch Mating Interface: 3.00mm
Request Quote
Description Review
Description

Molex 43025-0500 Single Row Connector Assembly Wire Harness Product Description



FLECONN can custom made  overmolded cable assemblies available in various circuits and cable lengths. The customized Overmolded Cable Assembly may have single-ended and double-ended available, internal and external molding assemblies with strain relief are available lengths from 500 mm, 1m, 2m to 5 m for a rugged signal connection.

Molex 43025-0500 Single Row Connector Assembly Wire Harness parameters

Cable: -40℃~105℃ PVC flexible
Process: Crimping, PVC overmould
Certificate: CE, RoHSProduct Specifications
Quality: 100% Inspection
Wire: Shielded Cable with PVC sleeve
Application: Home Appliance, Automobile, Motorcycle, Industry control
Important process: Crimping, Soldering,outside molding

Detail description for Micro-fit 3.0 5 pin Overmolded Cable Assembly

Prouduct Name  Molex Micro-Fit 3.0 Series 43645-0500 4Pin Connector Overmolded Cable Assemblies
Equivalent to Molex Part No.  2147700505, 2147700510, 2147700520, 2147700530,
 Applications  Power Cable & Signal Cable for industrial machine, electronic devices, domestic appliance, LED light, motor bike, automotive, New energy vehicles, medical equipment etc.
Technique characters 1. Connector housing: 43645-0500 Micro-Fit 3.0 Receptacle Housing, Dual Row, 5 Circuits, UL 94V-0, Low-Halogen, Black
2. Crimp terminal: 43030-0001 Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel. 430300004 26-30 AWG, 430300038 18 AWG
3. Connector type: rectangular
4. Connector Feature: latch lock
5. Wire: UL2464 AWG28#/26#/24#/22#/20# tinned stranded copper wire conductor, PVC insulation.
6. Cable jacket: black PVC jacket
7. Shielded: un-shielded / braided shielded
8. Cable length: 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7m, 8m, 10m or Customized
9. Cable style: UL2464 Round cable/ UL2468 Parallel cable
10. Color: Black, white, blue, green etc. MOQ 3000m except black.
11. Wiring diagrm: defined by customers
12. Inner molding material: LDPE resin
13. Outer molding material: 45P PVC resin
Environment temperature:  Ambient temperature for operation: -25…80℃
Waterproof Rating: IP4X
Certificate: CE, RoHS, UL(connector, cable)
Package:  **pcs/bind or 1pcs/PE bag

























Molex 43025-0500 Single Row Connector Assembly Wire Harness

Micro-fit 3.0 Off-the-Shelf (OTS) 2147700505, 2147700510, 2147700520, 2147700530, 5 circuits Overmolded Cable Assembly


Molex Micro Fit 3.0 Cable 5 Position Overmolded Wire Harness


Molex Micro Fit 3.0 Cable 43025 Series Overmolded Wire Harness


Molex 43025-0500 Wire To Wire Connector Cable


Micro Fit 3.0 5 Pin Molded Cable Wire Harness

Overmolded Connector Cable Harnesses

FLECONN can custom Molex Micro-Fit 3.0 made overmolded cable assemblies available in various circuits and cable lengths.
