M8 Straight Shielded Connector, 3 4 5 6 8 Pin Female Connector
M8 Straight Shielded Connector, 3 4 5 6 8 Pin Female Connector M8 Straight Shielded Connector, 3 4 5 6 8 Pin Female Connector M8 Straight Shielded Connector, 3 4 5 6 8 Pin Female Connector M8 Straight Shielded Connector, 3 4 5 6 8 Pin Female Connector M8 Straight Shielded Connector, 3 4 5 6 8 Pin Female Connector

M8 Straight Shielded Connector, 3 4 5 6 8 Pin Female Connector

Item No.: M8-F-MT-ST-04P-01
Product series: M8 Connector
Connector code: A-Coded
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 4P
Plug Guide: Straight
Request Quote
Description Review
Description

M8 Straight Shielded Connector Product Description



FLECONN can supply 3 pin male plug and 4 pole m8 female cable connector. These m8 field wireable cable connectors may be used for for connecting sensor and industry automation systems by field assembling and installing with various lenght cables.


M8 Straight Shielded Connector product parameters



Product series: M8 Connector Connector Gender: Female
Connector code: A-Coded Connector core number: 4P
Industry standard: IEC61076-2-101 Connector type: Field assembly
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M8 Straight Shielded Connector Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M8 Straight Shielded Connector Picture

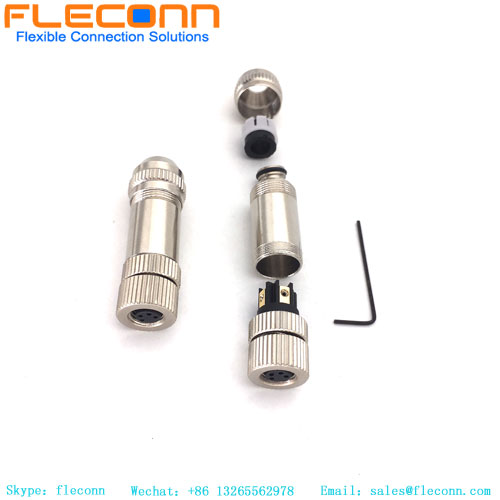

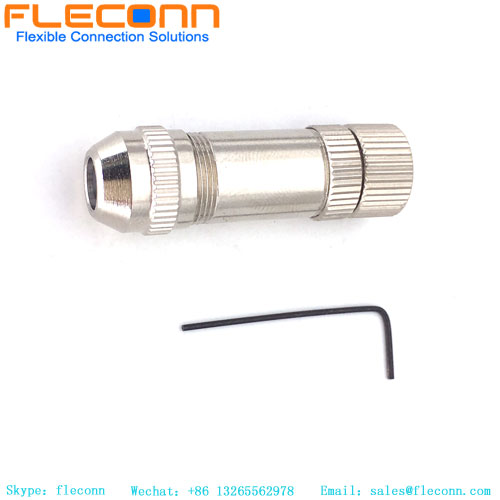

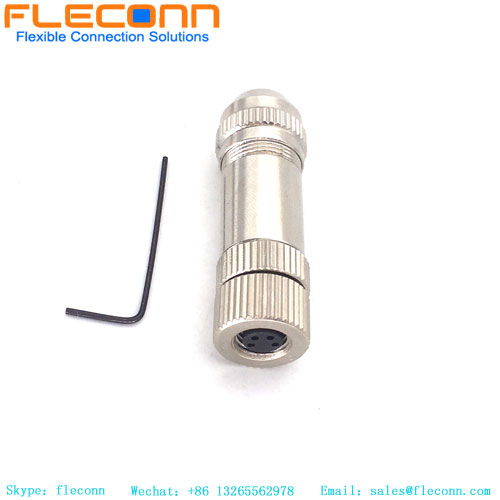

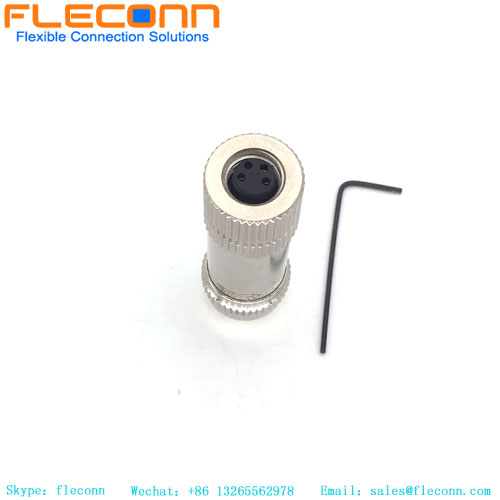

M8 4 pin Female Straight Metal Shell Plug


M8 straight Waterproof Shielded Connector, 3 4 5 6 8 Pin Female Connector

M8 4 Pin Circular Connector

M8 4 Pin Female Connector, Metal Shielded, Field Wireable Cable Connector

M8 4 pin Female Plug, Metal Shell

Other M8 Connector

FLECONN can provide IP66 waterproof M8 3Pin Connector for power and signal transmission connections.
