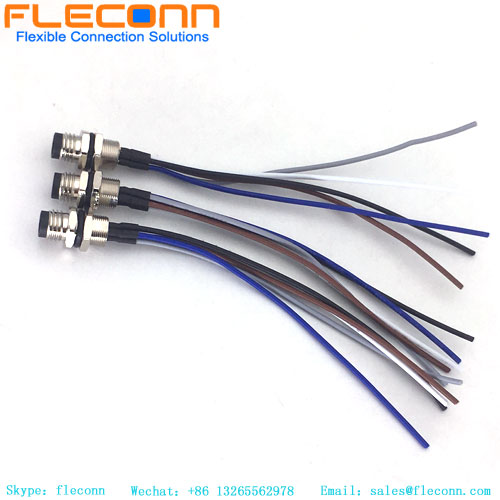

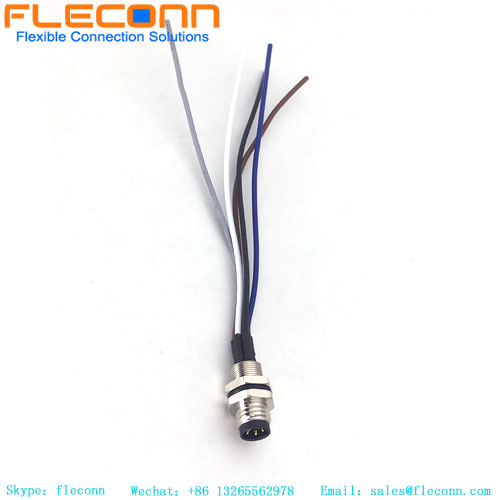

M8 B-code 5 Pole Front Panel Mount Connector With Soldered Wire Pigtails
M8 B-code 5 Pole Front Panel Mount Connector With Soldered Wire Pigtails M8 B-code 5 Pole Front Panel Mount Connector With Soldered Wire Pigtails M8 B-code 5 Pole Front Panel Mount Connector With Soldered Wire Pigtails M8 B-code 5 Pole Front Panel Mount Connector With Soldered Wire Pigtails M8 B-code 5 Pole Front Panel Mount Connector With Soldered Wire Pigtails

M8 B-code 5 Pole Front Panel Mount Connector With Soldered Wire Pigtails

Item No.: M8-B-M-ST-FFT-05P-200MM
Product series: M8 Panel Mount Connector Cable
Connector code: B-Coded
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 5 Pin 5-Pole, 5 Contacts
Plug Guide: Straight
Request Quote
Description Review
Description

M8 B-code 5 Pole Front Panel Mount Connector With Soldered Wire Pigtails Product Description



FLECONN could supply various m8 male and female panel mount connectors. These m8 circular connectors may be classified as straight and 90 degree right angle m8 panel mount connectors, shielded and unshielded pcb panel mount connectors, front and rear panel mount, front and rear fasten screw thread, wire solder pin and DIP solder pin connectors. There are 3 4 5 6 8 pin / pole / positions male and female m8 panel mount connectors available for connection systems of various sensor, industry automation equipment, robot and machine.


M8 B-code 5 Pin Male Panel Mount Connector With Soldered Wire Pigtails product parameters



Product series: M8 Panel Mount Connector Cable Connector Gender: Male
Connector code: B-coding Connector core number: 5Pin
Industry standard: IEC61076-2-101 Connector type: Panel mount
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M8 B-coded 5 Pin Male Panel Mount Connector With 22AWG Single Wires Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

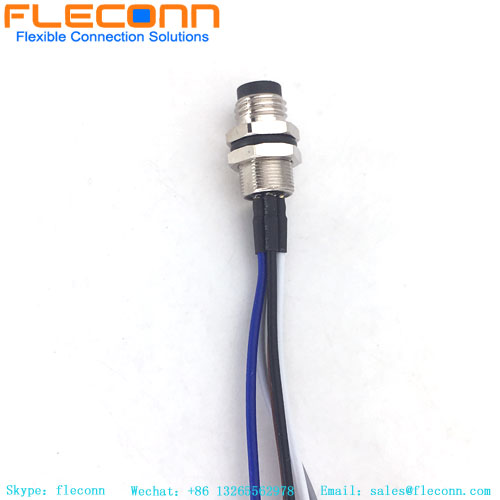

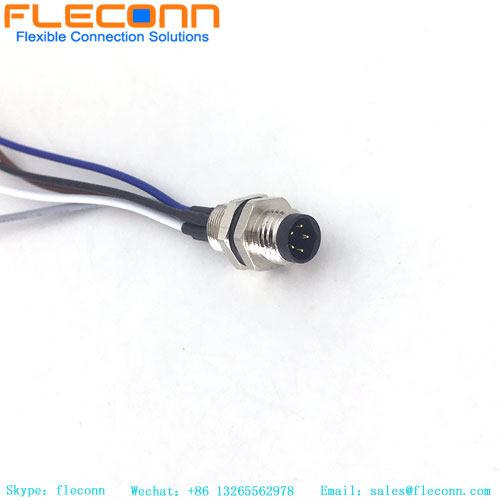

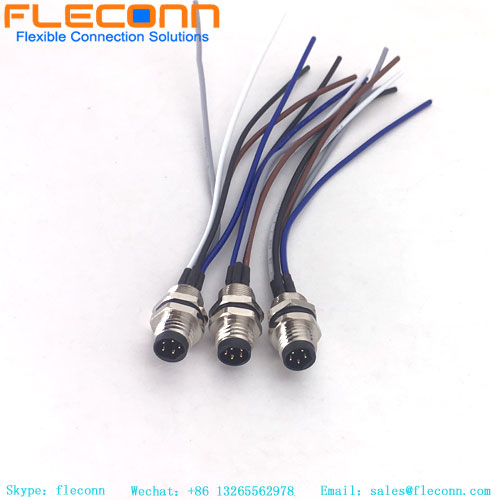

M8 5 Contacts Male Panel Mount Plug Cable, Rear Fastened Hex Nut Picture

M8 5 Contacts Male Panel Mount Plug Cable

M8 5 Pin Male Plug Panel Mount Cable


M8 5 Pole Male Panel Mount With Wires

M8 5 Pin Panel Mount Cable


M8 5 Pin B-coded Panel Connector With Cable

Other M8 Panel Mount Connector With Free Wire Leads

FLECONN can provide various m8 3 4 5 6 8 pin male and female front and rear panel mount connector with free wire leads for sensors.

Other M8 Panel Mount Connector

M8 connector is classified as m8 field wireable cable connector, m8 molded cable connector, m8 pcb connector, m8 panel mount connector with wire solder cup terminals
