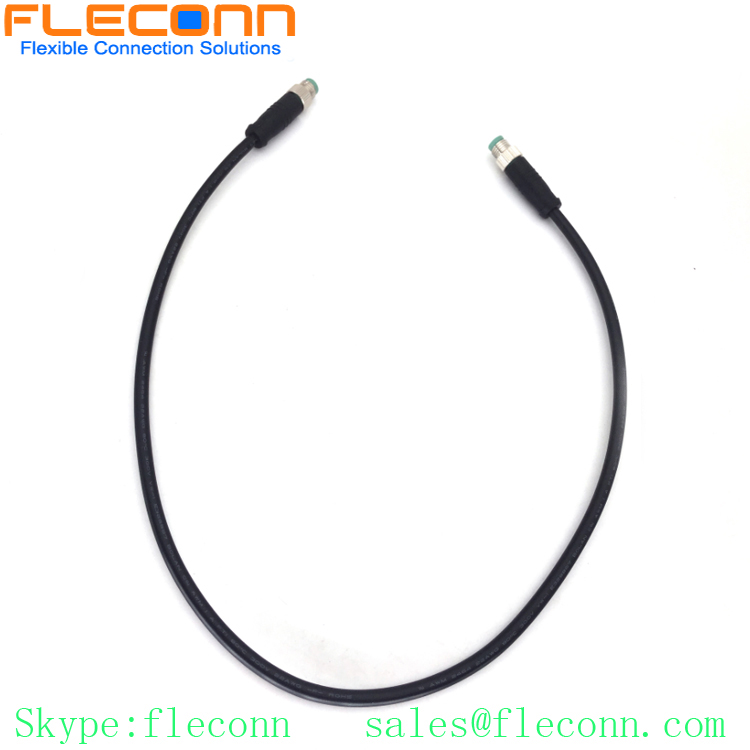

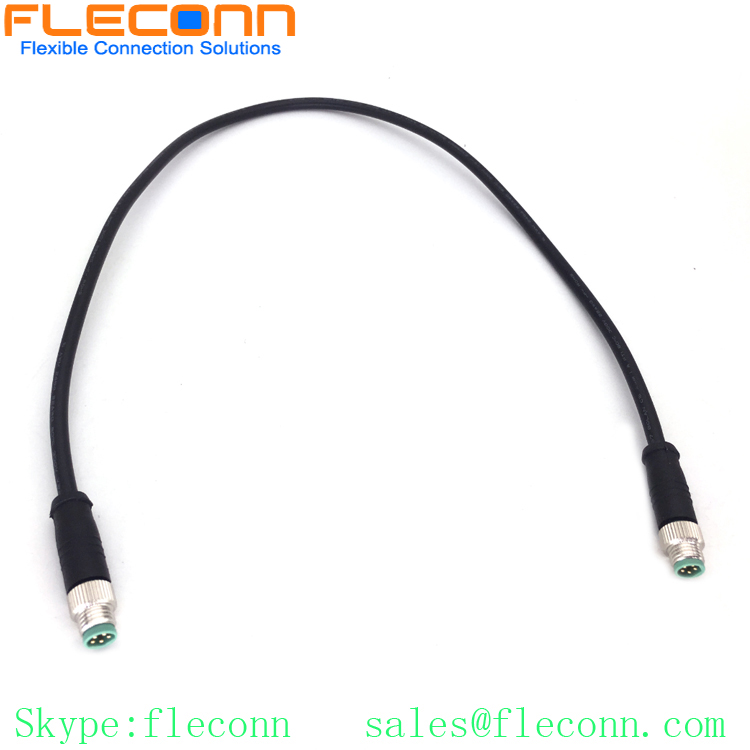

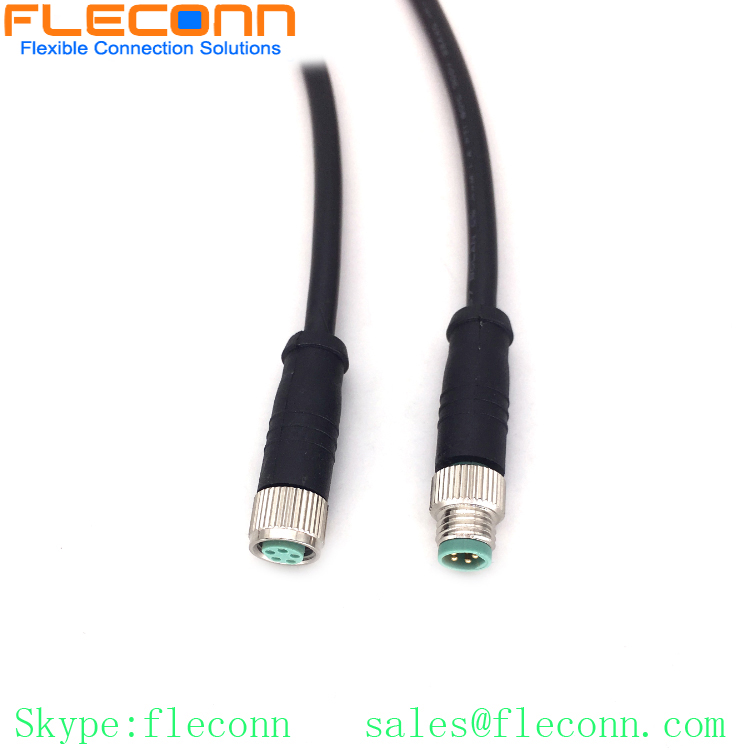

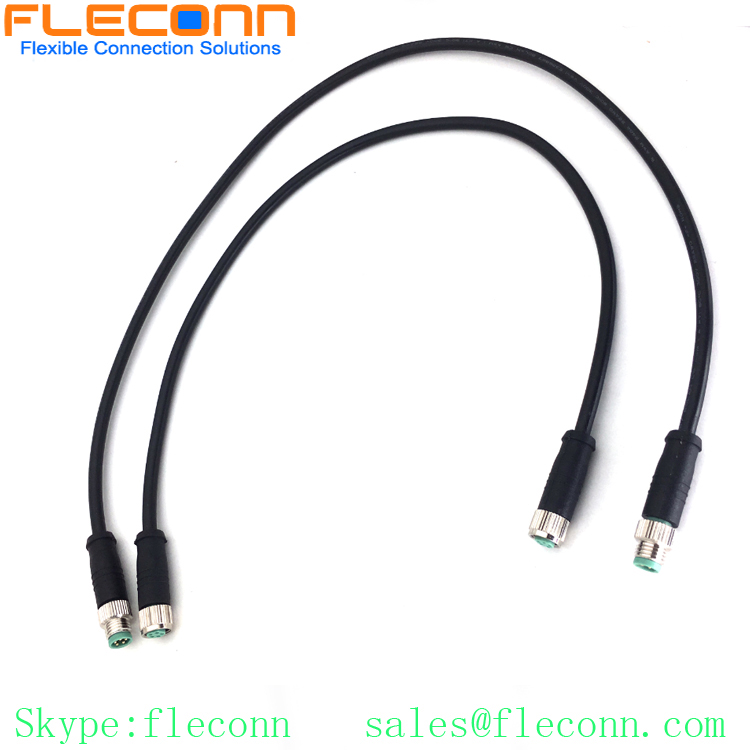

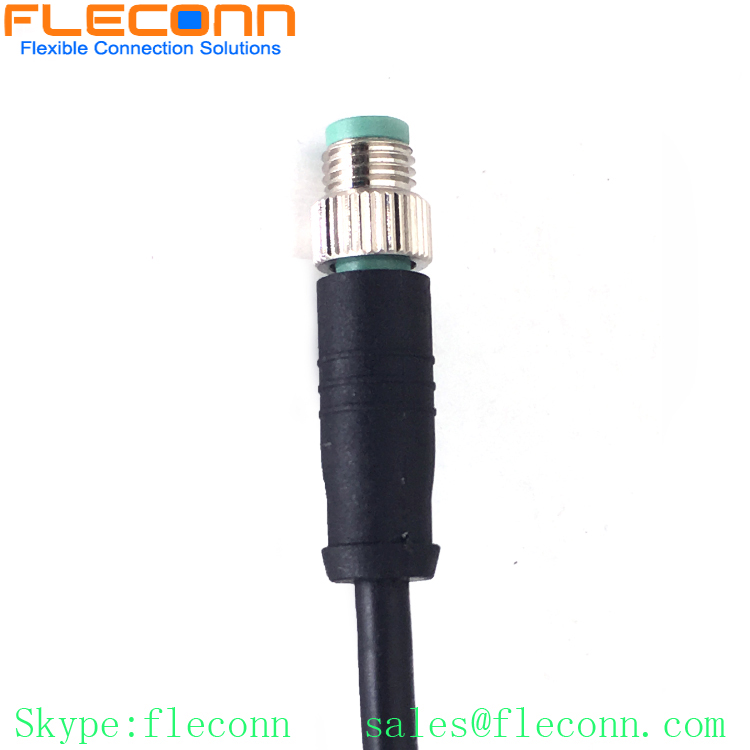

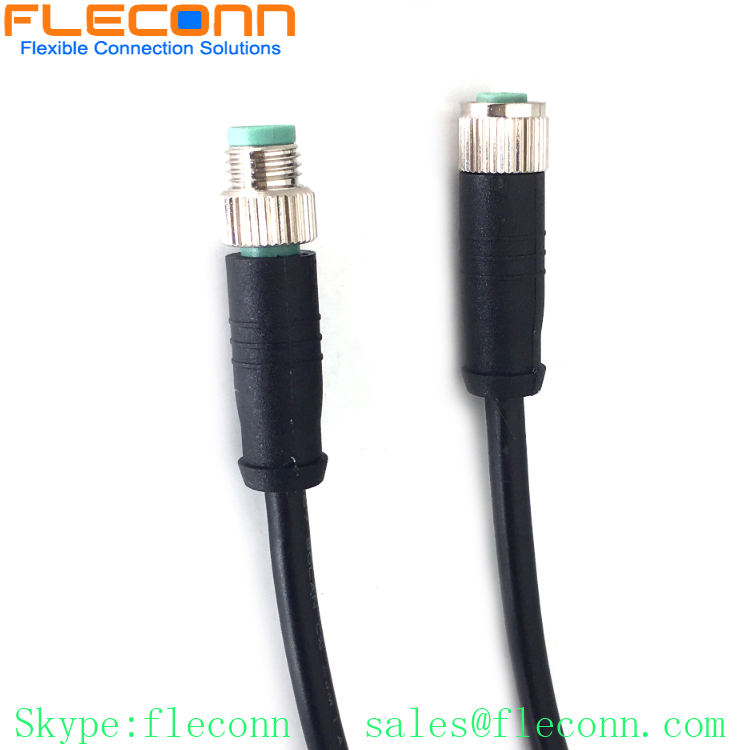

M8 3 Pin 4 Position 5 Pole 6 8 Pos Male to Female Cable, Straight Overmolded Connector Cable
M8 3 Pin 4 Position 5 Pole 6 8 Pos Male to Female Cable, Straight Overmolded Connector Cable M8 3 Pin 4 Position 5 Pole 6 8 Pos Male to Female Cable, Straight Overmolded Connector Cable M8 3 Pin 4 Position 5 Pole 6 8 Pos Male to Female Cable, Straight Overmolded Connector Cable M8 3 Pin 4 Position 5 Pole 6 8 Pos Male to Female Cable, Straight Overmolded Connector Cable M8 3 Pin 4 Position 5 Pole 6 8 Pos Male to Female Cable, Straight Overmolded Connector Cable M8 3 Pin 4 Position 5 Pole 6 8 Pos Male to Female Cable, Straight Overmolded Connector Cable M8 3 Pin 4 Position 5 Pole 6 8 Pos Male to Female Cable, Straight Overmolded Connector Cable

M8 3 Pin 4 Position 5 Pole 6 8 Pos Male to Female Cable, Straight Overmolded Connector Cable

Item No.: M8-BM-ST-05P-2M-TPU
FLECONN can produce straight and right angle m8 5 pin male cable for various signal sensor.
Product series: M8 Connector Cable
Adapter wire gauge: 22-28AWG
Connector Gender:  Male
Waterproof grade: IP67
Connector core number: 5P
Request Quote
Description Review
Description

M8 3 Pin 4 Position 5 Pole 6 8 Pos Male to Female Cable, Straight Overmolded Connector Cable Product Description

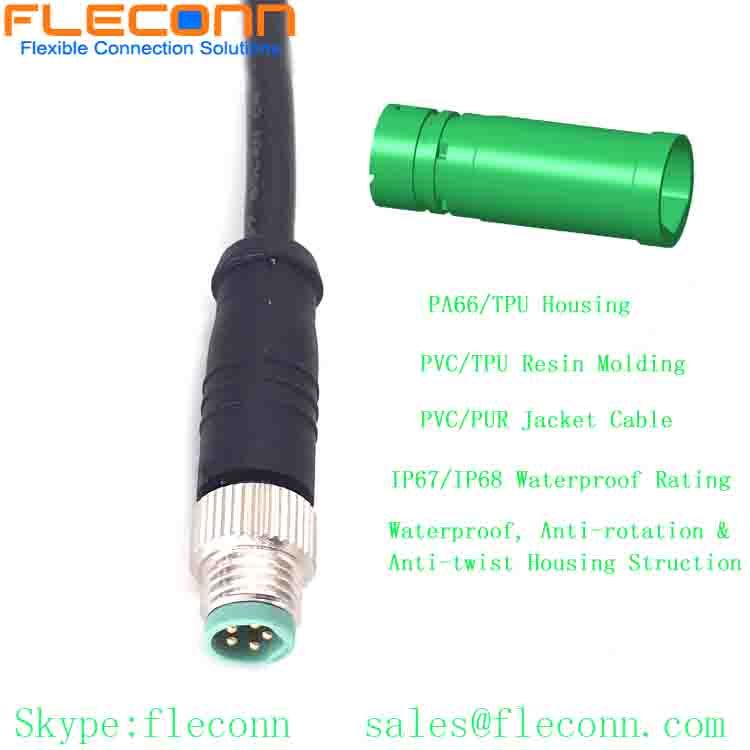

M8 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. We commonly use PVC, SR-PVC, PP, PE and other materials for selection. The matching M8 board end connectors (sockets) include electronic wire welding type and PCB board pin type. The M8 board end welding type can be welded electronic wire and resin potting package according to customer's reservation requirements.

M8 5 Pole Male to Female Cable, Straight Overmolded Connector Cable product parameters



Product series: M8 Connector Cable Connector Gender: Male
Industry standard: IEC 61076-2-104 Connector core number: 5P
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-28AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Applicable current: 4A Connector conductor: copper gold plated
Applicable voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M8 5 Pos Male to Female Cable, Straight Overmolded Connector Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

M8 3 Pin 4 Position 5 Pole 6 8 Pos Male to Female Cable, Straight Overmolded Connector Cable

M8 B-coded 5Pin Male Plug Cable, Straight

M8 5 Pin Male to Male Cable, IP67 Waterproof B-coded Connector Cable,


M8 B-code 3 Pin 4 Position 5 Pole 6 8 Pos Male to Female Cable, Straight Overmolded Connector Cable


M8 B-coded 5 Pin Male to Male, Female to Female Double Ended Cable Cordsets Cable


M8 B-coding 5 Positions Male to Male Plug Cable, Straight Overmolded PVC Cable

M8 B-coded 5Pin Male to Female Connector Plug Cable, IP67 IP68 Wateproof Connector Cable Cordset

M8 B-code 5-Pole Male Cable, Straight Molded Connector Cable


Other M8 Molded Connector Cable

FLECONN can provide IP66 waterproof M8 molded cables for power and signal transmission connections.
