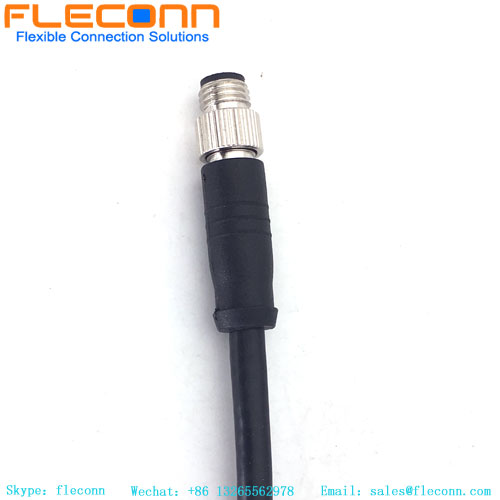

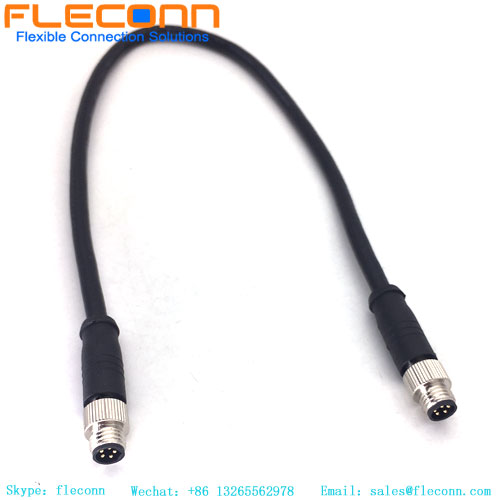

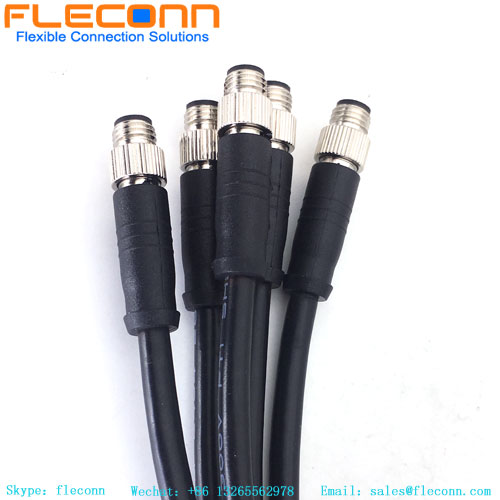

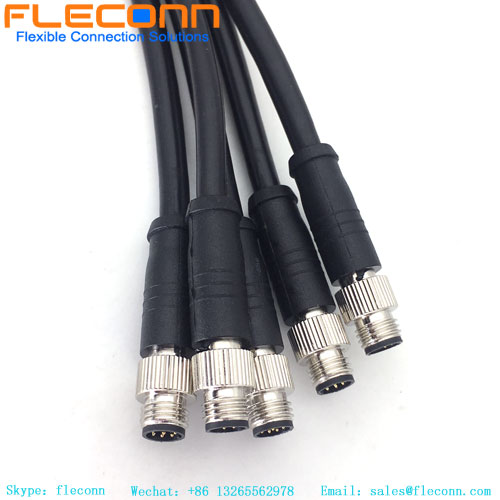

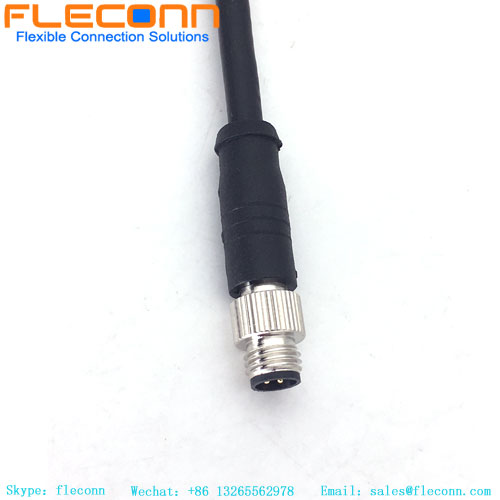

M8 5 Pin Extension Cable
M8 5 Pin Extension Cable M8 5 Pin Extension Cable M8 5 Pin Extension Cable M8 5 Pin Extension Cable M8 5 Pin Extension Cable

M8 5 Pin Extension Cable

Item No.: M8-BM-ST-SH-05P-2M-TPU
FLECONN can provide high quality overmolded straight and 90 degree right angle m8 5 pin extension cable .
Product series: M8 Connector Cable
Wire gauge: 22-28AWG
Connector Gender:  Female
Waterproof grade: IP67
Connector core number: 5P
Request Quote
Description
Description

M8 5 Pin Cable Product Description



M8 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. We commonly use PVC, SR-PVC, PP, PE and other materials for selection. The matching M8 board end connectors (sockets) include electronic wire welding type and PCB board pin type. The M8 board end welding type can be welded electronic wire and resin potting package according to customer's reservation requirements.

M8 5 Pin Cable, Industry Automation Connector Cable product parameters



Product series: M8 Connector Cable Connector Gender: Male
Industry standard: IEC 61076-2-104 Connector core number: 5P
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Wire gauge: 20-28AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 3A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M8 5 Pin Sensor Cable, Industry Automation Control System Connector Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

M8 5 Pin Extension Cable

M8 5 Pin Cable

M8 5 Pin Connector Cable


M8 5 Pin Extension Cable

M8 5 Pin Male Cable


M8 5 Pin Shielded Cable



Other M8 Molded Connector Cable

FLECONN can provide IP66 waterproof M8 molded cables for power and signal transmission connections.
