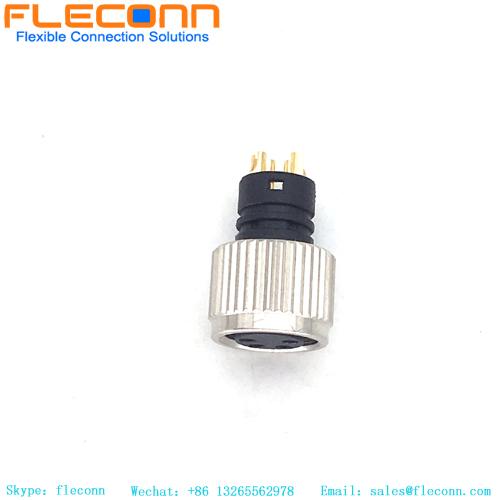

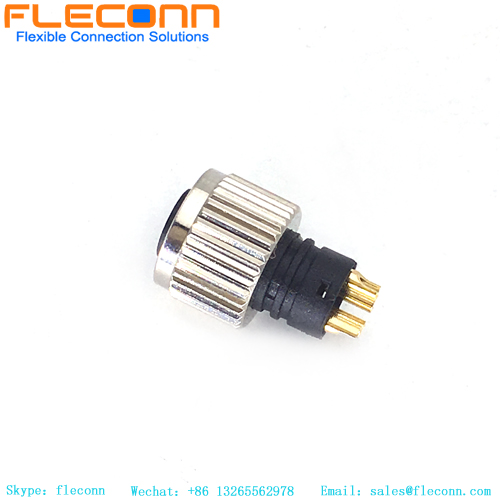

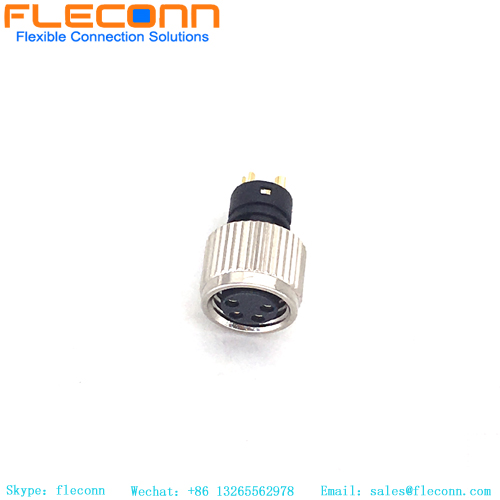

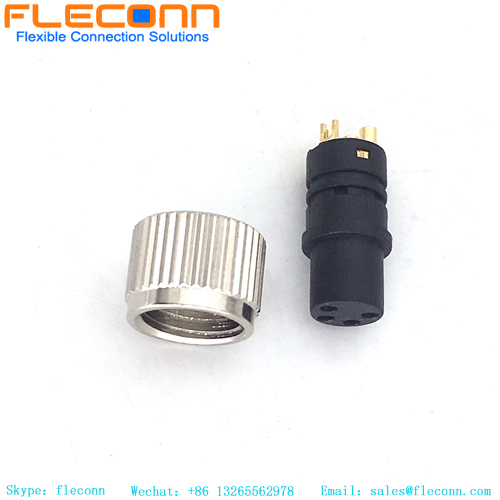

M8 4 Pos Female Molded Socket
M8 4 Pos Female Molded Socket M8 4 Pos Female Molded Socket M8 4 Pos Female Molded Socket M8 4 Pos Female Molded Socket M8 4 Pos Female Molded Socket

M8 4 Pos Female Molded Socket

Item No.: 00523
roduct series: M8 Molded Connector
Connector code: A-Coded
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 4  Pin
Plug Guide: Straight
Request Quote
Description Review
Description

M8 4 Pin Overmolded Socket Description



FLECONN could supply various m8 male and female panel mount connectors. These m8 circular connectors may be classified as straight and 90 degree right angle m8 panel mount connectors, shielded and unshielded pcb panel mount connectors, front and rear panel mount, front and rear fasten screw thread, wire solder pin and DIP solder pin connectors. There are 3 4 5 6 8 pin / pole / positions male and female m8 panel mount connectors available for connection systems of various sensor, industry automation equipment, robot and machine.


M8 4 Pin Female Solder Wire Connector parameters



Product series: M8 Molded Connector  Connector Gender: Female
Connector code: A-coded Connector core number: 4Pin
Industry standard: IEC61076-2-101 Connector type: Molded  Connector
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ




M8 4 Pos Female Molded Socket

M8 4 Pos Female Molded Socket

M8 4 Pole Molded Cable, Solder Wire Type


M8 4 Pin Female Solder Wire Connector

M8 4 Pin Overmolded Socket


M8 4 Pin Molded Cable Connector

Other M8 Panel Mount Connector With Free Wire Leads

FLECONN can provide various m8 3 4 5 6 8 pin male and female front and rear panel mount connector with free wire leads for sensors.

Other M8 Panel Mount Connector

M8 connector is classified as m8 field wireable cable connector, m8 molded cable connector, m8 pcb connector, m8 panel mount connector with wire solder cup terminals
