M8 4 Pin Male Panel Mount Connector Cable Connector Product Description
FLECONN could supply various m8 male and female panel mount connectors. These m8 circular connectors may be classified as straight and 90 degree right angle m8 panel mount connectors, shielded and unshielded pcb panel mount connectors, front and rear panel mount, front and rear fasten screw thread, wire solder pin and DIP solder pin connectors. There are 3 4 5 6 8 pin / pole / positions male and female m8 panel mount connectors available for connection systems of various sensor, industry automation equipment, robot and machine.
M8 4 Pin Male Panel Mount Connector Cableproduct parameters
Product series: M8 Panel Mount Connector |
Connector Gender: Male |
Connector code: A-code |
Connector core number: 4-pole |
Industry standard: IEC61076-2-101 |
Connector type: Panel mount |
Plug Guide: Straight |
Terminal Material: Copper |
Waterproof grade: IP67 |
Applicable temperature: -20°- +80° |
Adapter wire gauge: 22AWG-26AWG |
Connection method: threaded connection |
Rated current: 4A |
Connector conductor: copper gold plated |
Rated voltage: 60V |
Insulation resistance: ≥100mΩ |
Sealing method: O type sealing ring |
Conductor resistance: ≤5mΩ |
The Applications for M8 4 Pin Male Panel Mount Connector with customized length of wire leads
●Sensors, actuators, encoders, motors |
●Industrial grating light curtains |
●Factory automation process control |
●Equipment battery, semiconductor |
●Package label printing equipment |
●Fieldbus: DeviceNet, CANopen, etc. |
●Industrial instruments and equipment |
●NMEA 2000 ship electronics, rail transit |
●EMS circuit board assembly |
●LED outdoor display, outdoor LED lighting |

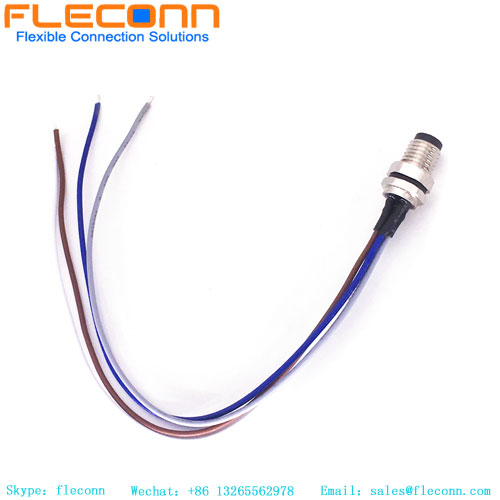

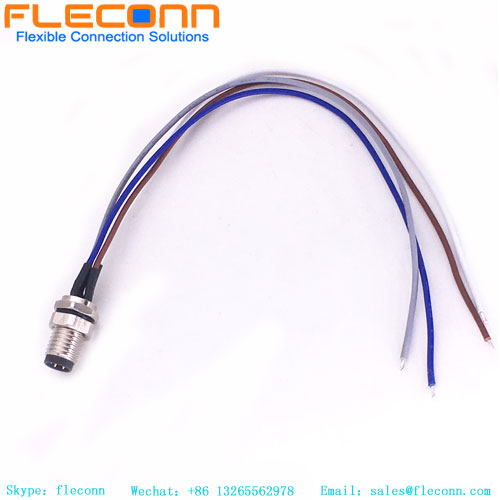

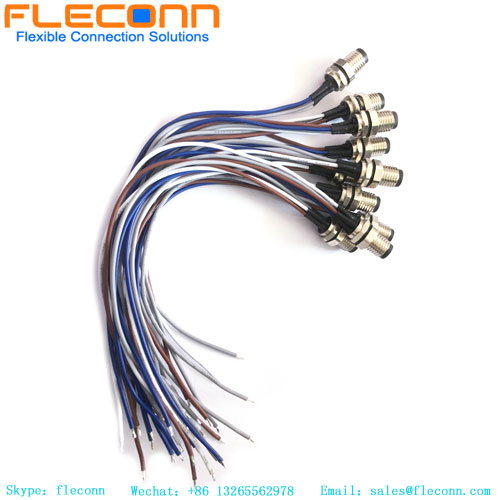

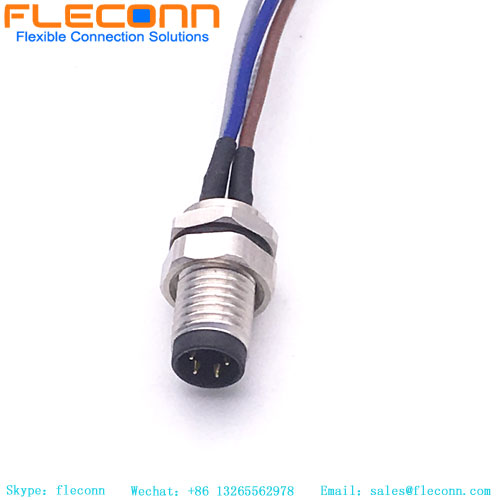

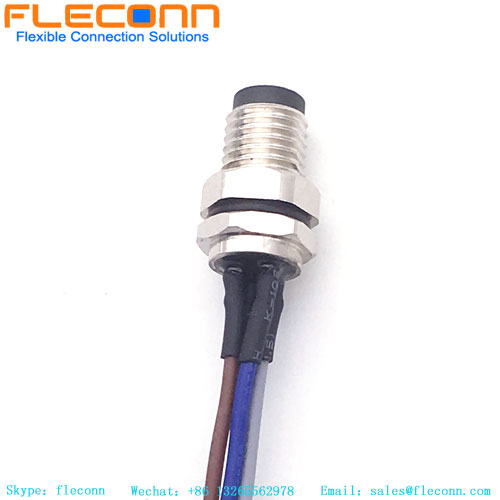

M8 4 Pin Male Front Fastened Panel Mount Connector with soldered wires Picture
