M8 4 Pin Female Cable

Item No.: M8-AF-RA-04P-1M-TPU

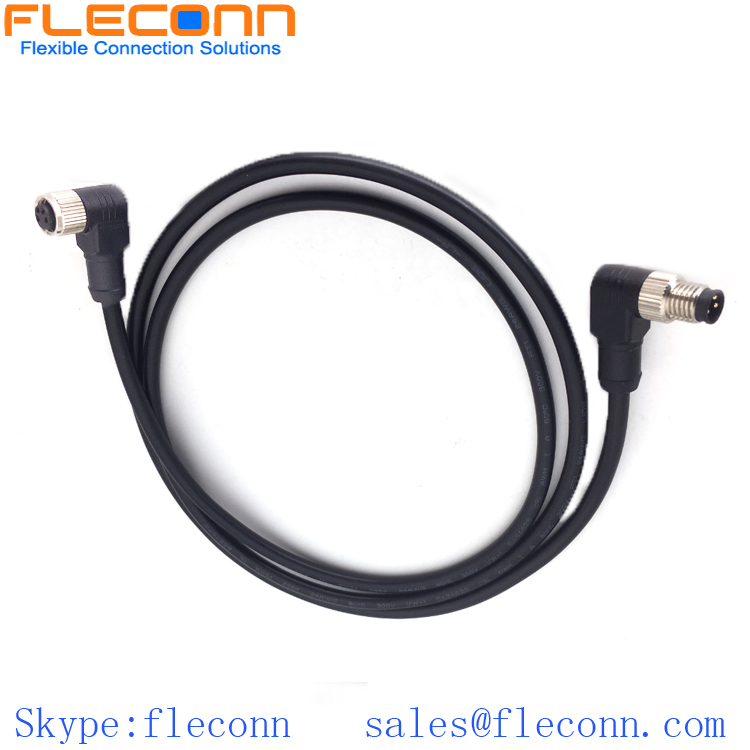

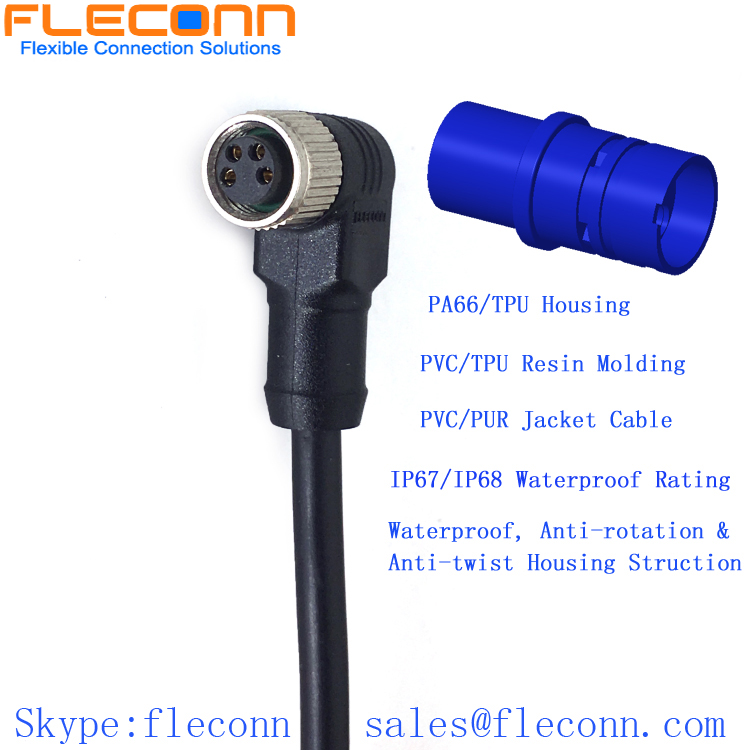

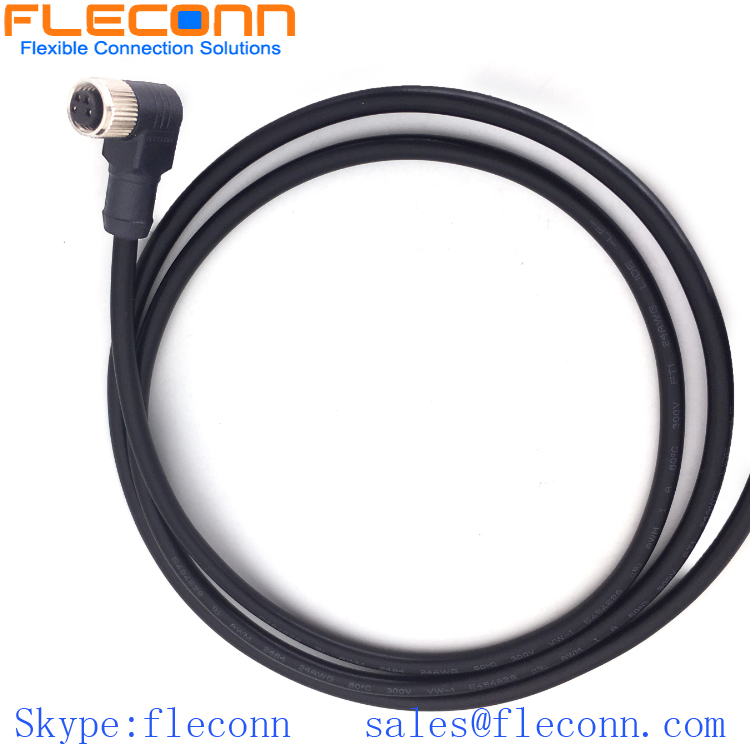

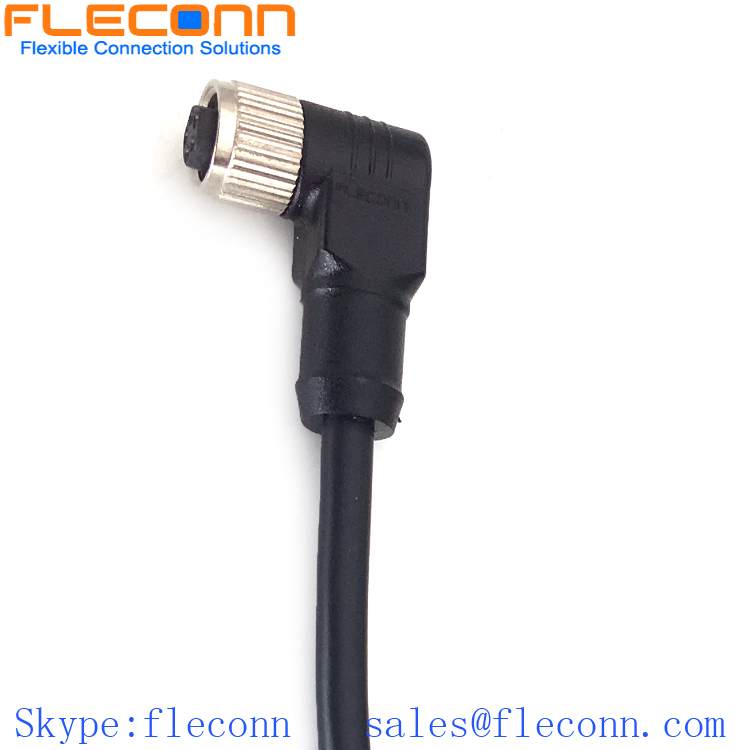

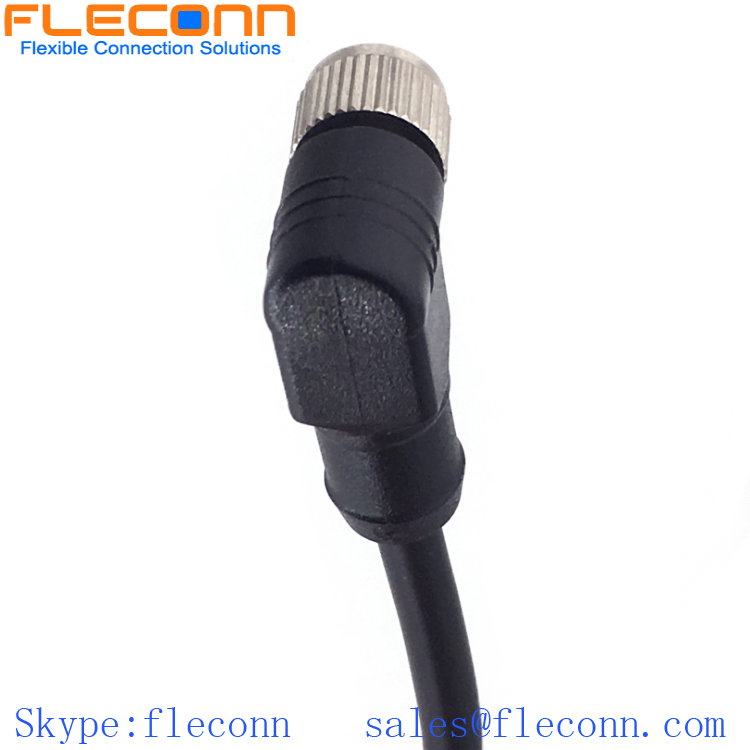

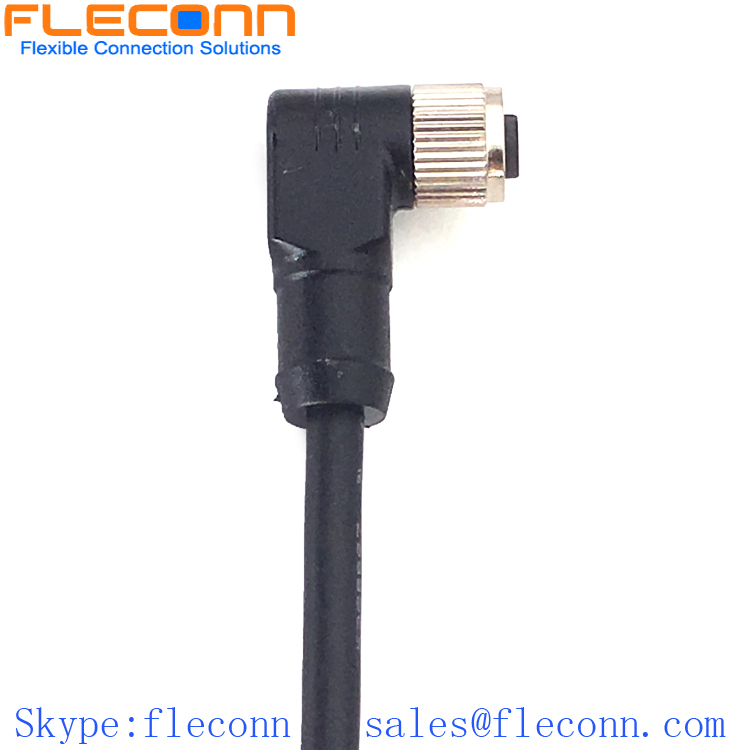

FLECONN can produce straight and right angle m8 4 pin female cable for various signal sensor.
Product series: M8 Cable Assembly
Wire gauge: 22-26AWG
Connector Gender: Female
Waterproof Rating: IP67
Contact number: 4Pin
Plug Guide: Right Ange
Description Review
Description

M8 4 Pin Female Cable Product Description

 What's M8 4 Pin Female Cable

An M8 4 Pin Female Cable is a type of circular connector cable that belongs to the M8 connector series (8 mm thread size). It is widely used in industrial automation, sensors, actuators, and robotics for transmitting signals or power.

Here’s a breakdown:

1. Connector Type

  • M8 → Refers to the metric size (8 mm diameter thread).

  • 4 Pin → Has four electrical contacts for carrying signals or low power.

  • Female → The connector has sockets (holes) to accept the pins of a male connector.

2. Structure

  • One end: M8 female circular connector (with 4 sockets).

  • Other end: Often an M8 male connector, open wires, or other interfaces (like M12, RJ45, etc.), depending on the application.

  • Cable: Shielded or unshielded, PVC, PUR, or TPE jacket depending on environment.

3. Applications

  • Sensors & Actuators → For connecting proximity switches, photoelectric sensors, encoders.

  • Industrial Automation → Signal transmission between machines and controllers (PLC, I/O modules).

  • Robotics → Data and small power supply to robotic components.

  • Measurement & Control Systems → For compact devices needing reliable, vibration-resistant connections.

4. Key Features

  • Compact size for tight spaces.

  • Threaded coupling ensures secure, vibration-proof connection.

  • Rated for IP65/IP67 (dustproof and waterproof) in most industrial versions.

  • Carries low-voltage signals or small amounts of power (typically 60–250 V, 1–4 A depending on design).

✅ Example: An M8 4 Pin Female Cable to Open End is often used to wire a sensor directly into a control cabinet.


M8 4-Pin Female Connector Pinout (IEC 61076-2-104 standard)

Pin No. Wire Color (Typical) Function
1 Brown +V (Supply)
2 White Signal 2 / Data (optional)
3 Blue 0V (Ground)
4 Black Signal 1 / Data

M8 4 Pin 90 Degree Angle Cable product parameters




Product series: M8 Connector Cable Connector Gender: Female
Industry standard: IEC 61076-2-104 Connector core number: 4Pole
Plug Guide: Right Angle Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
Wire cover: PVC/PUR


M8 4 Pin Overmoulded Female Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M8 4 Pin Connector Cable
M8 4 Pin Female Connector Cable, 90 Degree Angle Overmoulded M8 Sensor Cable

M8 4-Position 90 Degree Angle Molded Female Connector Cable


M8 4-Pole Right Angle Female Cable, Circular Aviation Connector


M8 4 Pin Male to Female Right Angle Overmoulded Cable, IP67 IP68 Waterproof Plug Cordset


M8 4 Pin Right Angle Female Connector Cable

M8 4 Pos Right Angled Female Cable, IP67 IP68 Waterproof Connector


Other M8 Molded Connector Cable

FLECONN can provide IP66 waterproof M8 molded cables for power and signal transmission connections.
