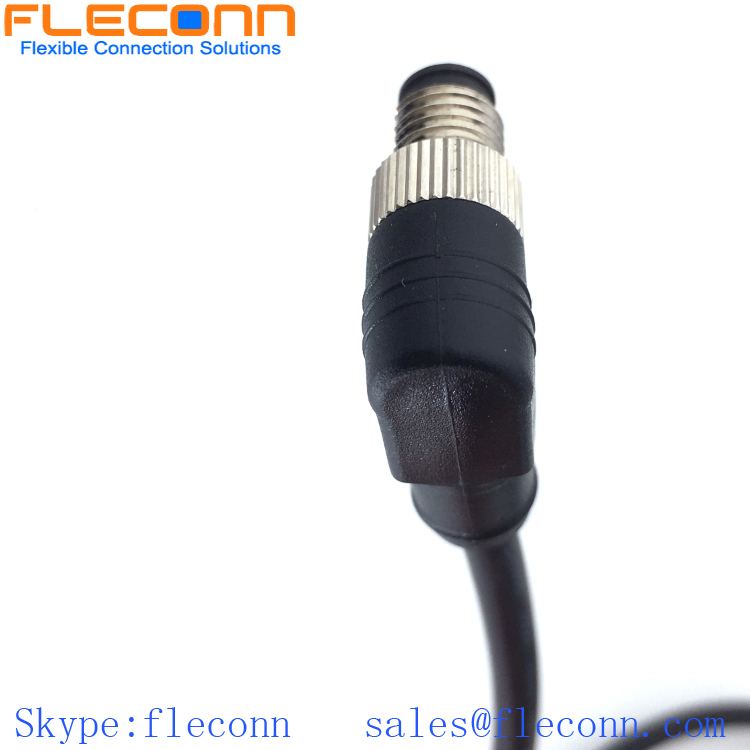

M8 4 Pin Cable
M8 4 Pin Cable M8 4 Pin Cable M8 4 Pin Cable M8 4 Pin Cable M8 4 Pin Cable M8 4 Pin Cable

M8 4 Pin Cable

Item No.: M8-AM-RA-04P-1M-TPU
FLECONN can produce straight and right angle male and female m8 4 pin cable for automation sensor.
Product series: M8 Cable Assembly
Wire gauge: 22-26AWG
Connector Gender: Female
Waterproof Rating: IP67
Contact number: 4Pin
Plug Guide: Right Angle
Request Quote
Description Review
Description

M8 4 Pin Cable Product Description



M8 molded cable connector (plug) product, the connector parts and the cable have been injection-molded together before leaving the factory. Our common wire material is PUR or PVC outer jacket material cable, and the internal core wire is required according to the terminal application of the product. We commonly use PVC, SR-PVC, PP, PE and other materials for selection. The matching M8 board end connectors (sockets) include electronic wire welding type and PCB board pin type. The M8 board end welding type can be welded electronic wire and resin potting package according to customer's reservation requirements.

M8 4 Pin 90 Degree Angle Cable product parameters



Product series: M8 Connector Cable Connector Gender: Male
Industry standard: IEC 61076-2-104 Connector core number: 4P
Plug Guide: Right Angle Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Wire gauge: 20-28AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M8 4 Pin Male Connector Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

M8 4 Pin Male Connector Cable

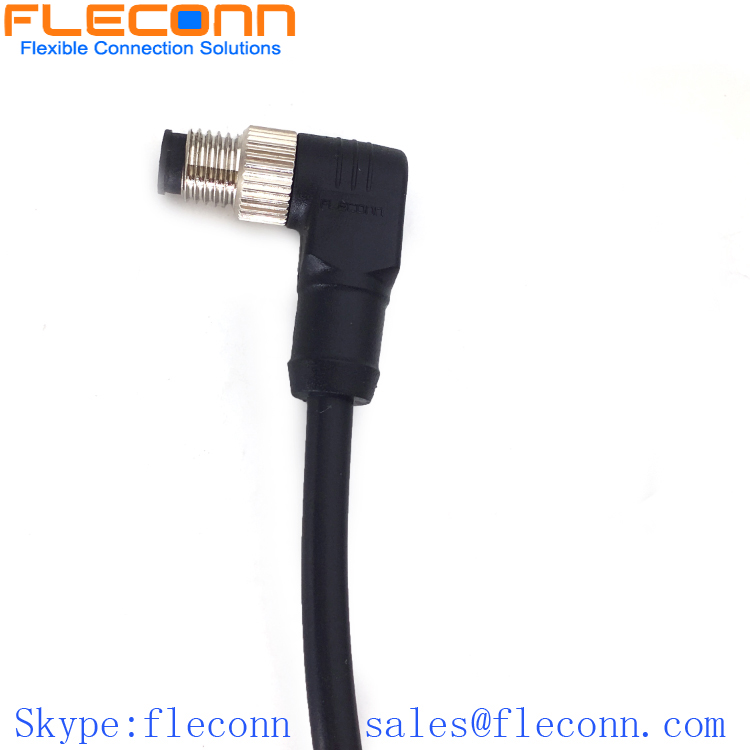

M8 4 Pin 90 Degree Angle Overmoulded Male Connector Cable

IP67 Waterproof M8 Right Angle Connector Cable 3 4 5 6 8 Pin Available

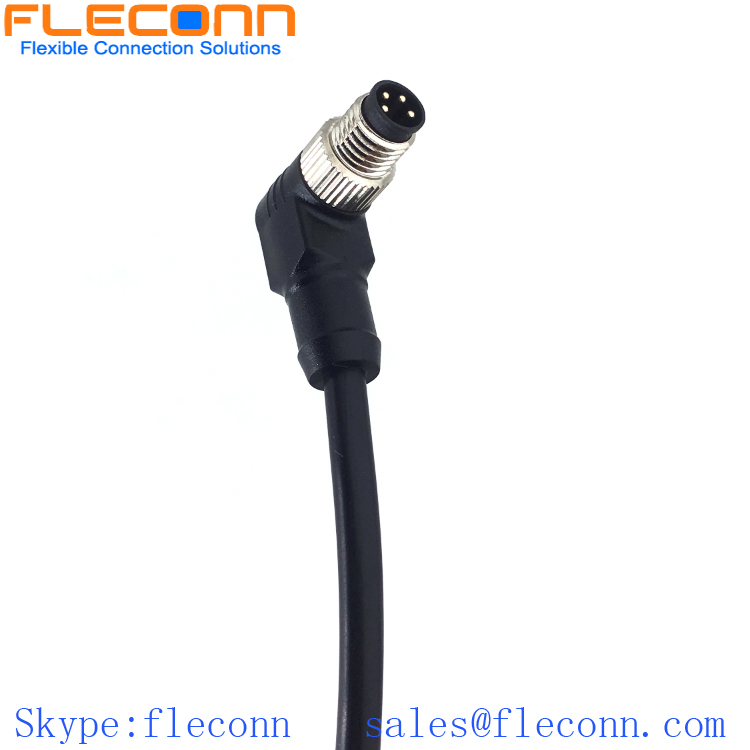

M8 4-Pole Male Right Angle Molded Cable

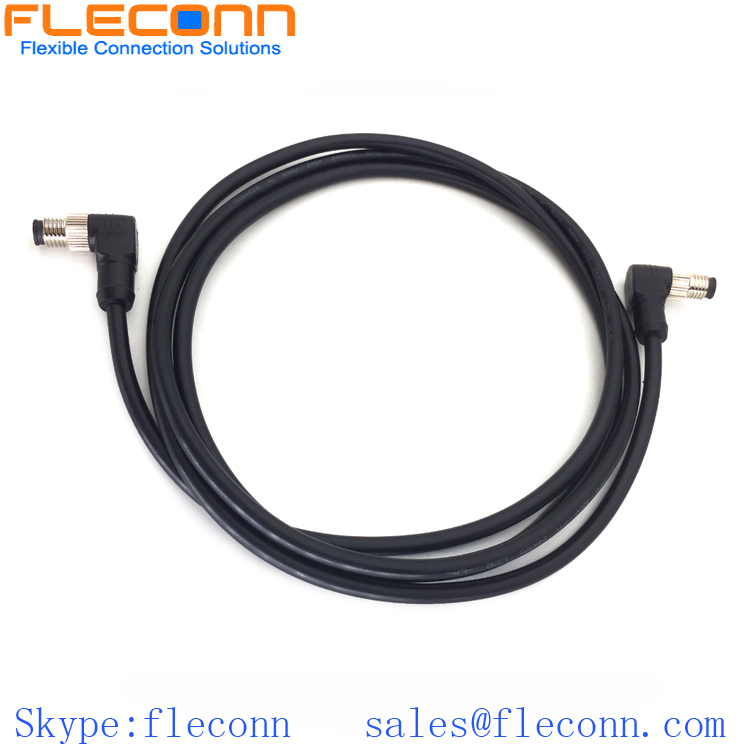

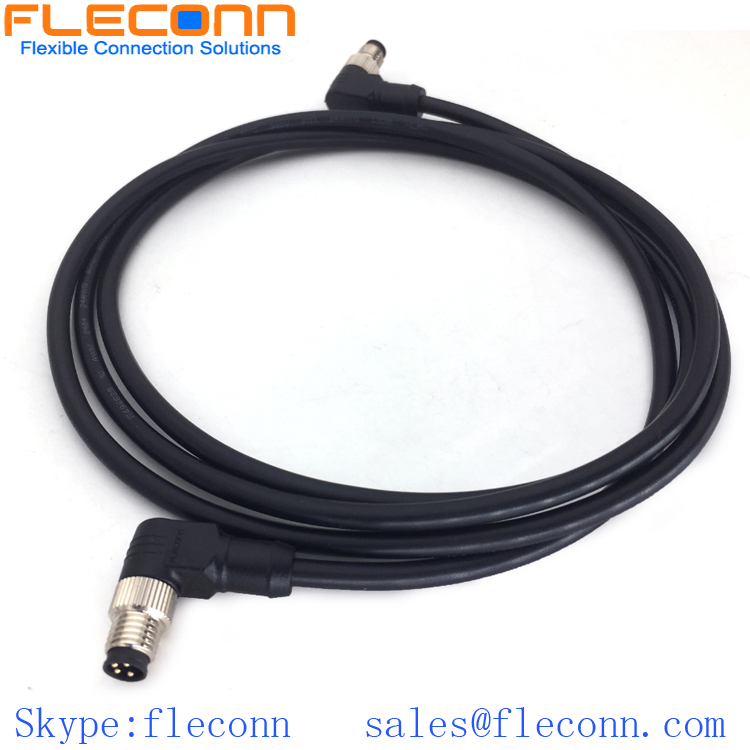

M8 Male to Male Cable, 90 Degree Angle Molded Connector Cable Assembly


M8 4 Pin Position Male to Male Cable, Right Angle, IP67 IP68 Waterproof Rating

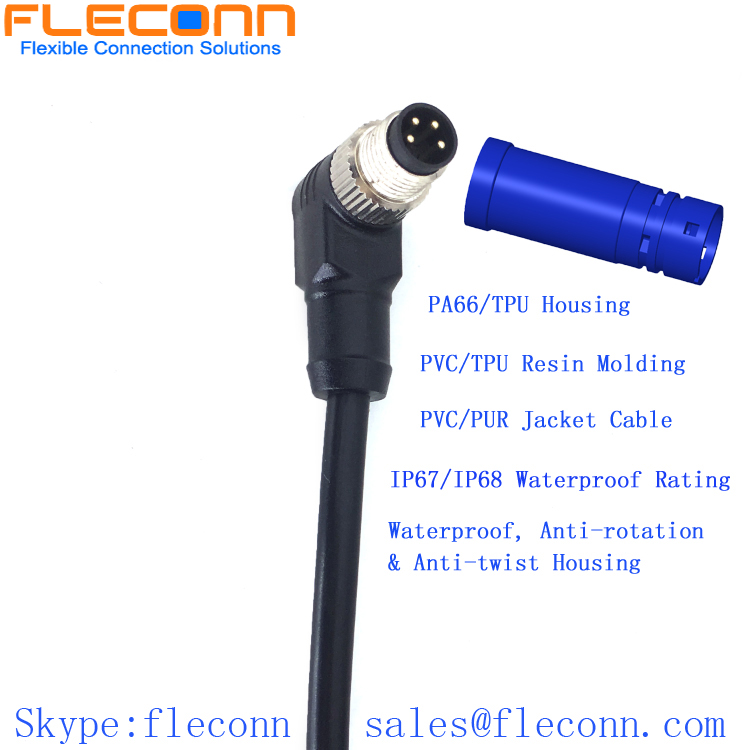

IP68 Waterproof M8 4 Pin Male Connector Cable, 90 Degree Angle TPU Molded Connector Cable


Other M8 Molded Connector Cable

FLECONN can provide IP66 waterproof M8 molded cables for power and signal transmission connections.
