M8 3 pin Y Splitter One Male And Two Female Connector
M8 3 pin Y Splitter One Male And Two Female Connector M8 3 pin Y Splitter One Male And Two Female Connector M8 3 pin Y Splitter One Male And Two Female Connector M8 3 pin Y Splitter One Male And Two Female Connector M8 3 pin Y Splitter One Male And Two Female Connector

M8 3 pin Y Splitter One Male And Two Female Connector

Item No.: M8-F-3P-M-3P-F-3P-Y
Product series: M8 Connector
Connector code: A-Coded
Connector Gender: 1 Male To 2 Female
Waterproof grade: IP67
Connector core number: 3P To 3P
Plug Guide: Straight
Request Quote
Description Review
Description

M8 3 pin Y splitter one male and two female connector Product Description



FLECONN can supply 3 pin male plug and 4 pole m8 female cable connector. These m8 field wireable cable connectors may be used for for connecting sensor and industry automation systems by field assembling and installing with various lenght cables.

M8 3 Pin Y Splitter Connector Waterproof IP67 product parameter



Product series: M8 Connector Connector Gender: Male To Female
Connector code: A-Coded Connector core number: 3P To2*3P
Industry standard: IEC61076-2-101 Connector type: Field assembly
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


Custom M8 3Pin Y Type Female To Male Connector Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

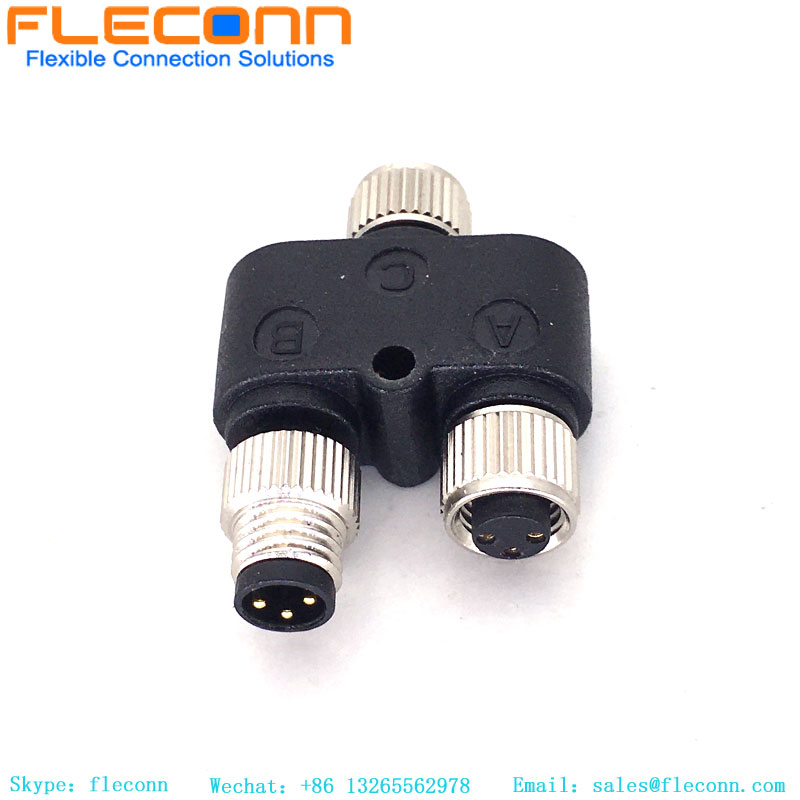

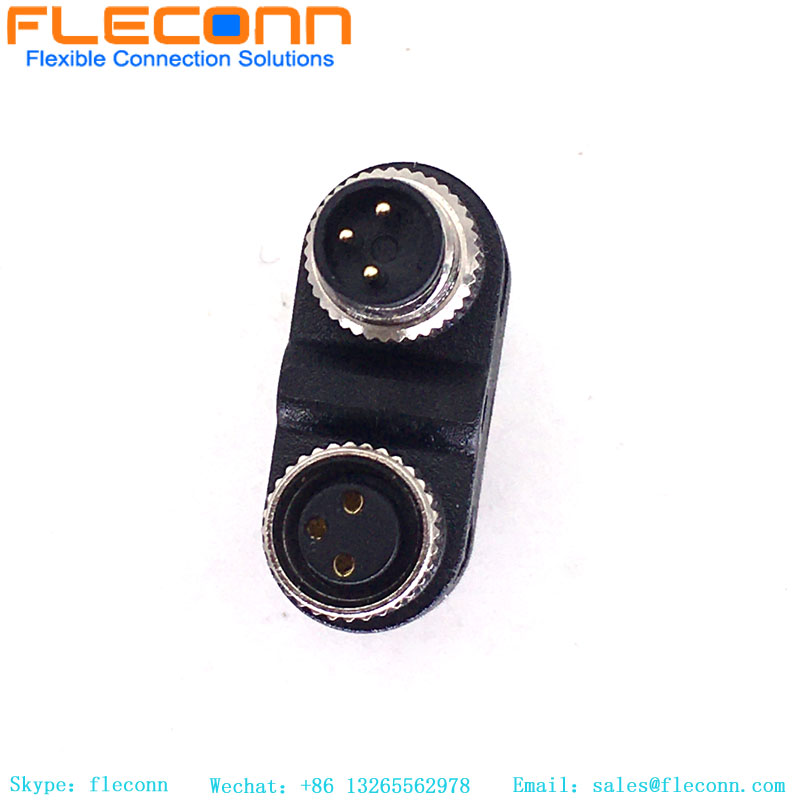

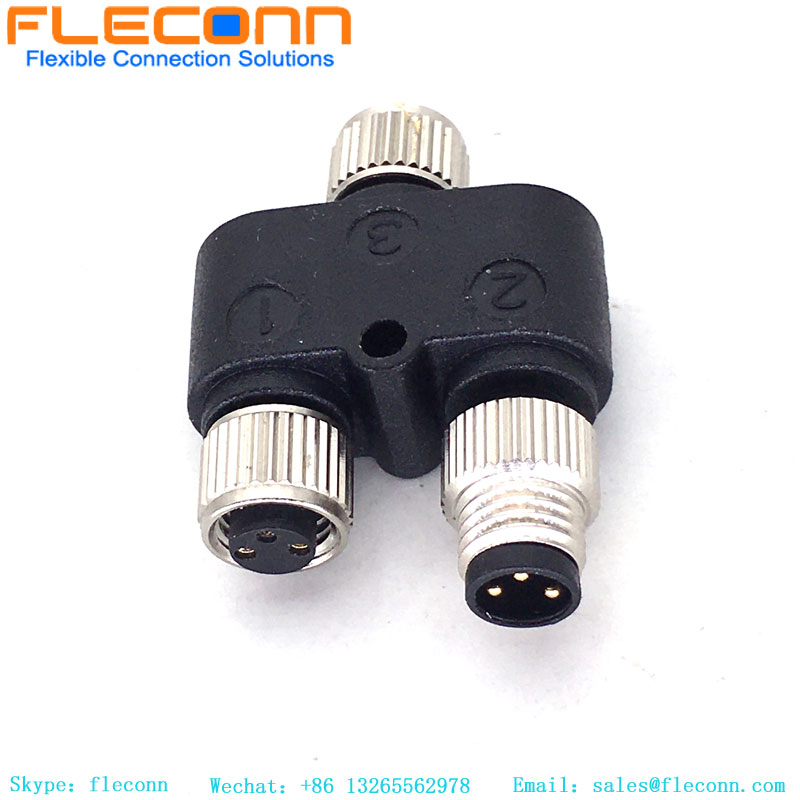

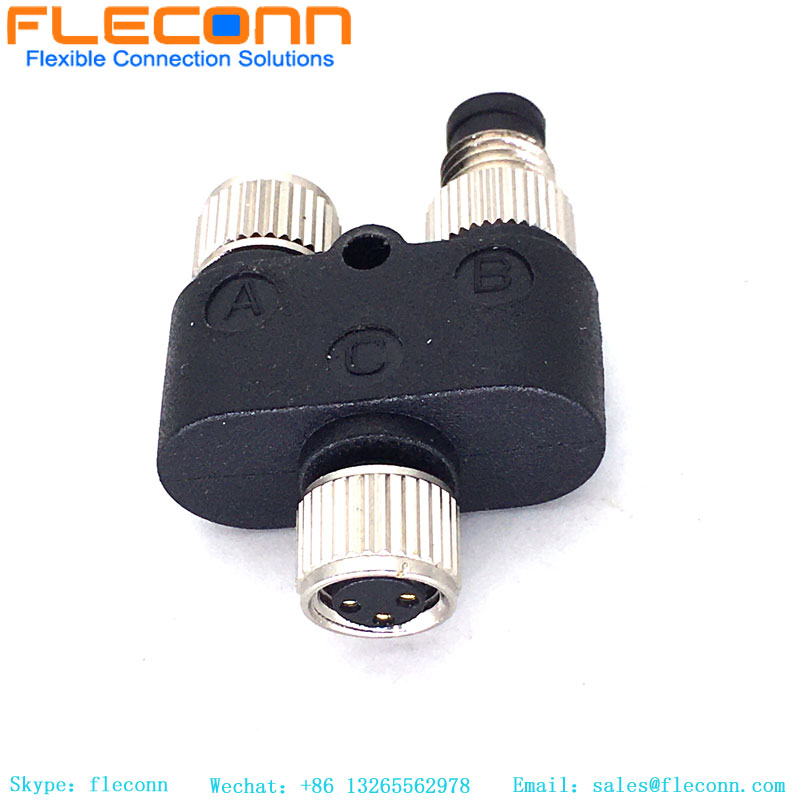

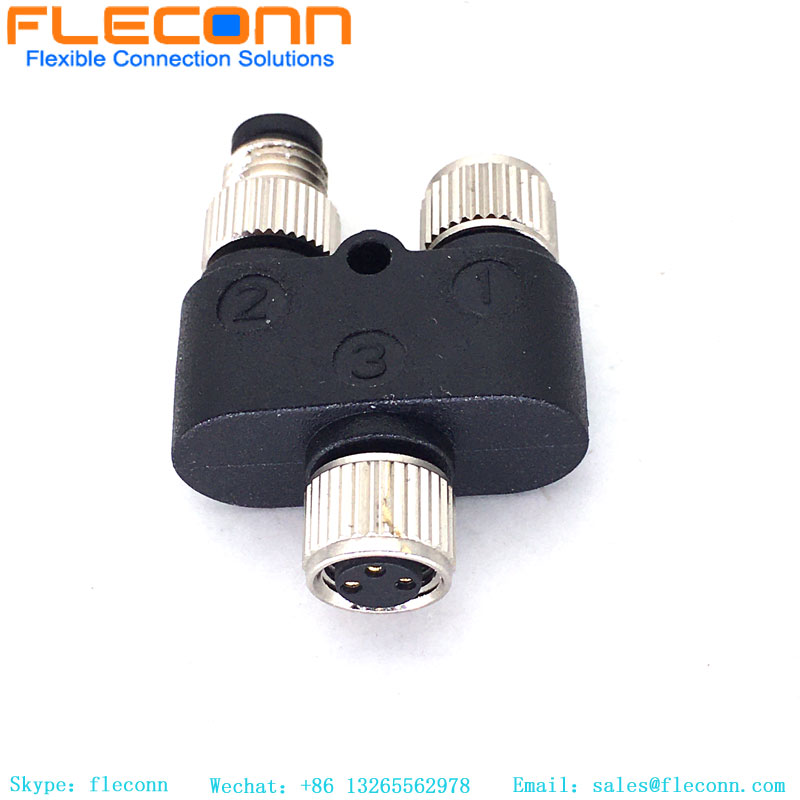

M8 3 pin Y Splitter One Male And Two Female Connector Picture
m8 B Coded 3 Pin Field-Attachable Connector Straight Plug


M8 5 Pin Female Y Type Connector

M8 5 Pin Cable Connector Male to Double Female Adapter Splitter

M8 Y Type 5 Pin Sensor Cable Connector

M8 5 Pin Y Type Splitter

Other M8 Connector

FLECONN can provide IP66 waterproof M8 3Pin Connector for power and signal transmission connections.
