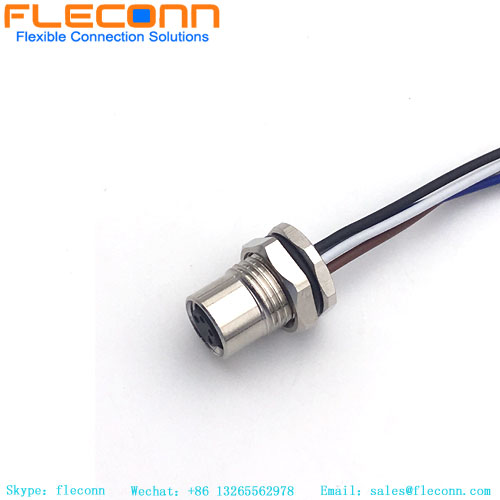

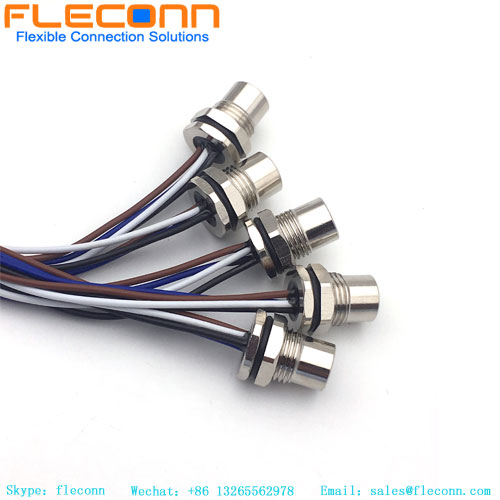

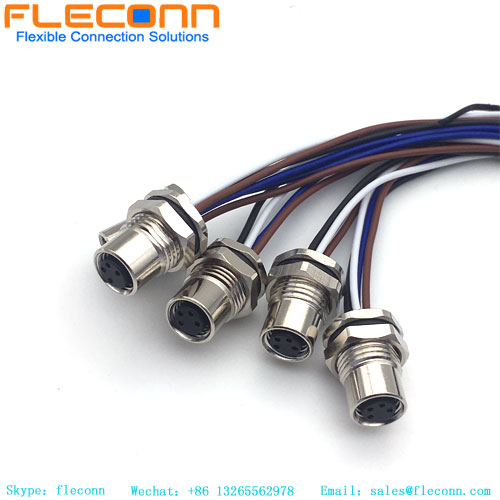

M8 Female Panel Mount Connector Front Fastened With Single Wires
M8 Female Panel Mount Connector Front Fastened With Single Wires M8 Female Panel Mount Connector Front Fastened With Single Wires M8 Female Panel Mount Connector Front Fastened With Single Wires M8 Female Panel Mount Connector Front Fastened With Single Wires M8 Female Panel Mount Connector Front Fastened With Single Wires

M8 Female Panel Mount Connector Front Fastened With Single Wires

Item No.: M8-B-F-ST-PCB-04P-200MM
Product series: M8 Panel Mount Connector
Connector code: A-coded, B-coded Available
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 3 Pin 4Pin 5Pin 6Pin 8Pin Available
Plug Guide: Straight
Request Quote
Description Review
Description

M8 Female Panel Mount Connector Front Fastened With Single Wires Product Description



FLECONN could supply various m8 male and female panel mount connectors. These m8 circular connectors may be classified as straight and 90 degree right angle m8 panel mount connectors, shielded and unshielded pcb panel mount connectors, front and rear panel mount, front and rear fasten screw thread, wire solder pin and DIP solder pin connectors. There are 3 4 5 6 8 pin / pole / positions male and female m8 panel mount connectors available for connection systems of various sensor, industry automation equipment, robot and machine.


M8 3 4 5 6 8 Pin Female Panel Mount Connector product parameters



Product series: M8 Panel Mount Connector Connector Gender: Female
Connector code: A-code Connector core number: 4 pin, 4-pole
Industry standard: IEC61076-2-101 Connector type: Panel mount
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 3A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M8 3 4 5 6 8 Pin Female Panel Mount Connector Cable with pigtails Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

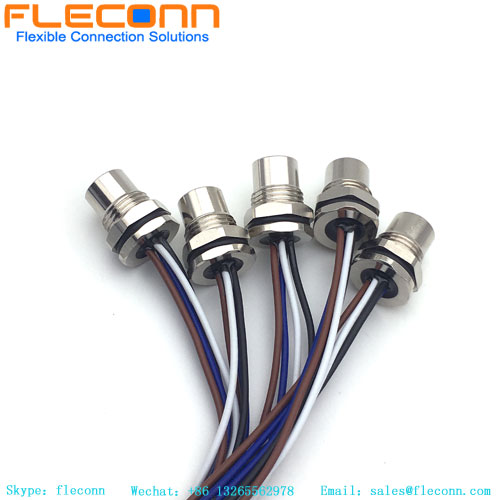

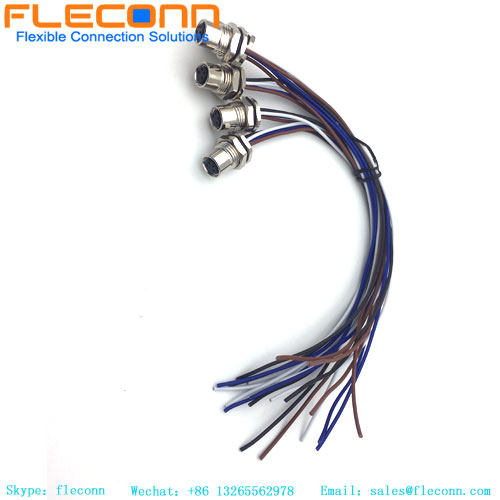

M8 Female Front Fastened Panel Mounting Connector with single wires Picture

4 Pin IP67 waterproof female socket With Cable panel mount cable M8 connector


4 Pin Sensor Cable M8 Panel Mount Connector

M8 Panel Mount Connector 4 Pin Female With 30cm M8 Front Panel Mounting Cable


M8 Panel Mount Socket Female MaleInWaterproof Cable Connector

Other M8 Panel Mount Connector With Free Wire Leads

FLECONN can provide various m8 3 4 5 6 8 pin male and female front and rear panel mount connector with free wire leads for sensors.

Other M8 Panel Mount Connector

M8 connector is classified as m8 field wireable cable connector, m8 molded cable connector, m8 pcb connector, m8 panel mount connector with wire solder cup terminals
