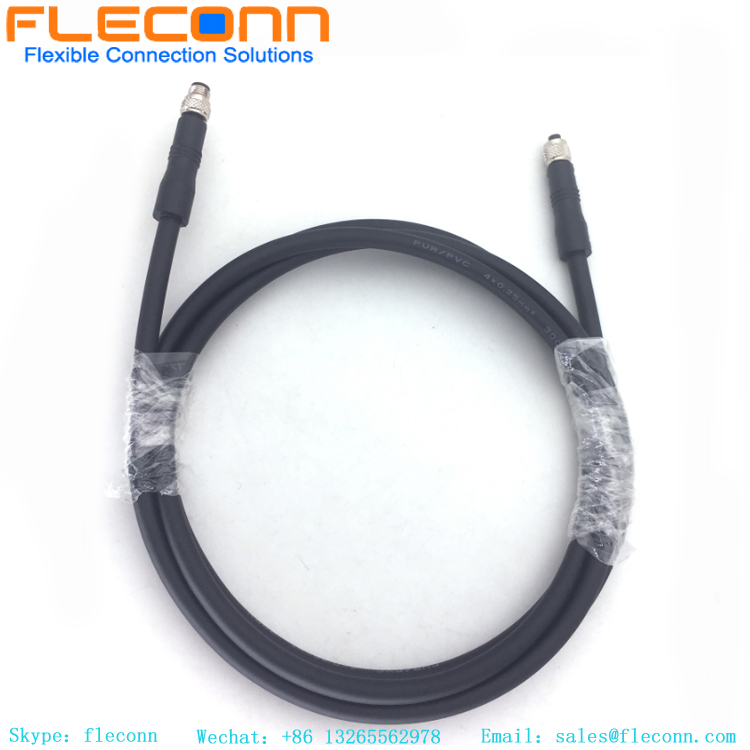

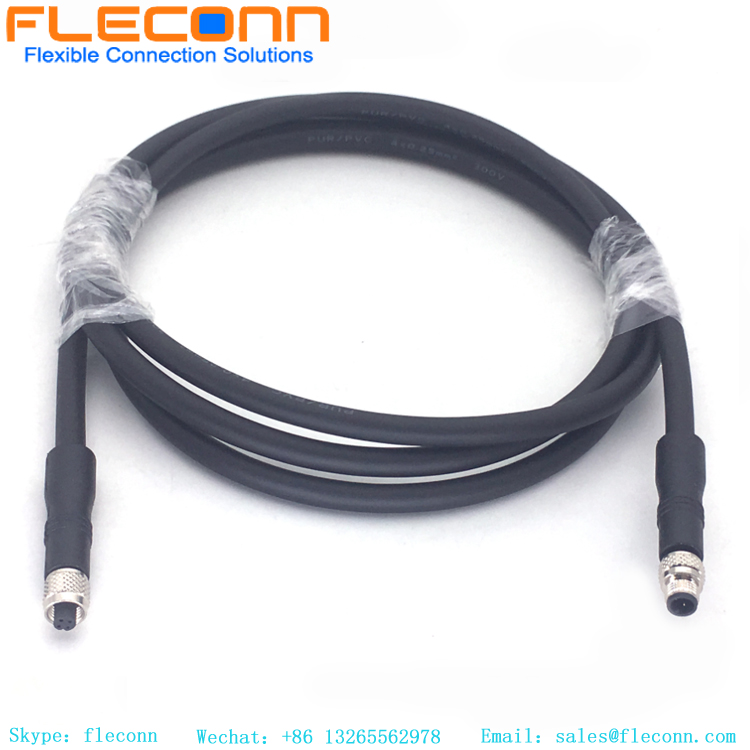

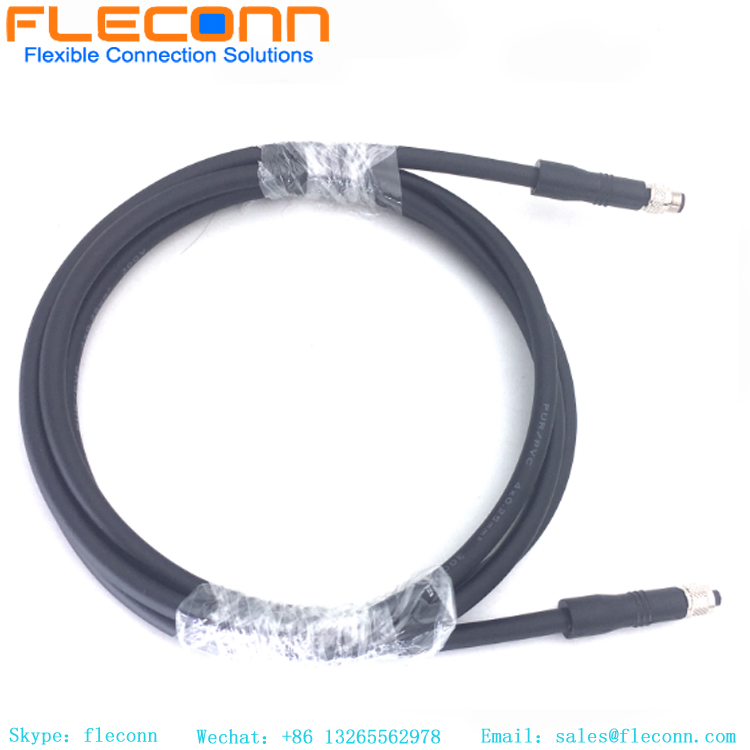

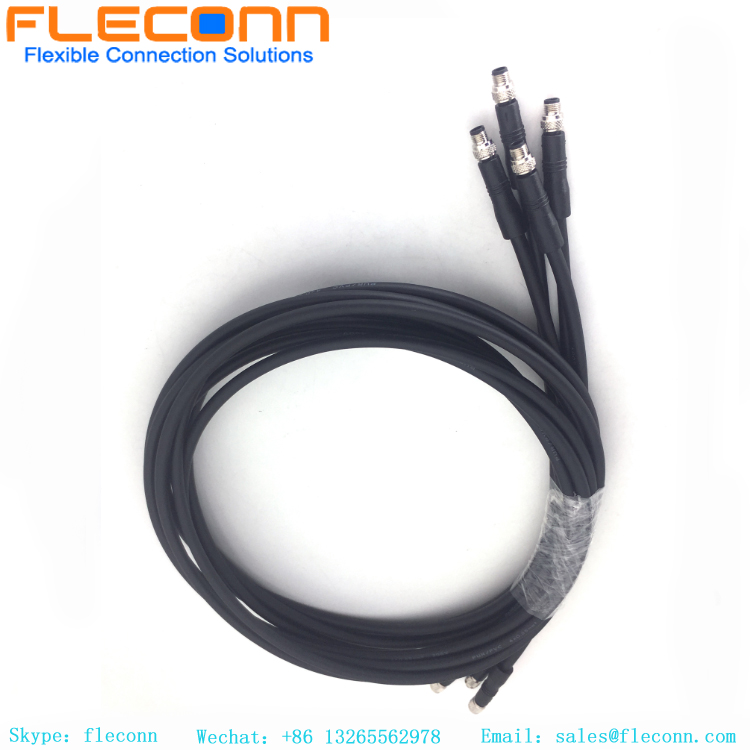

M5 4 Pin Male to Female Cable, IP67 IP68 Protection Rating
M5 4 Pin Male to Female Cable, IP67 IP68 Protection Rating M5 4 Pin Male to Female Cable, IP67 IP68 Protection Rating M5 4 Pin Male to Female Cable, IP67 IP68 Protection Rating M5 4 Pin Male to Female Cable, IP67 IP68 Protection Rating

M5 4 Pin Male to Female Cable, IP67 IP68 Protection Rating

Item No.: M5-AM-ST-04P-2M-PVC
Product series: M5 Connector Cable
Wire gauge: 24-28AWG
Connector Gender:  Female
Waterproof grade: IP67
Connector core number: 4P
Plug Guide: Straight
Request Quote
Description Review
Description

M5 4 Pin Male to Female Cable, IP67 IP68 Protection Rating Product Description



M5 connectors can be used in waterproof electrical connections such as outdoor and underground LED light. The mated male and female m5 connector connection solution has a good seal and reliable connection function in terms of material, plastic using high temperature nylon, CTI above 120 degrees, on the hardware terminal using high fatigue resistance, phosphor or beryllium copper alloy material, electroplating using gold plating process, corrosion resistance, plug performance is very excellent, waterproof ring using fluorine glue, extremely cold resistance to minus 40 degrees, high temperature resistance above 150 degrees, waterproof performance, environmental performance is very strong, is the industrial use more mature products.

M5 4 Pin Male to Female Cable, IP67 IP68 Protection Rating product parameters



Product series: M5 Connector Cable Connector Gender: Female
Industry standard: IEC 61076-2-105 Connector core number: 4P
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Wire gauge: 24-28AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 1.5A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M5 4 Pin Male to Female Cable, IP67 IP68 Protection Rating Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M5 4 Pin Male to Female Cable, IP67 IP68 Protection Rating

M5 2 3 4 Pin Male to Male, Female to Female Double Ended Molding Cable Assembly

M5 2P 3P 4P Male to Female Cable, 1M 2M 3M PUR Sensor Cable


M5 4 Pin Male to Female Cable, IP67 IP68 Protection Rating


M5 2 Pos 3 Contact 4 Pole Male to Female Sensor Cable


Other M5 Connector Cable

M5 connectors can be applied in sensor and actuator connection from brake, industrial camera and automatic control system etc..
