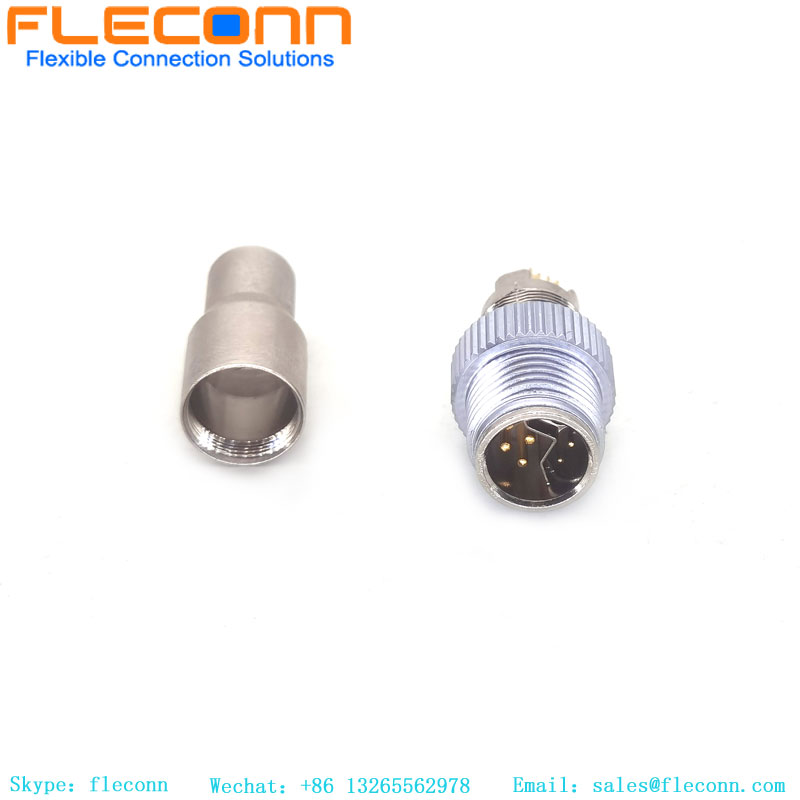

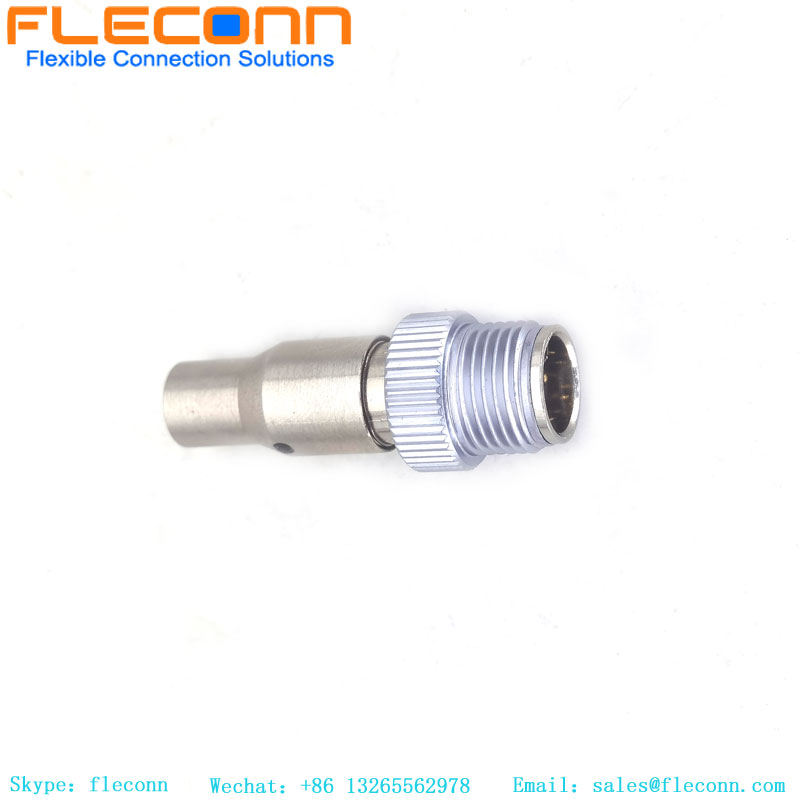

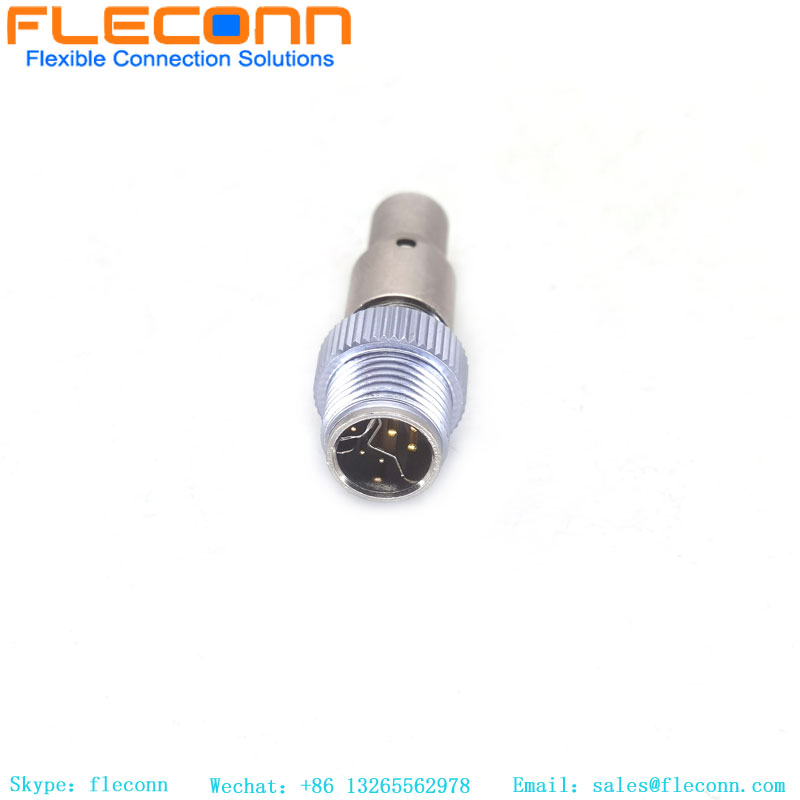

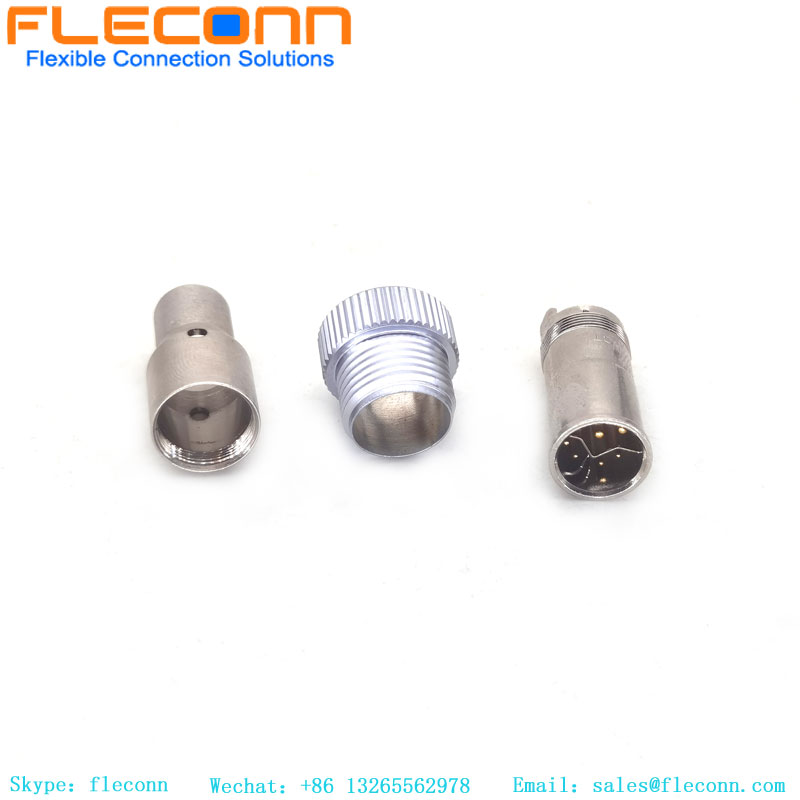

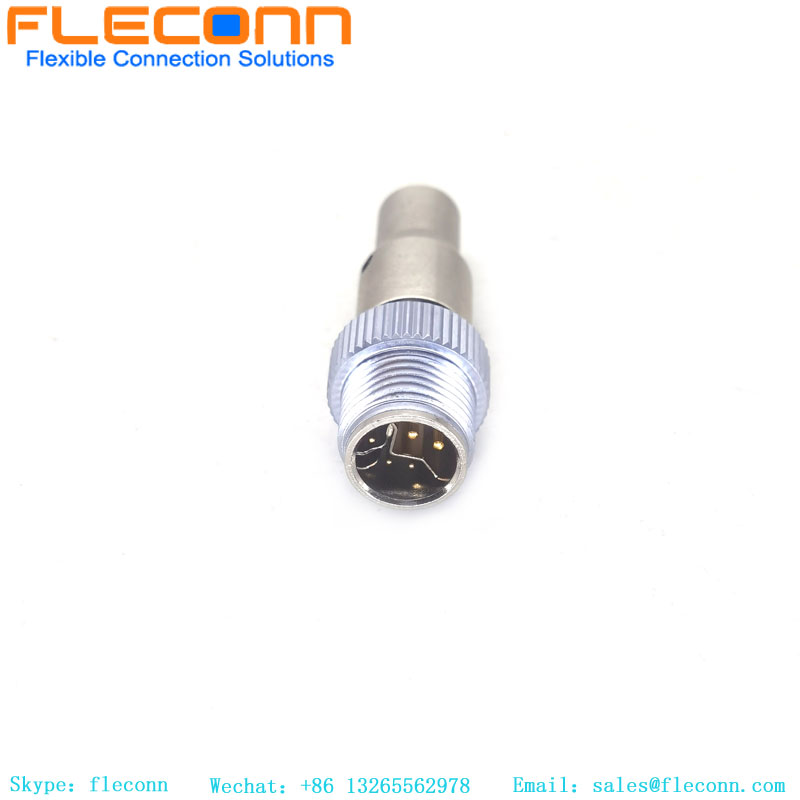

M12 Y-Coded Molded Cable Connector
M12 Y-Coded Molded Cable Connector M12 Y-Coded Molded Cable Connector M12 Y-Coded Molded Cable Connector M12 Y-Coded Molded Cable Connector M12 Y-Coded Molded Cable Connector

M12 Y-Coded Molded Cable Connector

Item No.: 00866
Product series: M12 Molded Connector
Connector code: Y Coded
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 8 Pin
Plug Guide: Straight
Request Quote
Description Review
Description

M12 Y-Coded Molded Cable Connector

M12 Molded Cable Connector， B-Code Straight 5pin Female Non-shield connector

The Fleconn M12 Y-Coded Molded Cable Connector is specially designed for industrial automation, Power over Ethernet (PoE), and high-speed data transmission applications. Its Y-coding design separates power and data signals, ensuring stable and reliable performance in both high-current supply and high-frequency data communication. With an overmolded construction, it provides enhanced durability and IP67 protection, making it widely used in robotics, factory automation, sensors, and industrial Ethernet systems.

Features:

  • Interface: M12 Y-Coded, compliant with IEC 61076-2-113
  • Pin Configuration: 8 Pin (4 power + 4 data)
  • Rated Current: up to 6A (power pins)
  • Rated Voltage: 63V (data) / 50V (power)
  • Protection Degree: IP67, waterproof and dustproof
  • Structure: Overmolded design, strain relief
  • Applications: PoE devices, industrial automation, smart manufacturing, communication systems

    M12 8 Pins X-Code Plug Shielded Molding Circular Connector Technical Data

    Technical data
    parameter category parameter name parameter data
    Mechanical and Electrical Reference standard IEC 61076-2-101
    Rated current 3A
    Rated voltage 60V
    Impulse voltage 100V
    Contact resistance ≤5mΩ
    Insulation resistance ≥10MΩ
    EMC Shielding Full shielding
    Locking system M12 × 1.0mm screw
    Tightening torque Recommended: 1.0 Nm
    Max: 1.2 Nm
    Material Terminal material Phosphor bronze
    Contact plating Au (Gold)
    Insert PA66+GF, Black
    Overmold TPU, Black
    Screw nut Brass, CNC
    Screw nut plating Nickel plated
    O-ring FKM
    Cable UL AWM style UL2464
    Conductor material Stranded Tinned Copper
    Conductor cross-section 20AWG&22AWG
    Wire colors White-Orange/Orange, White-Green/Green, White-Blue/Blue, White-Brown/Brown
    Sheath/insulation material PVC or PUR, black
    Outer diameter Ø7.2 ± 0.2mm
    Cable length 1000mm ±50 (Including Connector)
    Environmental Rated temperature Static: -40° ~ 80℃
    Dynamic: -25° ~ 80℃
    Protection degree IP67
    Environmental Compliance ROHS
    Pollution degree 3
