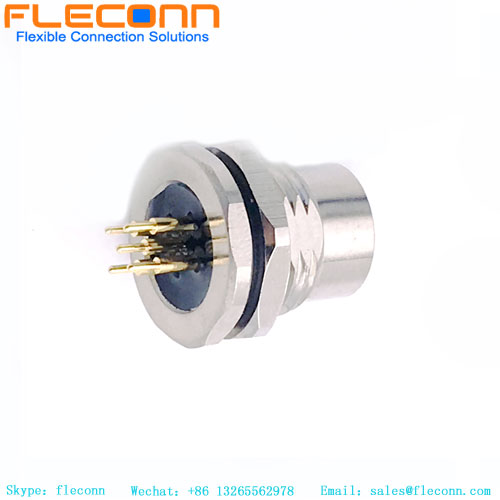

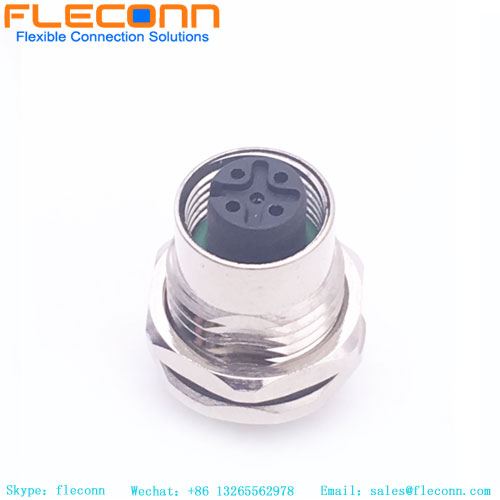

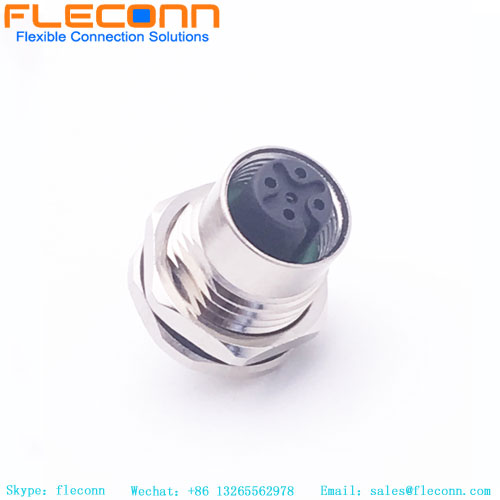

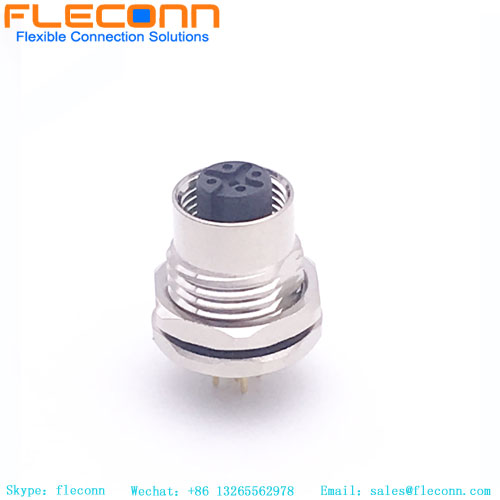

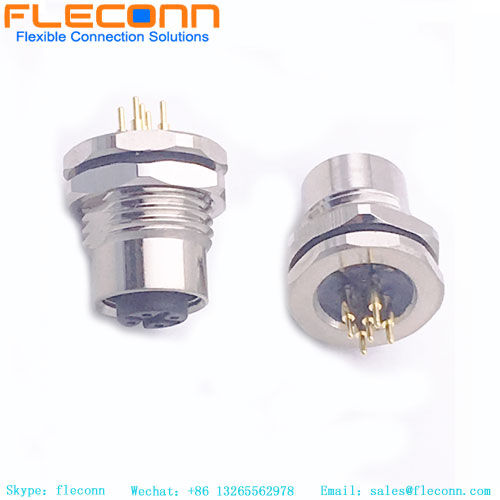

M12 Connector PCB Mount, 3 4 5 6 8 12 17 Pin A-coded Female Receptacle
M12 Connector PCB Mount, 3 4 5 6 8 12 17 Pin A-coded Female Receptacle M12 Connector PCB Mount, 3 4 5 6 8 12 17 Pin A-coded Female Receptacle M12 Connector PCB Mount, 3 4 5 6 8 12 17 Pin A-coded Female Receptacle M12 Connector PCB Mount, 3 4 5 6 8 12 17 Pin A-coded Female Receptacle M12 Connector PCB Mount, 3 4 5 6 8 12 17 Pin A-coded Female Receptacle

M12 Connector PCB Mount, 3 4 5 6 8 12 17 Pin A-coded Female Receptacle

Item No.: M12-A-F-PM-ST-05P-04
FLECONN can supply Waterproof m12 connector pcb mount, 3 4 5 6 8 12 17 pin a-coded female receptacle for power and signal transmission.
Coding: A-code
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 5P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 Waterproof Panel Mount Connector Product Description



M12 panel mount connector with 3 4 5 6 8 12 17 Pin male plug and female socket and gold-plated contacts available can be provided by FLECONN. In order to determine the direction of the angled cable outlet of the mating connector,  we can provide 90 degree right angled M12 panel mount connectors with 4, 5 and 8 position in wire solder pin and PCB DIP solder pin. When completely mated the connectors are IP67 rated to ensure protection from liquids and dust.


M12 Panel Mount Connector product parameters



Product series: M12 Panel Mount Connector Connector Gender: Female
Connector code: A-code Connector core number: 5P
Industry standard: IEC61076-2-109 Connector type: Panel type, front lock
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M12 Connector PCB Mount Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M12 Connector PCB Mount, 3 4 5 6 8 12 17 pin a-coded female receptacle
M12 5-Pole PCB Panel Mount Receptacle,Female Socket, Rear Panel Mount


M12 Rear Front Panel Mount Connector


FLECONN can supply front fastening 5-pole female m12 pcb mount connector

FLECONN can supply waterproof female 5 pin m12 pcb panel mounting connectors

M12 5 Pin A-coded PCB Panel Connector

Other M12 Panel Mount Connector

FLECONN can provide high quality 180 degree straight 3 pin 4 pin 5 pole 6 positions 8 pin male and female a-code b-code c-code d-code l-code k-code s-code t-code x code m12 pcb panel mount connector with PG9 and m16x1.5 front and rear fastening thread.
