Home > M5 M8 M12 M16 Connector & Cable Assembly > M12 Cable-3 4 5 6 8 12 17 Pin Male and Female Connector Cable > M12 D-coded Connector Cable

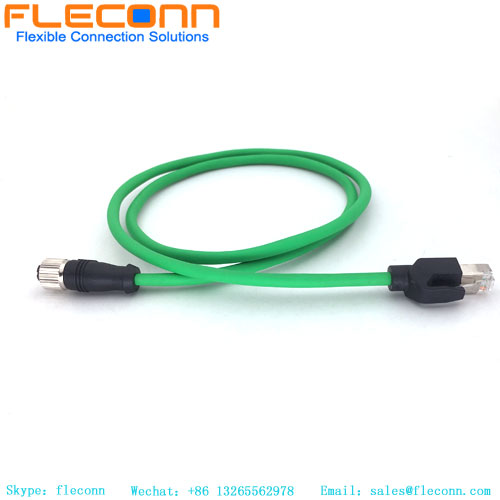

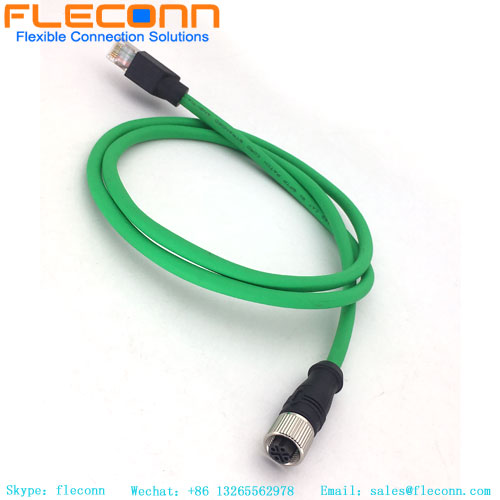

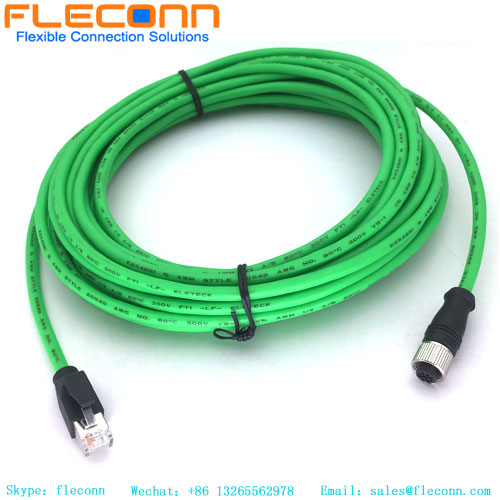

M12 To RJ45 Cable
M12 To RJ45 Cable M12 To RJ45 Cable M12 To RJ45 Cable M12 To RJ45 Cable

M12 To RJ45 Cable

Item No.: M12DF-RJ45-ST-04P-24A-PVC-1M
Product series: M12 Connector Cable
Connector code: D-coded
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 4P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 To RJ45 Cable Product Description


The M12 to RJ45 cable is a reliable industrial Ethernet solution designed to connect industrial devices with M12 connectors to standard RJ45 Ethernet ports. It is widely used in industrial automation, machine vision, robotics, sensors, and factory networking where high reliability and environmental resistance are required.
The M12 connector side (commonly D-coded or X-coded) provides secure locking, vibration resistance, and protection against dust, moisture, and harsh industrial conditions. The RJ45 side ensures easy integration with standard Ethernet switches, PLCs, IPCs, and network equipment.
This cable supports stable high-speed data transmission and is ideal for applications requiring robust connections, long service life, and dependable performance in industrial environments.


M12 4 Position D-Coded to RJ45 Ethernet Cable product parameters



Product series: M12 Connector Cable Connector Gender: Female
Connector code: D-Coded type Connector core number: 5P
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR


M12 4 Position D-Coded to RJ45 Ethernet Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

M12 To RJ45 Cable

M12 Female To Rj45 Cable

M12 4 Position D-Coded to RJ45 Ethernet Cable， Cat6 Shielded High Flex Industrial Network

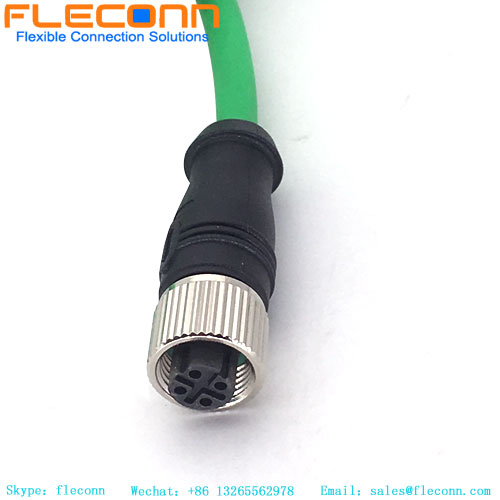

M12 4 Pos D-coded Female Connector Cable

M12 4 Position D-Coded Female to RJ45 Cable Assembly, Cat6 SFTP 24 AWG with Green PUR Jacket

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
