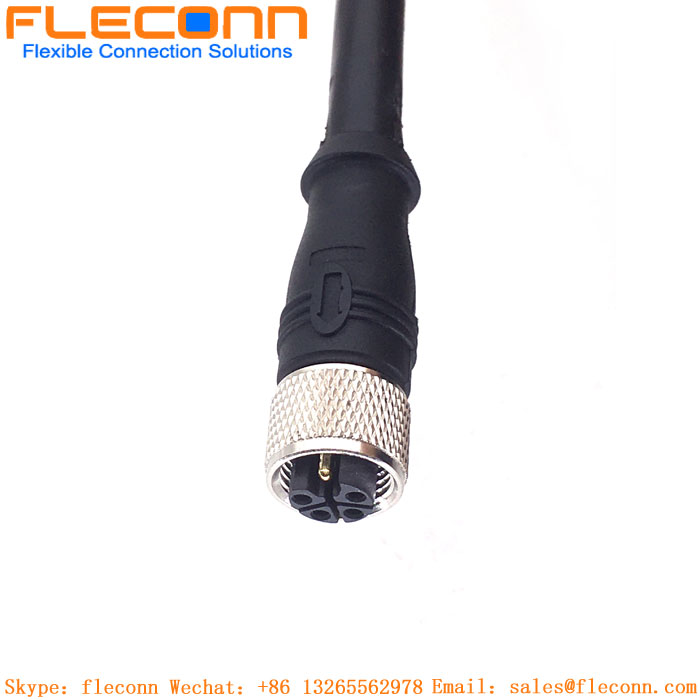

M12 L-Coded Female Connector Cable Description

The M12 L-Coded Female Connector Cable is a type of M12 female connector used for high-power applications, particularly in industrial automation systems. The m12 L-coding is designed to deliver high-current power and is used in systems that require more power than typical M12 connectors, often in combination with data or signal transmission.

Summary of M12 L-Coded Female Connector Cable Features:

Pin Count: M12 L-coded female connectors generally come in 4 pins (3+PE) or 5 pins (4+PE).

Conductor Size: The cables typically use AWG 14 or AWG 16 conductors to handle higher current loads without overheating.

Insulation: The cables are generally insulated with PVC, TPE, or PUR (Polyurethane). PUR is often preferred in flexible applications due to its abrasion resistance and ability to withstand harsh environmental conditions (oil, chemicals, etc.).

Shielding: In many cases, the cables may be shielded to protect against electromagnetic interference (EMI), ensuring stable power and signal transmission, especially in environments with high electrical noise.

Current Rating: Up to 16A of current for high-power devices.

Voltage Rating: Typically 24V DC, but can handle higher voltages in some configurations

Applications: Ideal for industrial automation, robotics, actuators, and motor-driven systems.

Durability: Shielded options available for environments with electromagnetic interference (EMI) or heavy machinery.

Temperature Range: Typically -25°C to +85°C, with some variants rated up to +105°C.

M12 L-Coded 4+PE Female Connector Cable product parameters

M12 4+PE Male To Female Connector Cable Applications
