M12 A Coded 5 Pin Cable

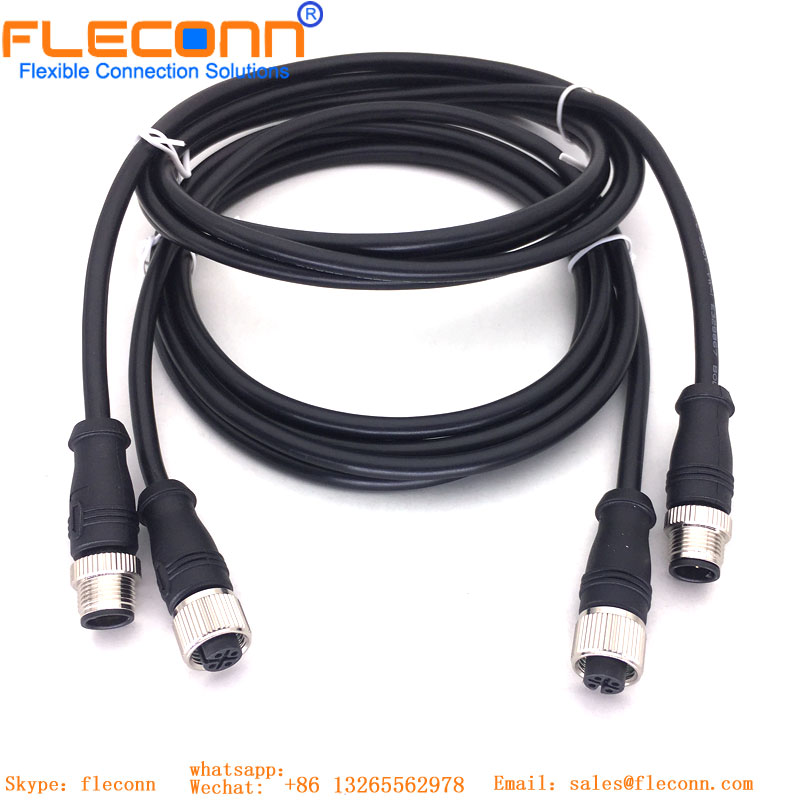

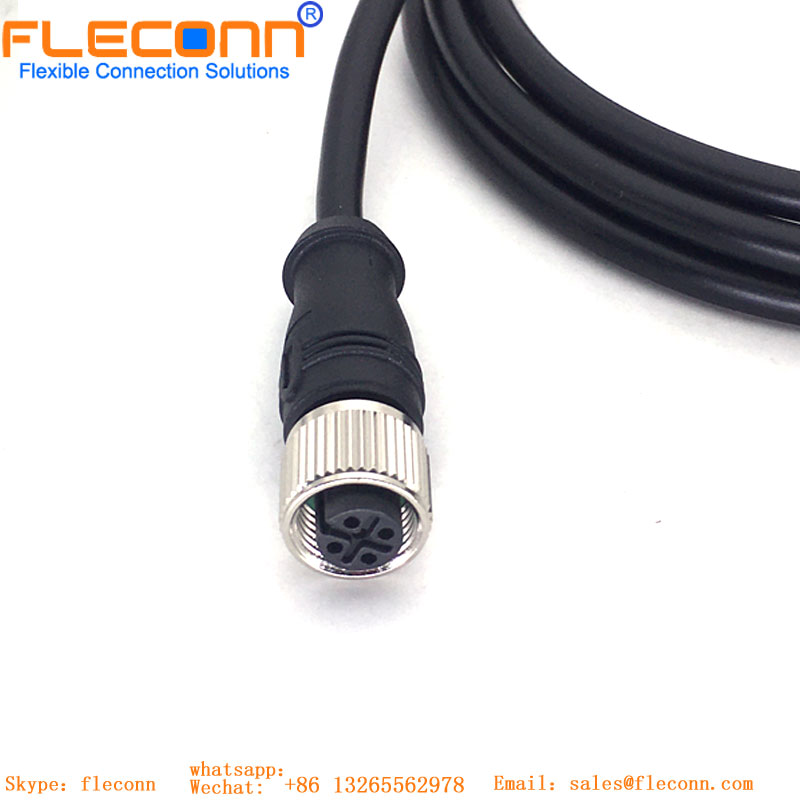

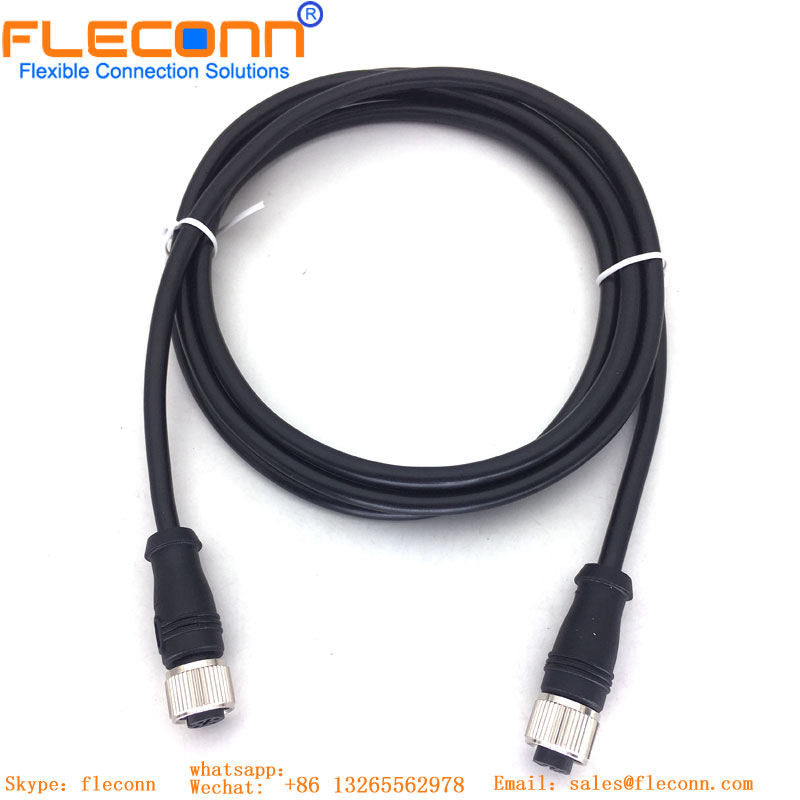

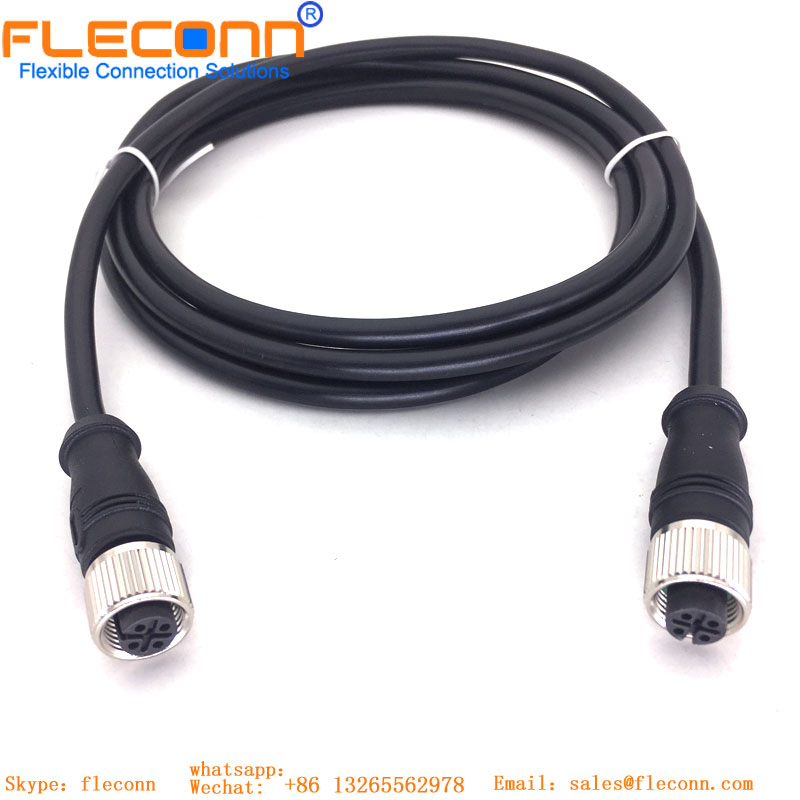

M12 A Coded 5 Pin Cable M12 A Coded 5 Pin Cable M12 A Coded 5 Pin Cable M12 A Coded 5 Pin Cable M12 A Coded 5 Pin Cable M12 A Coded 5 Pin Cable

M12 A Coded 5 Pin Cable

Item No.: M12AF-ST-05P-TPU-2M
Product series: M12 Connector Cable
Connector code: A type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 5P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 5 Pin Cable Description



Fleconn offers a durable M12 A Coded 5 Pin Cable for stable signal and power transmission in industrial automation. With strong overmolding, secure locking, and reliable waterproof sealing, it performs well in harsh environments. Ideal for sensors, actuators, and control systems, this M12 A-coded 5 Pin Cable ensures long-term stability and easy installation. Fleconn provides professional connectivity solutions for efficient and safe industrial applications.



M12 5 Pin Sensor Cable product parameters



Product series: M12 Connector Cable Connector Gender: Female
Connector code: A type Connector core number: 5P
Industry standard: IEC61076-2-101 Connector type: Single head with cable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Wiring method: welding wire
Adapter wire gauge: 20-26AWG Connection method: threaded connection
Connector rubber core: PA66 Injection material: TPU
Rated current: 1A Connector conductor: copper gold plated
Rated voltage: 60V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ
Applicable temperature: -20°- +80°
 Wire cover: PVC/PUR



M12 Cable 5 Pin Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

M12 A Coded 5 Pin Cable

M12 A Coded 5 Pin Cable

M12 5 Pin Sensor Cable

M12 To M12 Cable,5 Pin A-Coded Wateproof Connector cable

M12 Female Cable, 5 Pin Waterproof PUR Jacket Cable Assembly

M12 Cable 5 Pin

M12 5 Pin Cable

Other M12 Connector Cable

FLECONN can provide IP66 waterproof M12 8-bit X-coded female to RJ45 Ethernet cables for power and signal transmission connections.
