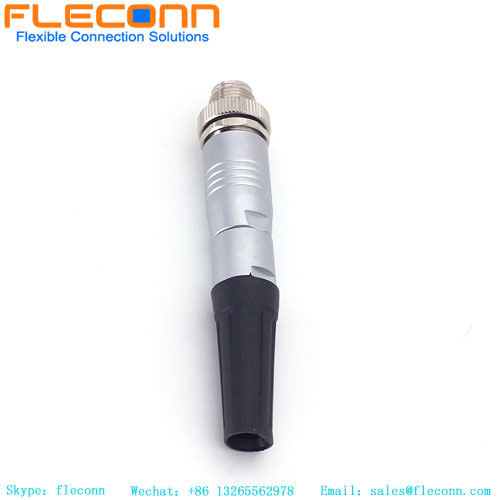

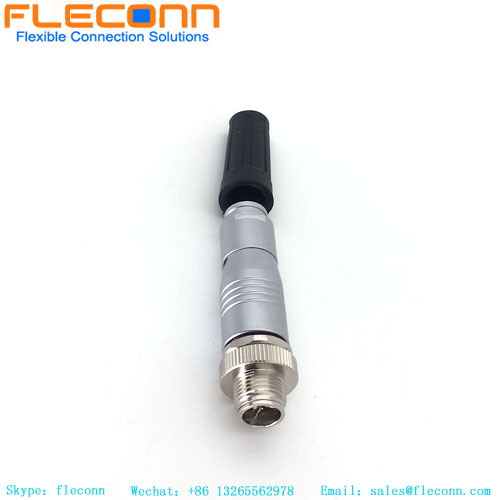

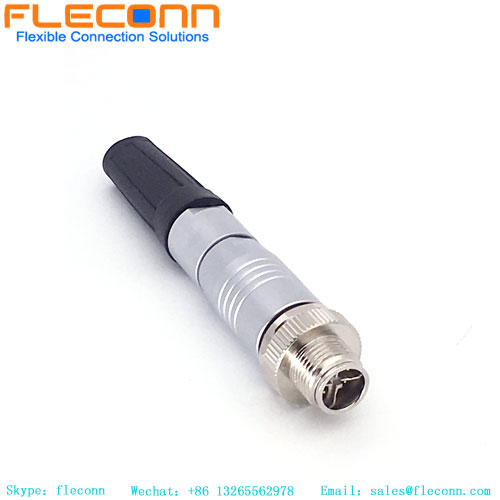

M12 8 Pin X-Coding Male Socket
M12 8 Pin X-Coding Male Socket M12 8 Pin X-Coding Male Socket M12 8 Pin X-Coding Male Socket M12 8 Pin X-Coding Male Socket M12 8 Pin X-Coding Male Socket

M12 8 Pin X-Coding Male Socket

Item No.: 00306
Product series: M12 Connector
Connector code: X type
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 8P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 8 Pin X-Coding Male Socket Product Description



FLECONN, as a professional m12 connector supplier, could supply IP67 / IP68 waterproof 3 pin 4 pin 5 contacts 6 positions 8 pin 12 pin 17 pole male and female m12 connector such as A-coded sensor connector, B-coded fieldbus connector for profibus and interbus, C-coded, D-coded connector for industrial Ethernet, Profinet, Ethernet IP and EtherCat and X-coded high-speed 10Gbit rugged industrial Ethernet connector. These m12 connectors are classified as field wireable/installable/attachable, molding type, panel mounting type and they are widely used in automation sensor and actuator, industry ethernet cable connection.


M12 8 Pin X-Coding Male Socket product parameters



Product series: M12 Connector Connector Gender: Male
Connector code: X type Connector core number: 8P
Industry standard: IEC61076-2-101 Connector type: Field Wireable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 48V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M12 8 Pin X-Coding Male Socket Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


M12 8 Pin X-Coding Male Socket
M12 8 Pin X-Coding Male Socket

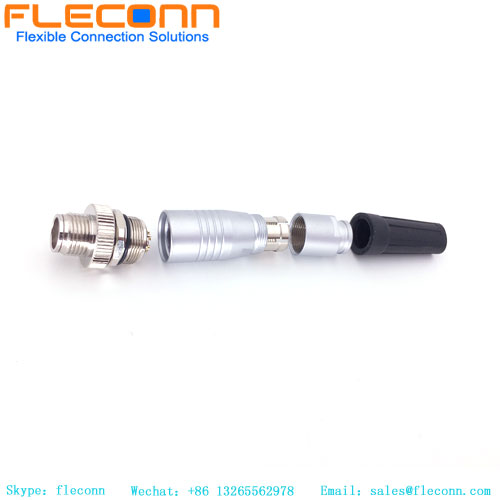

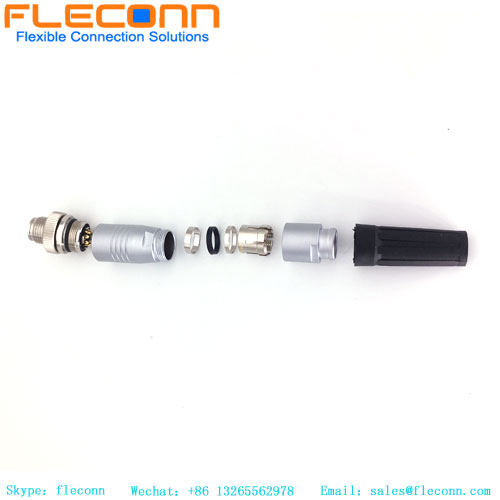

M12 X-Coded 8 Pin Male Assembled Connector Picture

M12 X-Coded Assemblyed Connector

M12 8 Pole Metal Assembled Connector

M12 8 Pin X-Coded Metal Sensor

Other M12 Panel Mount Connector

FLECONN can provide IP66 waterproof M12-X 8 Pin Panel Mount Connector for power and signal transmission connections.
