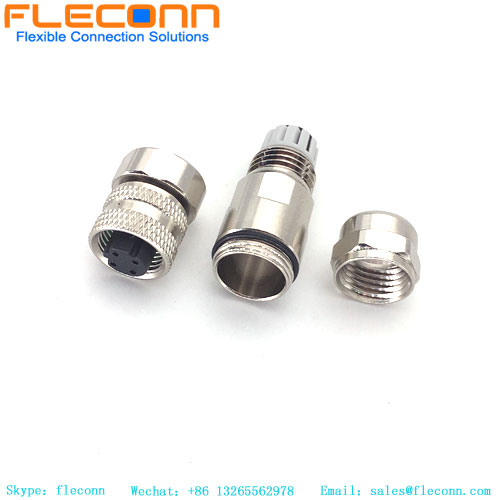

M12 4 Pin Female Assembled Connector
M12 4 Pin Female Assembled Connector M12 4 Pin Female Assembled Connector M12 4 Pin Female Assembled Connector M12 4 Pin Female Assembled Connector M12 4 Pin Female Assembled Connector

M12 4 Pin Female Assembled Connector

Item No.: M12-D-F-FW-ST-4P-04
Product series: M12 Connector
Connector code: D type
Connector Gender: Female
Waterproof grade: IP67
Connector core number: 4P
Plug Guide: Straight
Request Quote
Description Review
Description

M12 4 Pos D-Coding Metal Connector Product Description



FLECONN, as a professional m12 connector supplier, could supply IP67 / IP68 waterproof 3 pin 4 pin 5 contacts 6 positions 8 pin 12 pin 17 pole male and female m12 connector such as A-coded sensor connector, B-coded fieldbus connector for profibus and interbus, C-coded, D-coded connector for industrial Ethernet, Profinet, Ethernet IP and EtherCat and X-coded high-speed 10Gbit rugged industrial Ethernet connector. These m12 connectors are classified as field wireable/installable/attachable, molding type, panel mounting type and they are widely used in automation sensor and actuator, industry ethernet cable connection.


M12 4 Pos D-Coding Metal Connector product parameters



Product series: M12 Connector Connector Gender: Female
Connector code: D type Connector core number: 4P
Industry standard: IEC61076-2-101 Connector type: Field Wireable
Plug Guide: Straight Terminal Material: Copper
Waterproof grade: IP67  Applicable temperature: -20°- +80°
Adapter wire gauge: 22AWG-26AWG Connection method: threaded connection
Rated current: 4A Connector conductor: copper gold plated
Rated voltage: 250V Insulation resistance: ≥100mΩ
Sealing method: O type sealing ring Conductor resistance: ≤5mΩ


M12 4 Pos D-Coding Metal Connector Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

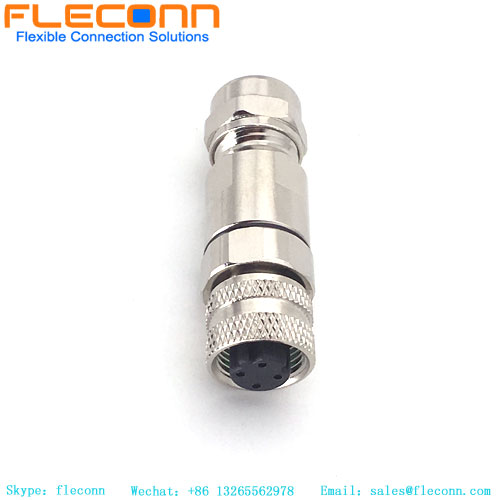

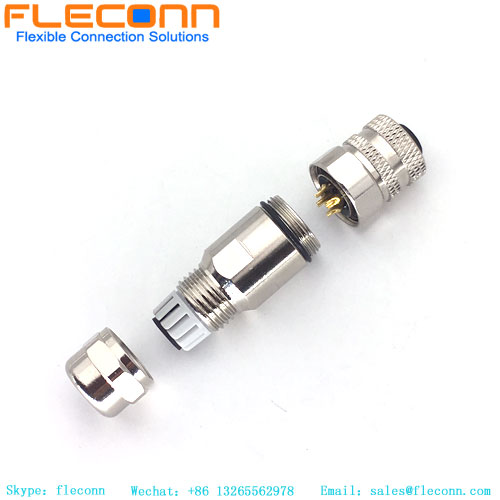

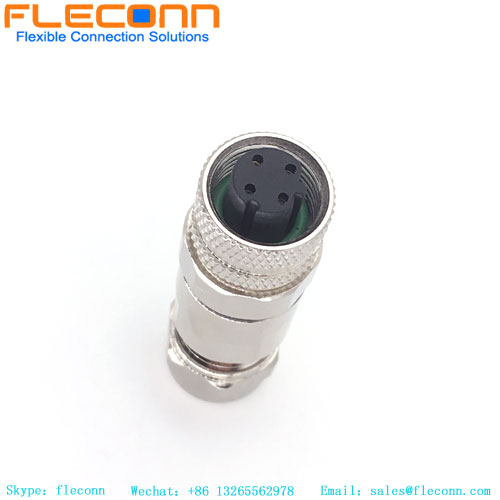

M12 4 Pos D-Coding Metal Connector Picture
M12 D-code 4 Position Female Connector With Shielding Housing


M12 Metal Shield Socket

M12 4 Pin D-Coded Female Connector

M12 4 Pin Female Assembled Connector

M12 4 Pos D-Coding Metal Connector

Other M12 Connector

FLECONN can provide IP66 waterproof M12-X 8 Pin Panel Mount Connector for power and signal transmission connections.
