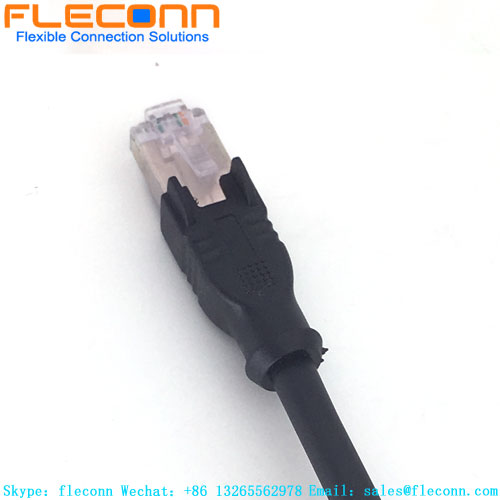

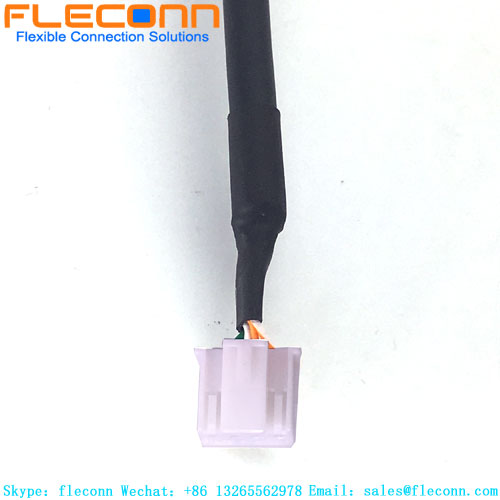

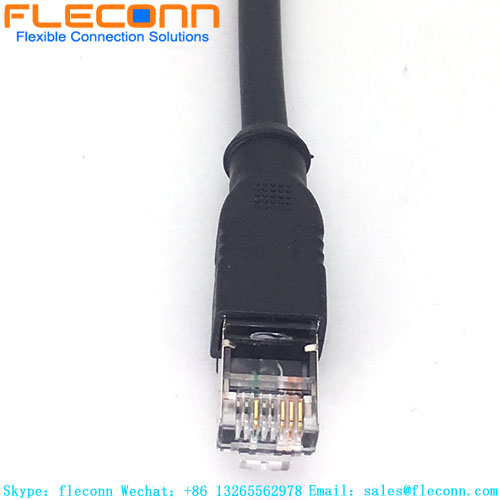

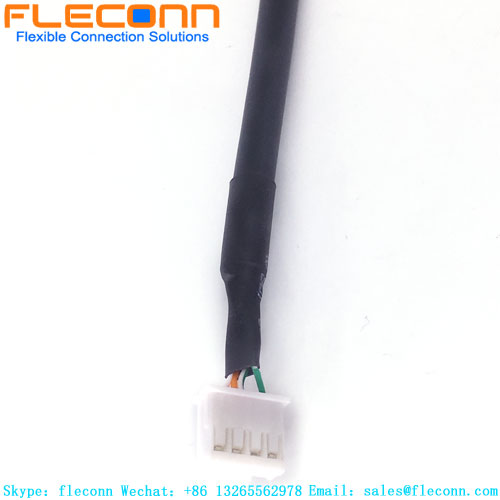

JST XH 2.5mm pitch 4 Pin wire harness cable To RJ45
JST XH 2.5mm pitch 4 Pin wire harness cable To RJ45 JST XH 2.5mm pitch 4 Pin wire harness cable To RJ45 JST XH 2.5mm pitch 4 Pin wire harness cable To RJ45 JST XH 2.5mm pitch 4 Pin wire harness cable To RJ45 JST XH 2.5mm pitch 4 Pin wire harness cable To RJ45

JST XH 2.5mm pitch 4 Pin wire harness cable To RJ45

Item No.: 00194
Product Name: JST 2.5mm to RJ45
XAD Crimp Terminal: SXA-001T-P0.6 / SXA-01T-P0.6 (Plug) / SXAM-001T-P0.6 / SXAM-01T-P0.6 (Receptacle)
Applicable Wire: 28AWG - 22AWG / 24AWG - 20AWG
Insulation OD: 0.8mm - 1.9mm / 1.5mm - 1.9mm
Request Quote
Description Review
Description

JST XH 2.5mm pitch 4 Pin wire harness cable To RJ45



FLECONN can custom 2.5mm pitch JST XAD to RJ45 2 Row wire to wire connector harness for the manufacturers in the fields of Consumer Electronics Devices, Automotive, LED Light, Equipment and Machinery, Industry Automation System, Household Appliances, Medical Devices etc.

JST XH 2.5mm pitch 4 Pin wire harness cable To RJ45 parameters



Product Name: JST XH 2.5mm to rj45 Gender：Female
Type：connection cable Rating voltage: 250V AC DC
Cable Length and Color:Customized Wire/Cable Type：UL
Assembly Configuration：Dual Ended Connectors Material Resin：Nylon
Adapter wire gauge: 24AWG - 18AWG / 26AWG - 22AWG Certificate: RoHS CE
Operating temperature, fixed installation: -25° to +80°C Rating Current: 3.0A (22AWG)
Insulation OD: 1.3mm - 1.9mm / 0.9mm - 1.9mm / 0.9mm - 1.3mm Material Metal：Brass
 Service: Wiring Harness OEM  Insulation resistance: ≥100mΩ


JST XH 2.5mm pitch 4 Pin wire harness cable To RJ45 Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting


JST XH 2.5mm pitch 4 Pin wire harness cable To RJ45
