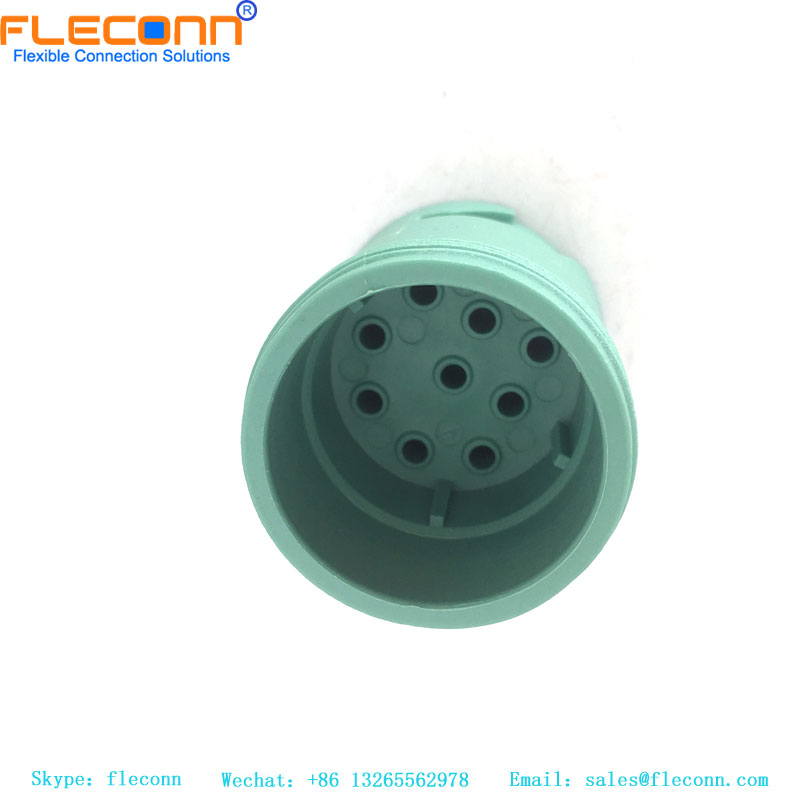

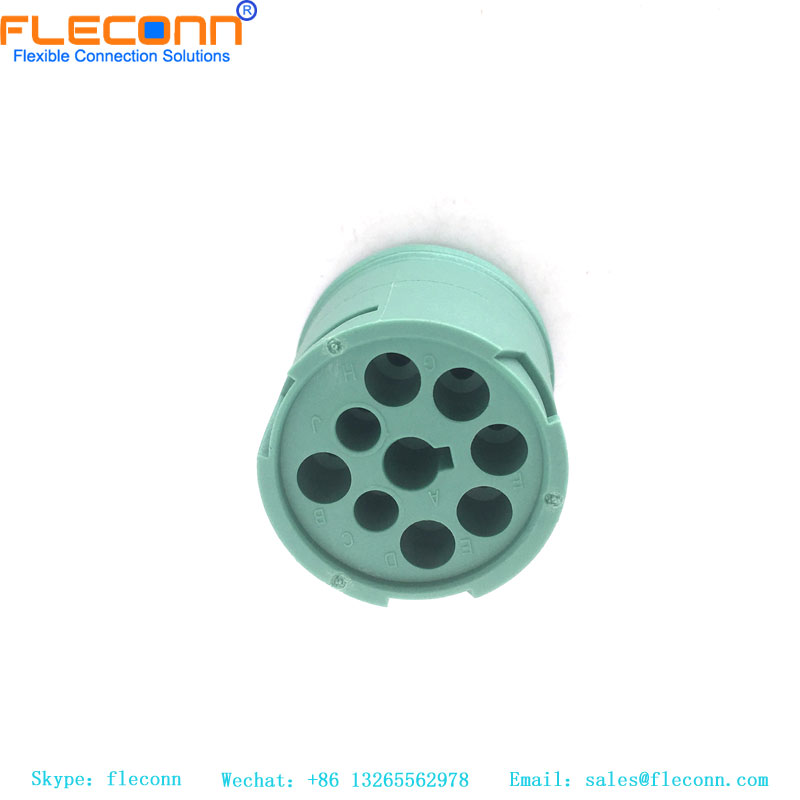

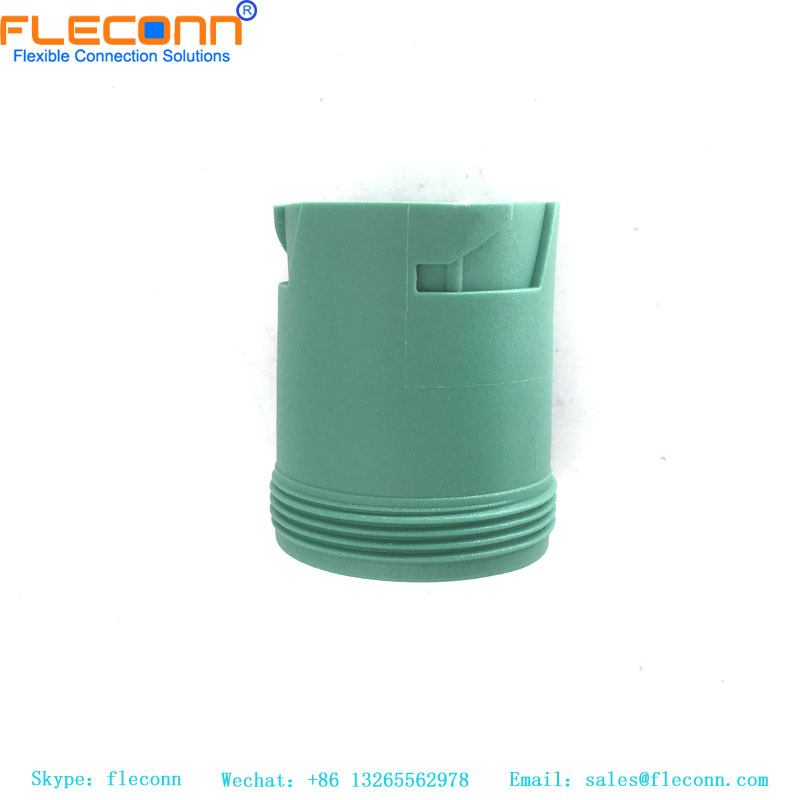

Deutsch HD14-9-1939P-P080 9-Position Receptacle, Male, In Line, Threaded Rear
Deutsch HD14-9-1939P-P080 9-Position Receptacle, Male, In Line, Threaded Rear Deutsch HD14-9-1939P-P080 9-Position Receptacle, Male, In Line, Threaded Rear Deutsch HD14-9-1939P-P080 9-Position Receptacle, Male, In Line, Threaded Rear

Deutsch HD14-9-1939P-P080 9-Position Receptacle, Male, In Line, Threaded Rear

Item No.: HD14-9-1939P-P080
Product Series: Deutsch HD10 Series Connector
Pin Numbers:  9 Pins / 9 Contacts
Gender: Female
Termination Type: Crimping Terminals
Feature: IP67 Water and Dustproof class when mated with compatible connector
Request Quote
Description Review
Description

Deutsch HD14-9-1939P-P080  9-Position Receptacle, Male, In Line, Threaded Rear Description

FLECONN can customize various TE/AMP connector harnesses for customers, aiming to reliably transmit data, power and signals in the worst environment and under the most extreme use conditions. Different types of connector harnesses can be produced according to customer needs, which can reduce the size and power consumption of applications and improve performance..

Technical Data

HD14-9-1939P-P080  DEUTSCH Automotive Housings Substitute, Crimp Termination
Mechanical and Electrical Parameters Reference Standard DIN EN 61076-2-109
Rated Current 0.5A
Rated Voltage 48V
Impulse Voltage 300V
Contact Resistance ≤10mΩ
Insulation Resistance ≥100MΩ
EMC Shielding Shielded
Corrosion Resistance Salt spray test > 48 Hours
Durability >500 mate/unmate cycles
Tightening Torque Recommended: 1.0Nm
Max: 1.2Nm
Materials Male Contact Phosphor Bronze
Contact Plating Gold (Au)
Insert Insulation Body PA66+GF, Black
Screw Nut Brass, CNC
Screw Nut Plating Nickel Plated
Outer Shell Zinc Alloy, Nickel Plated
O-ring Rubber
Cable Gland PA
Cable Gland Nut Zinc Alloy, Nickel Plated
Mated Cable Cable O.D. 6mm~8mm
Wire connection method Crimping terminals
Strip cable jacket length 20~25mm
Peel wire insulation length
Environmental Data Rated Temperature -25~80℃
Protection Degree IP67
Environmental Compliance RoHS2.0 2015/863 Amending Annex
Pollution Degree 3

Deutsch HD14 Series Connector Wire Automotive Conncetor
Deutsch HD14 Series Connector Wire Automotive Conncetor


HD14-9-1939P-P080 9-Position Receptacle, Male, In Line, Threaded Rear
HD14-9-1939P-P080 9-Position Receptacle, Male, In Line, Threaded Rear


HD14-9-1939P-P080 DEUTSCH Automotive Housings Substitute
HD14-9-1939P-P080 DEUTSCH Automotive Housings Substitute
