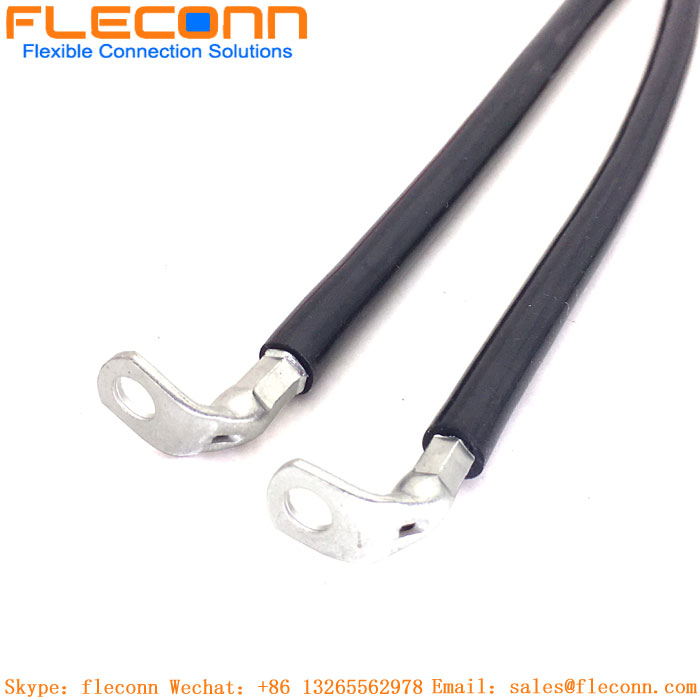

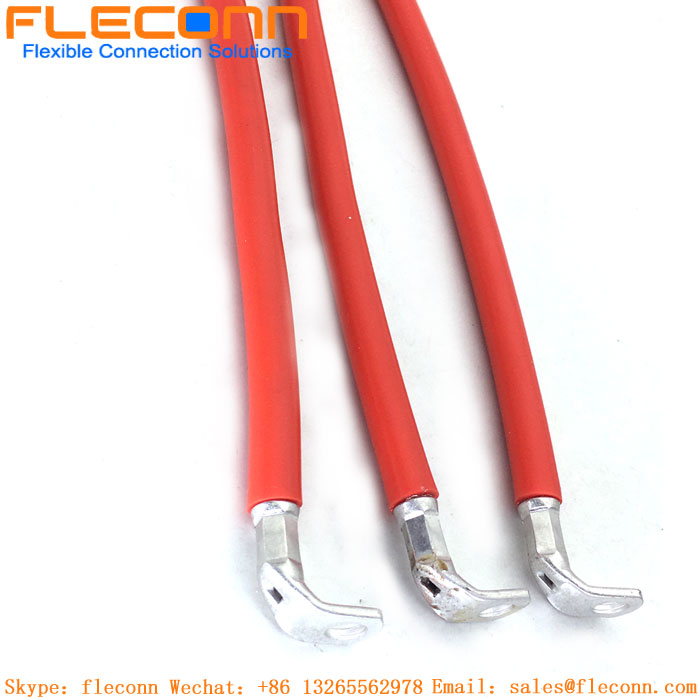

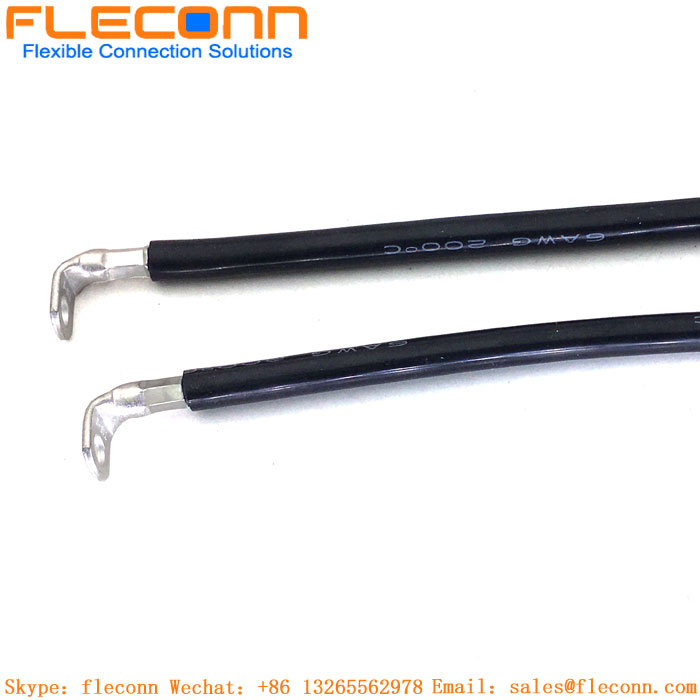

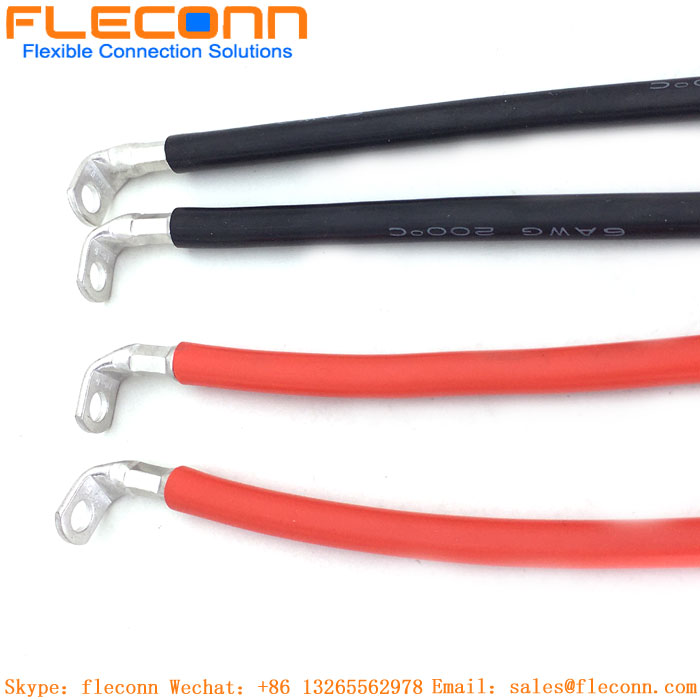

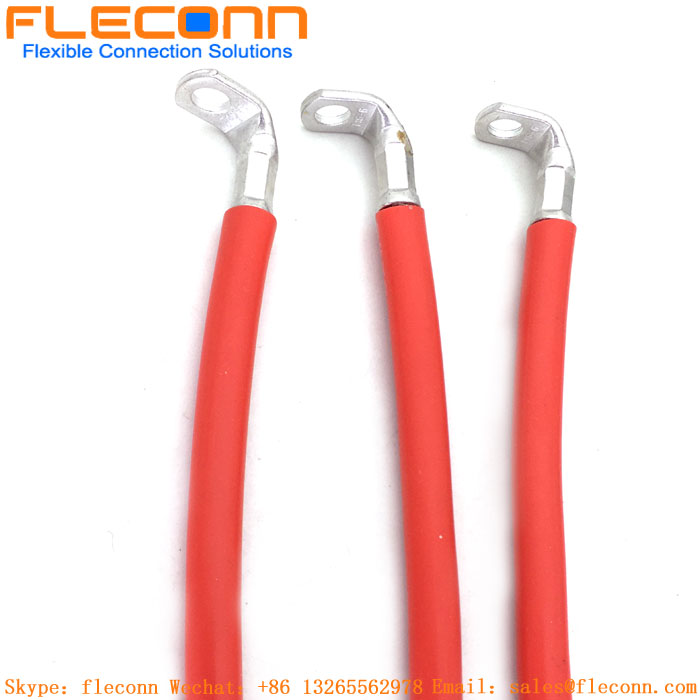

Battery Cable With T90 Series Terminal

Battery Cable With T90 Series Terminal

Battery Cable With T90 Series Terminal

Battery Cable With T90 Series Terminal

Battery Cable With T90 Series Terminal

Battery Cable With T90 Series Terminal

Description Review

Description

Battery Cable With T90 Series Terminal Product Description

Fleconn can customize various specifications of high current terminal connection wires.Terminated battery cables are essential components in electrical and power distribution systems, specifically designed to connect batteries to electrical circuits, engines, or other power-consuming devices. These cables come with pre-attached terminals or connectors, ensuring a secure and efficient electrical connection.

Specifications

PartNo.	Dimension（mm）
PartNo.	φd2	φD	φd	B	L2	L1
GPH90-6/5	5.3	6.5	3.5	10	14	22.5
GPH90-6/6	6.4	6.5	3.5	12	14	24
GPH90-6/8	8.5	6.5	3.5	15	14	27.5
GPH90-6/10	10.5	6.5	3.5	16	14	29.5
GPH90-10/5	5.3	7	4.5	12	16	23
GPH90-10/6	6.4	7	4.5	12	16	24
GPH90-10/8	8.5	7	4.5	15	16	28
GPH90-10/10	10.5	7	4.5	18	16	29.5
GPH90-16/5	5.3	8.5	5.5	12	20	22.5
GPH90-16/6	6.4	8.5	5.5	14	20	24
GPH90-16/8	8.5	8.5	5.5	15	20	28
GPH90-16/10	10.5	8.5	5.5	18	20	31
GPH90-16/12	13	8.5	5.5	19	20	32
GPH90-25/6	6.4	10	6.9	15	21	27.5
GPH90-25/8	8.4	10	6.9	16	21	32.5
GPH90-25/10	10.5	10	6.9	18	21	32.5
GPH90-25/12	13	10	6.9	19	21	34
GPH90-35/6	6.4	12	8.5	17	24	28.5
GPH90-35/8	8.5	12	8.5	17	24	34
GPH90-35/10	10.5	12	8.5	20	24	34
GPH90-35/12	13	12	8.5	22	24	40.5
GPH90-50/6	6.4	14	10	20	28.5	37
GPH90-50/8	8.4	14	10	20	28.5	40.5
GPH90-50/10	10.5	14	10	20	28.5	40.5
GPH90-50/12	13	14	10	23	28.5	42.5
GPH90-50/16	17	14	10	28	28.5	50.5
GPH90-70/8	8.5	16.5	12	24	31	43
GPH90-70/10	10.5	16.5	12	24	31	43
GPH90-70/12	13	16.5	12	24	31	44.5
GPH90-70/16	17	16.5	12	28	31	53
GPH90-70/20	21	16.5	12	30	31	59
GPH90-95/8	8.5	18	13.5	26	35	44.5
GPH90-95/10	10.5	18	13.5	26	35	44.5
GPH90-95/12	13	18	13.5	26	35	46.5
GPH90-95/16	17	18	13.5	28	35	52
GPH90-95/20	21	18	13.5	30.5	35	59
GPH90-120/10	10.5	19.5	15	29	35.5	49
GPH90-120/12	13	19.5	15	29	35.5	49
GPH90-120/16	17	19.5	15	29	35.5	55
GPH90-120/20	21	19.5	15	30.5	35.5	61
GPH90-150/10	10.5	21	16.5	31	40	48
GPH90-150/12	13	21	16.5	31	40	51
GPH90-150/16	17	21	16.5	31	40	56
GPH90-150/20	21	21	16.5	34	40	61.5

Product series: T90 Terminal Cable	Wire Color: Black、Red
Industry standard: IEC61076-2-101	Applicable Temperature：-60°~200°
Plug Guide: Right Angle	Adapter wire gauge: 6AWG
Rated current: 55-75A	Connector conductor: copper gold plated
Rated voltage: 600V~1000V	Insulation resistance: ≥100mΩ

Battery Cable With T90 Series Terminal
