Home > 7/8 Connector Cable
7/8
7/8 7/8 7/8 7/8 7/8

7/8" 3 Pin Male To Female Connector Cable

Item No.: 7/8-M-PUR-RA-3P-2M
Fleconn can provide European standard 7/8" 3 Pin Male To Female Connector Cable for telecommunications infrastructure.
Product series: 7/8 Connector Cable
Connector Gender: Male
Waterproof grade: IP67
Connector core number: 3P
Plug Guide: Right Angle
Request Quote
Description
Description

7/8" 3 Pin Male To Female Connector Cable  Product Description



FLECONN, as a professional connector supplier, could supply IP67 / IP68 waterproof 3 pin 4 pin 5 contacts 6 positions 8 pin 12 pin 17 pole male and female connector Cable . A 7/8 connector Cable  typically refers to a specific type of RF (radio frequency) connector commonly used in telecommunications, broadcasting, and other industries where high-frequency signals need to be transmitted reliably. These connectors are often used in applications such as: Telecommunications、Broadcasting、Wireless Networks、Instrumentation、Industrial Applications、Aerospace and Defense.


7/8 3 Pin European standard Male Cable product parameters



Product series: 7/8 Connector Cable Connector Gender: Male
Connector locking system: screw Connector core number: 3P
Termination: screw clamp Termination: moulded on the cable
Plug Guide: Right Angle Terminal Material: Copper
Waterproof grade: IP67 Applicable temperature: -25°- +80°
Adapter wire gauge: max. 1.50 mm² / AWG 16 Connection method: threaded connection
Rated current: 9.0A Connector conductor: copper gold plated
Rated voltage: 300V Insulation resistance: ≥100mΩ


European standard 7/8" Sensor Connector Cable Applications



●Sensors, actuators, encoders, motors ●Industrial grating light curtains
●Factory automation process control ●Equipment battery, semiconductor
●Package label printing equipment ●Fieldbus: DeviceNet, CANopen, etc.
●Industrial instruments and equipment ●NMEA 2000 ship electronics, rail transit
●EMS circuit board assembly ●LED outdoor display, outdoor LED lighting

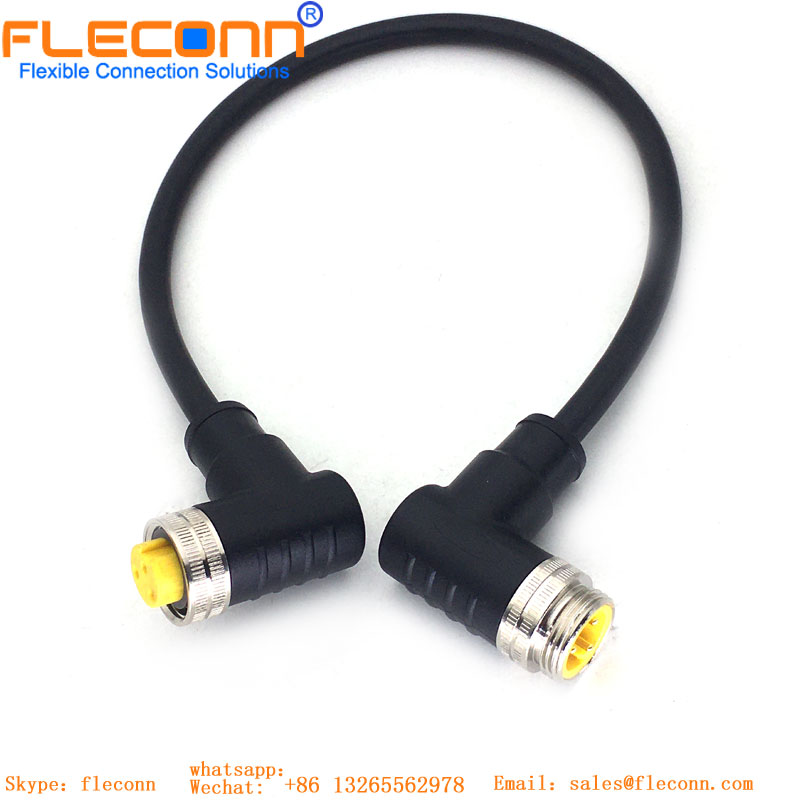

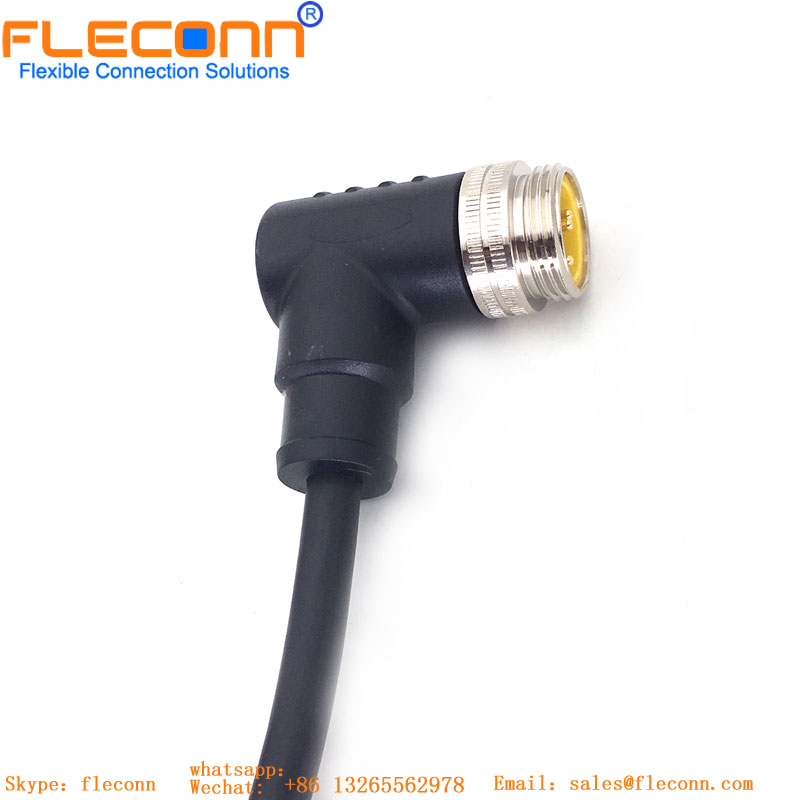

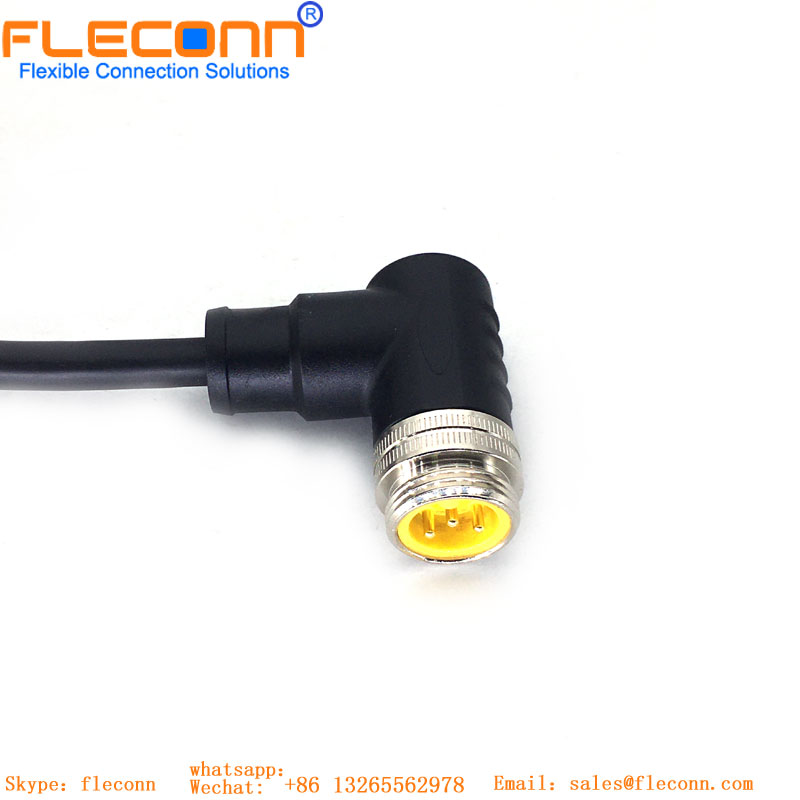

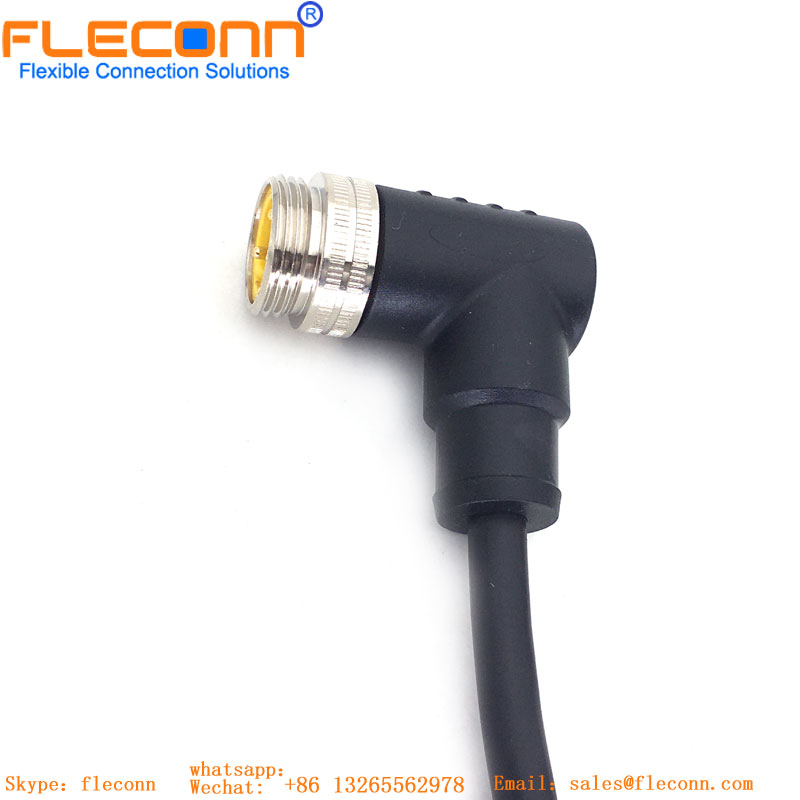

7/8" 3 Pin Male To Female Connector Cable Picture

7/8 3 Pin European standard Male Cable

7/8 3 Pin Male To Female Connector Cable

3 3 Pin Male Connector Cable

7/8 3 Pin Right Angle Connector Cable

7/8 European standard Sensor Connector Cable

Other 7/8 Connector cable
