M-series connectors, including M5, M8, M12, and larger variants, are widely used in industrial automation due to their compact design, rugged construction, and versatility. These connectors are specifically engineered to handle the challenging environments and demanding requirements of automated systems. Here’s an overview of their applications in industrial automation:
1. Common Features of M-Series Connectors in Automation
Compact Design: Small sizes make them ideal for space-constrained applications.
Rugged Build: High resistance to dust, water, vibration, and temperature extremes; often rated IP65, IP67, or higher.
Standardization: Conform to IEC and ISO standards, ensuring interoperability across devices.
Signal, Power, and Data Capabilities: Suitable for transmitting analog/digital signals, power, and high-speed data.
Quick Connect/Disconnect: Enable easy maintenance and system upgrades.
2. Applications of M-Series Connectors in Industrial Automation
(1) Sensors and Actuators
M8 and M12 connectors are extensively used to connect sensors (e.g., proximity, temperature, pressure) and actuators in automation systems.
Application:
Transmit data and power between field devices and controllers.
Provide secure connections in harsh environments (dust, moisture, vibrations).
(2) Fieldbus and Industrial Communication
M12 connectors support industrial communication protocols like PROFIBUS, PROFINET, EtherCAT, and DeviceNet.
Application:
Enable reliable data transfer between devices in fieldbus networks.
Ensure seamless integration of I/O modules, PLCs, and HMIs.
(3) Robotics
Compact M8 and M12 connectors are ideal for robotic arms and mobile robots, where space and reliability are critical.
Application:
Connect servo motors, encoders, and feedback systems.
Handle high levels of mechanical stress in dynamic robot movements.
(4) Vision Systems
M12 connectors are used in machine vision systems, connecting industrial cameras, lighting, and processing units.
Application:
Transmit high-speed data for image processing.
Ensure consistent connections in environments with high EMI (electromagnetic interference).
(5) I/O Modules and PLCs
M-series connectors link I/O modules and programmable logic controllers (PLCs) to sensors and actuators.
Application:
Facilitate modular and scalable system design.
Enable quick connection of multiple I/O points for monitoring and control.
(6) Power Distribution
Larger M-series connectors (e.g., M23) are used to distribute power to machinery and equipment.
Application:
Deliver high currents to motors and heavy equipment.
Offer secure connections for industrial-grade power supplies.
(7) Conveyor and Packaging Systems
M-series connectors power and control conveyor systems, bottling lines, and automated packaging machinery.
Application:
Ensure high-speed and synchronized operations.
Withstand constant motion and vibrations.
(8) Automated Guided Vehicles (AGVs)
M12 connectors support navigation and control systems in AGVs.
Application:
Connect sensors, cameras, and communication modules.
Provide reliable data and power transmission in mobile setups.
(9) Safety Systems
M-series connectors integrate safety devices like light curtains, emergency stop buttons, and interlock switches.
Application:
Ensure secure connections for critical safety circuits.
Minimize downtime with quick-disconnect options.
3. Key Benefits of Using M-Series Connectors
Durability: Rugged connectors ensure long-term reliability in harsh industrial settings.
Standardization: Interoperability with a wide range of industrial devices.
Ease of Maintenance: Plug-and-play design allows for quick replacements or upgrades.
Scalability: Modular systems can be expanded easily by adding connectors.
High Performance: Support high-speed data transfer and power delivery.
4. Specific Connector Types and Their Applications
Connector Type Typical Application Advantages
M5 Connectors Compact sensors and miniature actuators Ultra-compact, ideal for tight spaces
M8 Connectors Proximity sensors, small actuators, robotics Compact and reliable for signal/power

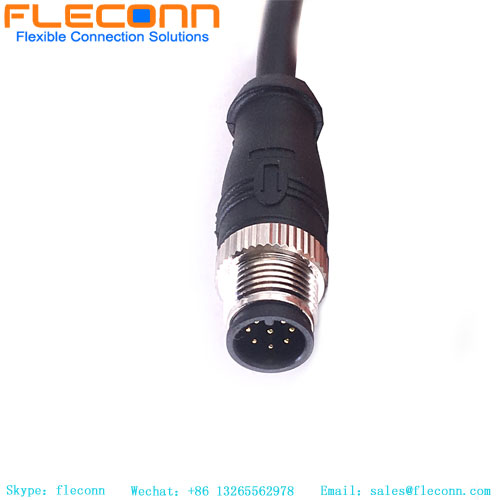

M12 Connectors Fieldbus systems, vision systems, I/O modules Versatile, supports power/data/signals
M23 Connectors Motors, high-current equipment High power-handling capability
Hybrid M12 Combining data and power (e.g., PoE applications) Reduces cabling complexity
5. Industry Examples
Automotive: Use M12 connectors for robotic welding arms and assembly lines.
Food and Beverage: Employ IP69-rated M12 connectors for washdown environments.
Logistics: Use M8 and M12 connectors in conveyor systems and sortation lines.
Conclusion
