M12 Connector

FLECONN can supply IP67 IP68 waterproof rating 2 3 4 5 6 8 12 17 Pin male and female m12 connectors with A-Coded B-Coded D-Coded K-Coded L-Code S-Coded T-Coded X-Coded Y-Coded for industry automation, sensor and actuator systems.

The M12 connector is a circular electrical connector with a 12 mm locking thread and Its design provides ruggedness, vibration resistance, and environmental sealing, making it a global standard for harsh environments.
FLECONN can manufacture 2 3 4 5 6 8 12 17 pin male and female m12 connector with A-Coded B-Coded C-coded D-Coded K-Coded L-Coded S-coded T-coded X-Coded Y-Coded for industry automation, sensor and actuator systems, DeviceNet, Profibus, Interbus, Industrial Ethernet, Machine Vision Camera, Industrial Camera, Profinet, Ethernet/IP and EtherCat, Motor, Frequency-convertors. These m12 connectors have molding type, field wireable/field installable/field mountable type, pcb panel mount type, wire solder-cup terminal panel mount type. There are straight, right angle, T-shape and Y-shape connector available. These M12 male and female connector can reach IP67 IP68 waterproof rating.

M12 Connector Coding Types VS Application Fields

A-Coded → Sensors, actuators, signals (general-purpose).
B-Coded → Fieldbus systems (PROFIBUS, Interbus).
C-Coded → AC power (older, now replaced by S- & K-coded).
D-Coded → Ethernet 100 Mbit/s (Fast Ethernet).
X-Coded → High-speed Ethernet up to 10 Gbit/s.
L-Coded → DC power (up to 16A, 63V).
S-Coded → AC power (up to 12A, 630V).
T-Coded → DC power (up to 12A, 63V).
K-Coded → AC power (up to 16A, 630V).
Y-Coded → Hybrid (data + power in one connector).

M12 Connector Category By Mounting Style

M12 Panel Mount Connector → Installed on device housings or enclosures.
M12 PCB Mount Connector → Directly soldered onto printed circuit boards.
M12 Cable Connector
 -Used for overmolding M12 cable assemblies
 -M12 field-attachable/Field-installable/ M12 Field Wireable Connector for cable assemblies.

m12 panel mount connector A-code 8 pole with pre-assembled wires pigtail

m12 panel mount connector A-code 8 pole with pre-assembled wires pigtail

View More

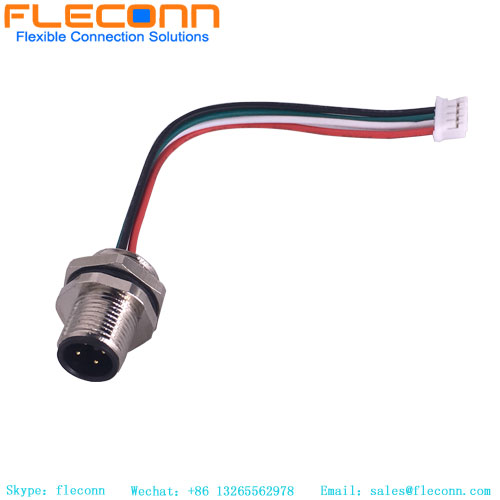

M12 code Ip67 waterproof connector 5 pin cable male wire circular a code plastic panel mount connector

M12 code Ip67 waterproof connector 5 pin cable male wire circular a code plastic panel mount connector

View More
M12 Cable Connector

M12 Cable Connector

View More
M12 B-Coded 4 Pin Female Connector, Plastic Shell

M12 B-Coded 4 Pin Female Connector, Plastic Shell

View More
M12 X-Coded 8 Pin Female Metal Shell Connector

M12 X-Coded 8 Pin Female Metal Shell Connector

View More
M12 X-Coded 8 Pin Male Assembled Connector

M12 X-Coded 8 Pin Male Assembled Connector

View More

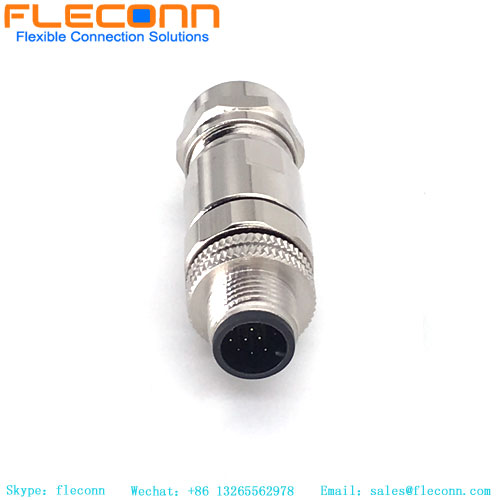

M12 12 Pin Male Connector, A Coded Waterproof Metal Shell Connector

M12 12 Pin Male Connector, A Coded Waterproof Metal Shell Connector

View More

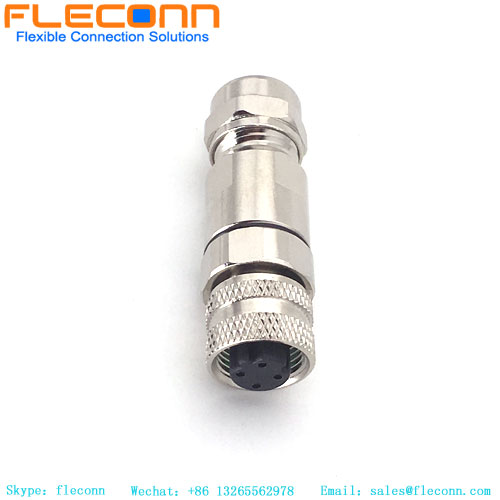

M12 Connector 4 Pin

M12 Connector 4 Pin

View More

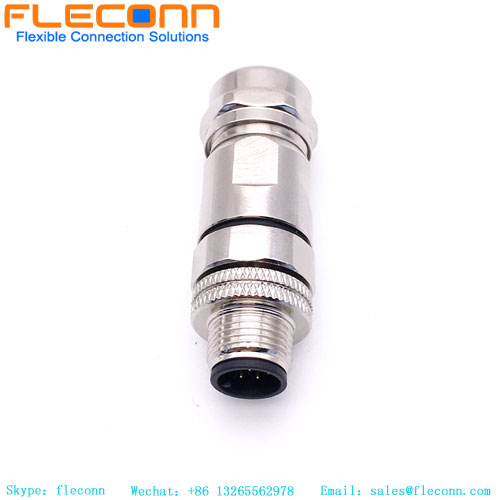

M12 8 Pin Male Connector, A Coded Waterproof Metal Shell Connector

M12 8 Pin Male Connector, A Coded Waterproof Metal Shell Connector

View More

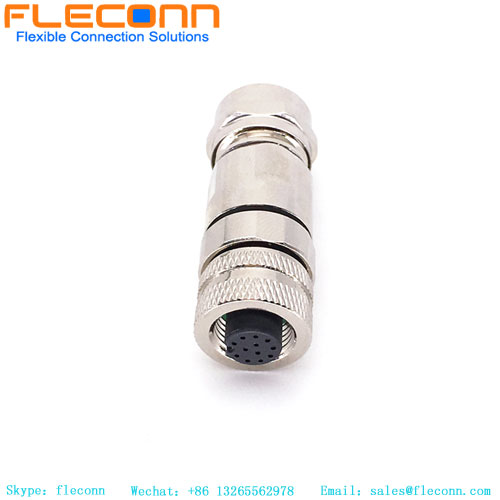

M12 A Coded 12 Pin Straight Female Connector

M12 A Coded 12 Pin Straight Female Connector

View More

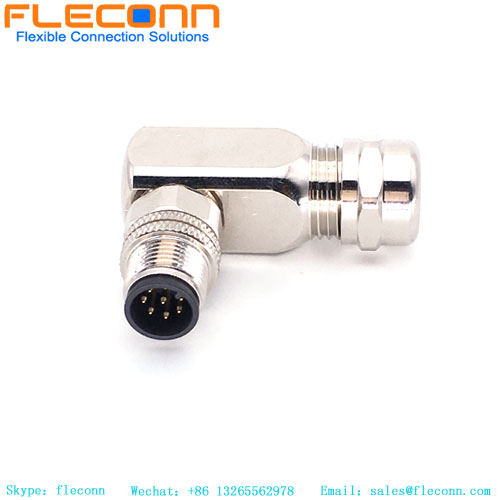

M12 8 Pin Right Angle Male Connector

M12 8 Pin Right Angle Male Connector

View More

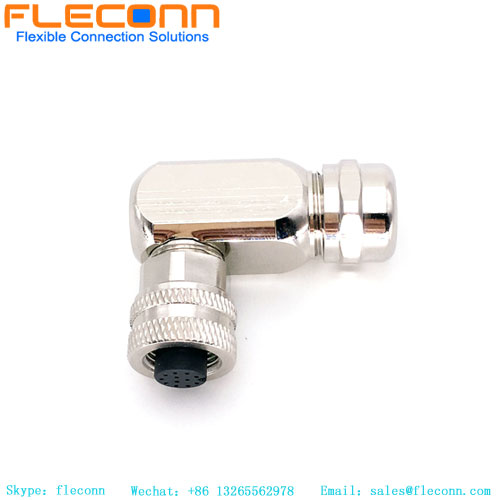

M12 A-Coded 12 Pin Female Right Angle Connector Pinout

M12 A-Coded 12 Pin Female Right Angle Connector Pinout

View More
M12 PCB Panel Mount Connector, 4 Pins, Female, Rear Lock

M12 PCB Panel Mount Connector, 4 Pins, Female, Rear Lock

View More

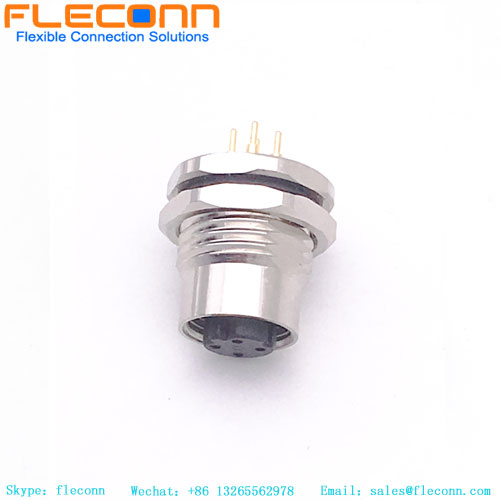

M12 4 Pin D-Coded Female Panel Connector, Front Mounting

M12 4 Pin D-Coded Female Panel Connector, Front Mounting

View More

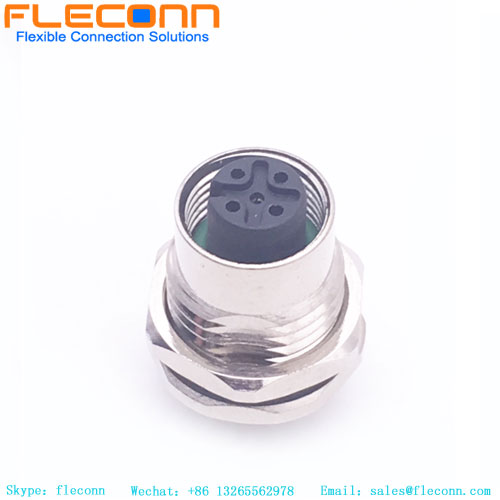

M12 5-Pole PCB Panel Mount Receptacle,Female Socket, Front Panel Mount

M12 5-Pole PCB Panel Mount Receptacle,Female Socket, Front Panel Mount

View More

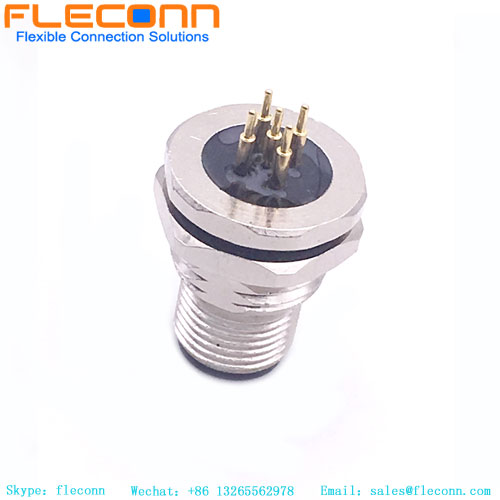

M12 5 Pin A-Coded Male PCB Panel Connector, Rear Mounting

M12 5 Pin A-Coded Male PCB Panel Connector, Rear Mounting

View More

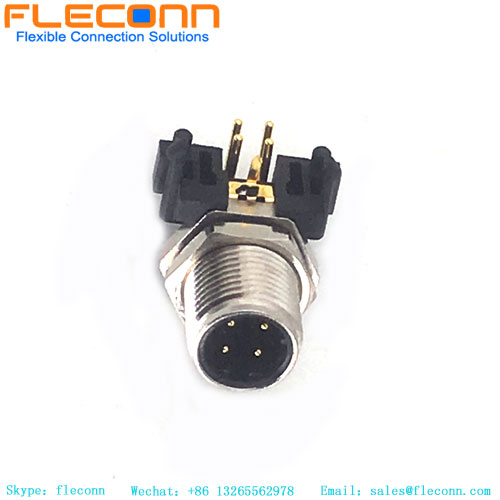

M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector

M12 Panel Mount Receptacle, 4 Pole A-coded Waterproof Connector

View More

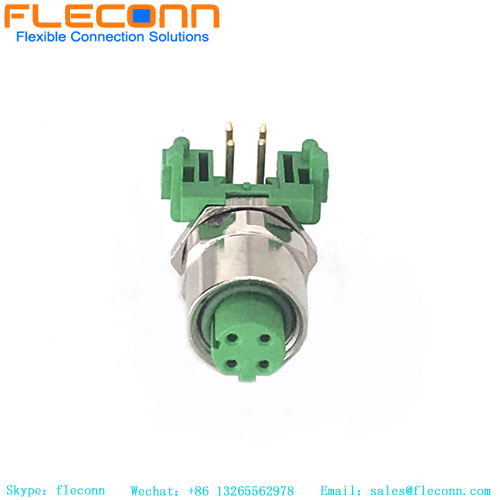

M12 Connector 4 Pin D-Code Female, Green Rubber Core Pcb Plug-In Elbow

M12 Connector 4 Pin D-Code Female, Green Rubber Core Pcb Plug-In Elbow

View More

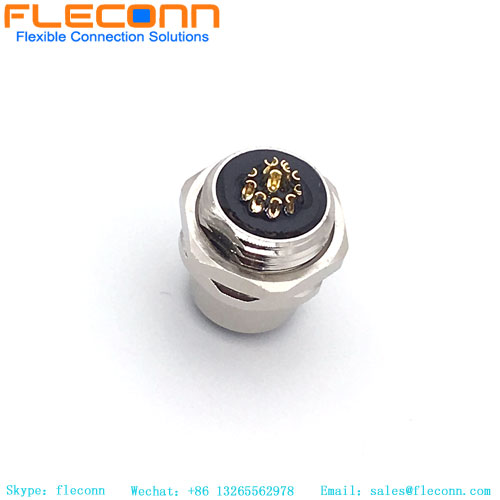

M12 8 Pin A-Coded Connector, IP67 screw waterproof panel mount socket

M12 8 Pin A-Coded Connector, IP67 screw waterproof panel mount socket

View More

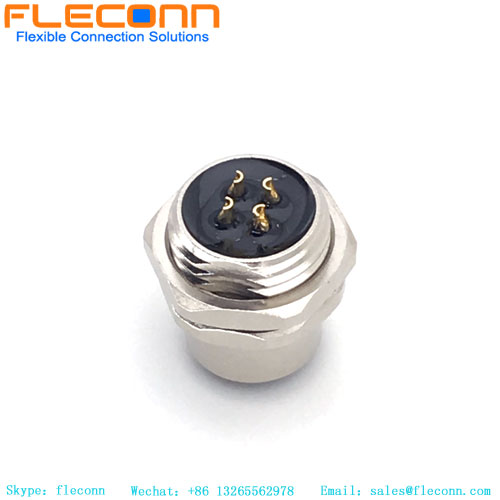

M12 A-Coded 4-Pin Female Connector, Plug-In Rear Lock Sensor Waterproof Connector

M12 A-Coded 4-Pin Female Connector, Plug-In Rear Lock Sensor Waterproof Connector

View More
